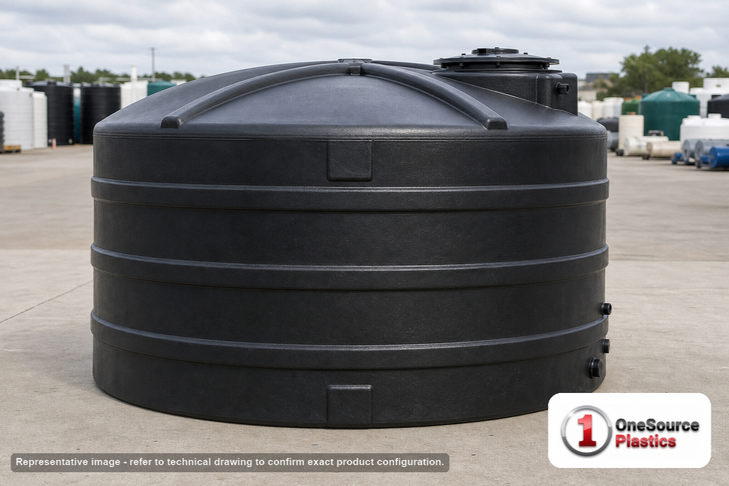

2000 Gallon Black Plastic Water Storage Tank

Where a 90 by 84 inch tank fits

Norwesco makes 2000 gallons in more than one shape, and this one is the middle answer: a 90 inch circle is small enough to land on a pad laid out for something else, and 84 inches is low enough that the manway is reached from a single step rather than a platform. The usual buyers are a home or small farm on a well that cannot keep up at midday, a rainwater system coming off a barn or shop roof, a fire reserve on a rural lot, and a yard that wants a buffer between a slow supply and a steady draw. Our complete buyers guide to this 2000 gallon black tank works through the shape choice in detail, and the fire water reservoir guide for rural sites covers sizing a reserve and keeping it from freezing. If the water is reclaimed rather than fresh, the water reuse storage guide is the one to read.

Full, the tank puts 16,680 lb of water through its floor onto whatever it stands on, and a rotomolded base bears on every inch it touches and nowhere else. The pad has to be flat, level, continuous under the whole 90 inch circle, built wider than the tank rather than to its edge, and shaped so overflow runs away from the rim. Strap or band the empty tank the day it lands; an empty seven foot shell is a sail in wind, and the bands go on and get tensioned before the first fill, not after. Leave a walking gap all the way round so every side can be looked at. Before you settle on the size, run 2000 gallons against your real draw and refill interval in the tank sizing calculator and take the reserve and freeboard advice from the tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. Your valve or pump suction threads straight into it. Support the valve and the first length of pipe on their own so the fitting carries water, not hardware.
2. Inlet. A 1-1/2 inch polypropylene female NPT bulkhead fitting for the fill line from the well, the pump or the downspout filter.
3. Manway. A 16 inch threaded vented manway on top: wide enough to fill from a hose, to drop a float switch through, and to get an arm and a brush inside to clean. The vent lets air in and out as the level moves, so never plug it.

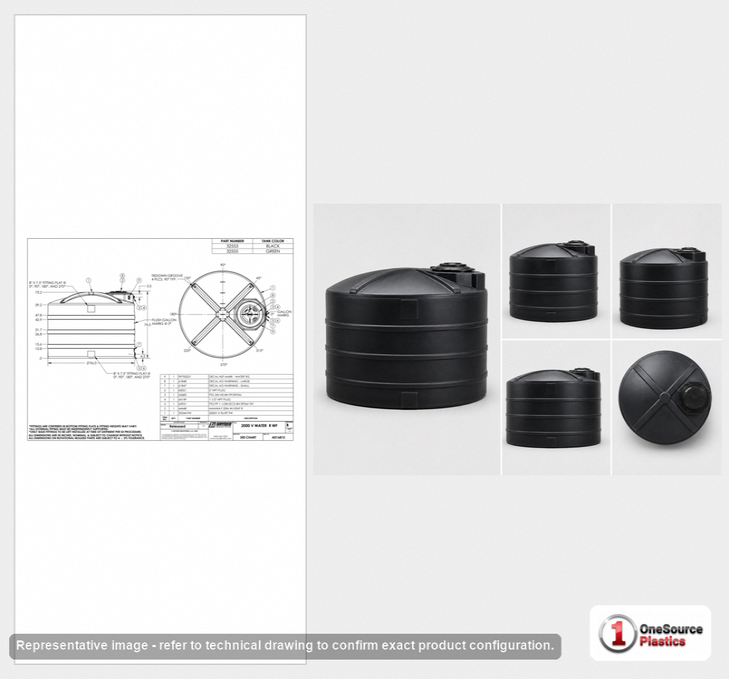

4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the exact outlet and inlet positions for laying out the pipe before the tank arrives.

Sizes and colours nearby

The same tank in dark green, for a site where the tank should blend into a tree line: the 2000 gallon dark green vertical water tank. The other 2000 gallon shape, wider and a little lower: the 2000 gallon vertical water tank, part 41515. One size down, the 1550 gallon dark green vertical water tank; one size up, the 2100 gallon dark green vertical water tank. Every 2000 gallon vertical we stock is on the 2000 gallon vertical water tank page.

Shipping and receiving

The tank ships by LTL freight from Norwesco's Washougal, Washington plant, 90 by 90 by 84 inches and 270 lb on the truck. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote for a job that needs paperwork. A tank this size comes off the truck by hand with two people or by forklift under the pallet, never by a chain around the manway. At the tailgate, check the part number against 44129 on the bill of lading, walk round the tank looking for scuffs that go deeper than the surface, and fill it with water the first time so any problem shows up with something harmless inside.

Questions before you order? Call 866-418-1777.
