2000 Gallon Black Plastic Water Storage Tank

Where a 2000 gallon vertical goes

The buyers are properties that have done the arithmetic on hauling water and decided to stop: a rural home that takes one delivery a fortnight, a ranch running float-fed troughs off one tank and one pump, an orchard or vineyard block holding a night's pumping for a morning's irrigation, a contractor supplying dust control from one point, and remote homes where the fire department asks for a stored supply. At 93 inches across and 80 inches tall the tank is nearly as wide as it is high, which makes it steady in wind and keeps the manway reachable from a short step. The water surface stands more than six and a half feet above the outlet when full, enough to flood any pump and to gravity-feed troughs below the pad. The weight is the thing to respect: full, the tank puts more than eight tons through a 93 inch circle, carried by a moulded floor that bears on everything it touches and nothing else. The base must be flat, level, continuous, engineered and poured wider than the tank; the concrete pad sizing guide gives the framework. Run the overflow to daylight away from the pad, because a tank this size washing out one edge of its own base is the usual farm install failure. Check the volume against your real draw and refill interval with the tank sizing calculator, set the reserve from the tank sizing guide, and read our complete buyer's guide to this 2000 gallon tank. For a rural fire reserve, the fire water reservoir design guide explains how the volume is set and where a polyethylene tank sits in a private fire supply.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. A 2 inch valve, camlock or hose adapter threads straight in. Support the valve and the first length of pipe on their own so the fitting carries water, not hardware; on a tank this size, a flexible connector between the fitting and rigid pipe takes up the movement of the wall as the level changes.
2. Inlet. A 1-1/2 inch polypropylene female NPT bulkhead fitting for the fill line, a float valve or the overflow.
3. Manway. A 16 inch vented manway on top: wide enough to fill from a hose or a pump, drop a float in, and get a hand and a brush inside to clean. The vent lets air in and out as the level changes; never plug it.

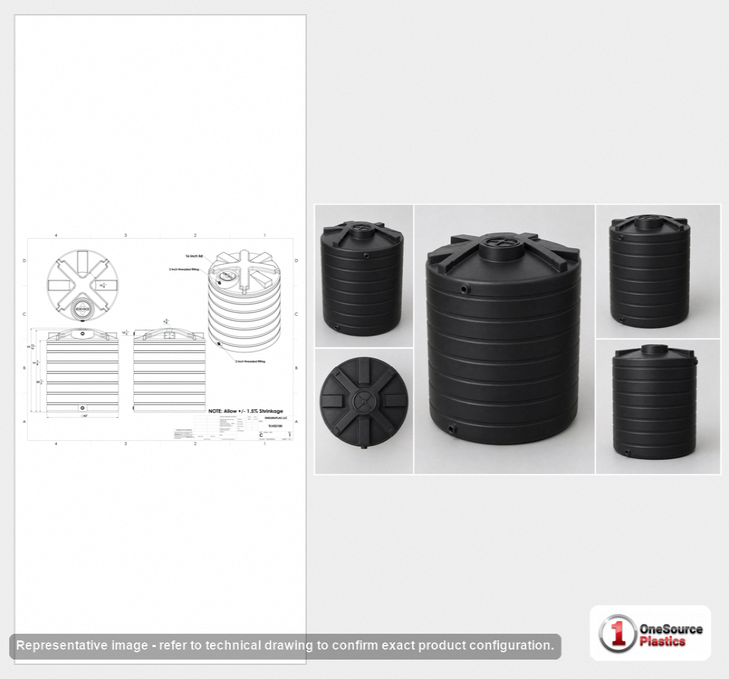

4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the fitting positions and the manway location.

Sizes and colours nearby

The same 2000 gallon shell is also listed as part number 41515, and the capacity comes in dark green, part number 44131. Close below it is the 1550 gallon dark green tank; close above it is the 2100 gallon dark green tank. Every 2000 gallon vertical we stock is on the 2000 gallon vertical water tank page. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL from Norwesco's Burnet, Texas plant, 93 by 93 by 80 inches on the truck at a ship weight of 330 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. A tank nearly eight feet across does not come off on a liftgate; plan on a forklift, a loader or a crew and a clear drive, and tell us about the site when you order. At the tailgate, check the part number against 41514 on the bill of lading and look at the wall, the manway and both fittings for transit damage. Fill it with water the first time and hold it a day before it goes into service, watching the fittings and the base.

Questions before you order? Call 866-418-1777.
