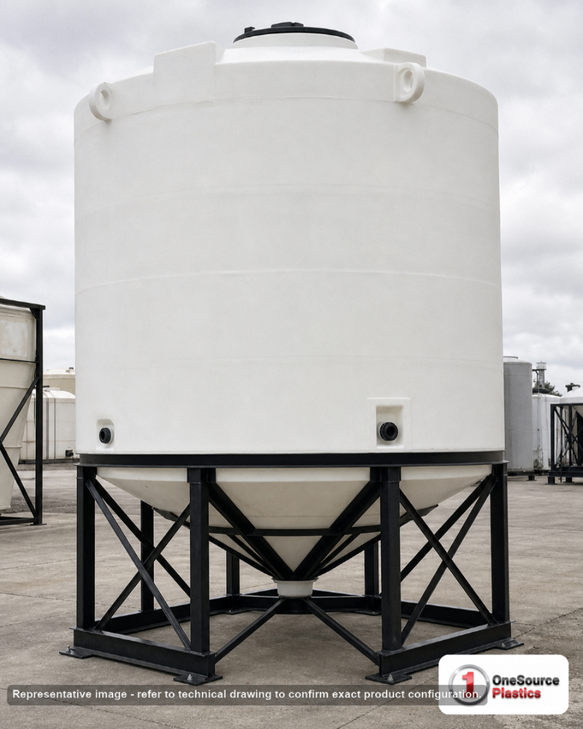

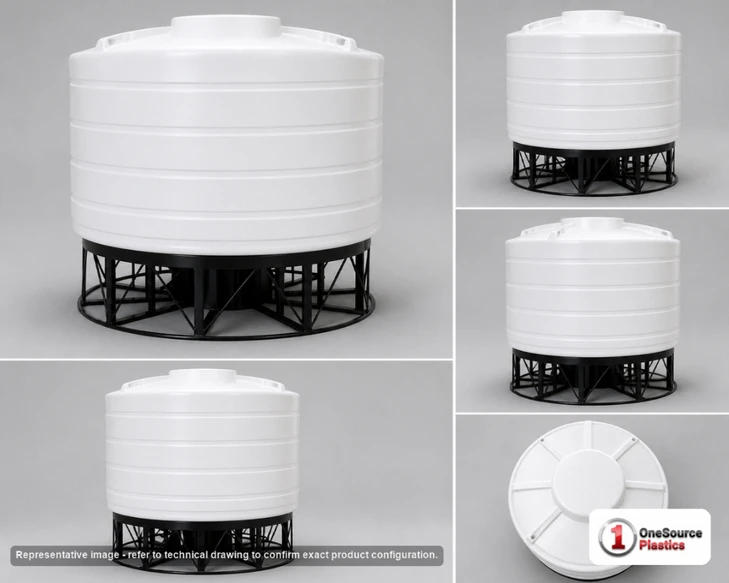

The 6000 Gallon 15 Degree Cone Bottom Tank (MPN N-40931) is a one-piece rotomolded cone-bottom tank with conical 15-degree drain geometry that ensures complete batch evacuation — a design requirement in chemical dosing, aquaculture, dairy CIP, and process slurry handling.
Design
- Integrated steel support stand sized to the tank — no field fabrication, no separate cradle to weld
- Conical bottom geometry ensures complete batch evacuation through the centered drain outlet
- Stand cross-bracing rated for the tank's full-load weight (water at 8.34 lb/gal × capacity for water service)
- Top manway sized for installation of overhead agitator, mixer, or sample-port assembly
- Bottom outlet drain accepts standard polyethylene or PVC bulkhead-fitting connections
Installation
The integrated steel stand sets directly on a level concrete pad with anchor-bolt mounting through the stand foot-plates. Confirm the pad bearing capacity meets the filled-tank load: at 6000 gallons of water service, the filled assembly weighs approximately 50,040 lb (multiply by chemical SG for chemical service). Install a bottom-outlet shutoff valve before commissioning batch service. Plumb the drain to a containment sump or process catch.
Common applications
- Aquaculture hatchery and grow-out feed-water mixing and dosing
- Dairy clean-in-place (CIP) sanitizer staging and recovery
- Wastewater pH-adjustment and chemical-precipitation reaction holding
- Metal-finishing rinse-water collection and chemistry-recovery staging
- Industrial slurry handling where complete drain prevents sediment accumulation
- Pharmaceutical and nutraceutical batch-formulation and ingredient-staging service
Compatibility & compliance
Tank shell meets ASTM D1998 for atmospheric polyethylene service. Steel stand finish (galvanized or powder-coat) is selected for outdoor or indoor environment — specify when ordering. Not rated for pressurized service, vacuum service, or chemical service beyond the OEM compatibility chart for the tank-shell resin.
Shipping
Ships LTL freight from the nearest manufacturing plant. ZIP-specific freight quotes are available through the freight estimator or by phoning 866-418-1777 with MPN N-40931.
3 Year Warranty
