A 360 gallon black polyethylene containment tray to catch what a tank lets go

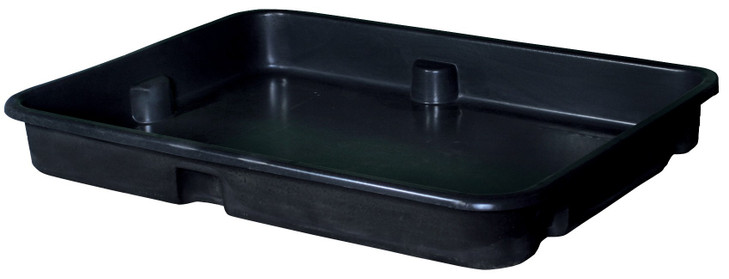

The Norwesco 360 gallon containment tray, part number 42940, is an open black polyethylene basin 93 inches long, 69 inches wide and 16 inches deep, weighing 94 lb empty. A tank, a tote or a bank of drums stands inside it, and if a fitting weeps, a hose splits or a valve is left open, the tray holds the spill instead of the floor or the ground taking it. Norwesco rates it for liquids up to 1.5 specific gravity and to 120 F, states the resin is FDA compliant, and backs it with a 3 year warranty. Norwesco's drawing is linked on this page under Technical Drawing. Three hundred sixty gallons of water weighs about 3002 lb, so the tray needs a flat, continuous surface under all of it if it ever has to hold a full load.
Sizing containment for a tank you already have? Call 866-418-1777 with the tank's capacity and footprint, or price freight to your ZIP and add it to your cart above.
What a 360 gallon tray is for
Secondary containment is the rule most sites follow for fertilizer, chemical and fuel storage: the basin under the tank holds at least the volume of the largest container in it, and often a margin on top for rain if the tray is outdoors. At 360 gallons this tray covers a single tank up to that size with no margin, or a smaller tank with room for rainfall and a leaking hose. The 93 by 69 inch floor takes a round tank up to roughly 69 inches in diameter with its legs or stand inside the wall, or several drums and totes side by side. The 16 inch wall is low enough to step over with a hose and high enough to hold the volume. Which tank fits is a matter of its base footprint, not its capacity; measure the base and compare it to the drawing, and if you are not sure, tell us the tank's part number and we will check. For the volume arithmetic, the tank sizing calculator and tank sizing guide help.
What to check before you buy
- The rule you are meeting. Your state, your insurer or your fertilizer dealer sets the containment percentage. Match the tray's 360 gallons to that number against the tank it will hold, not to the tank alone.
- The footprint. The inside of the tray is what counts. Confirm the tank's base, legs or stand fit inside the 93 by 69 inch wall with room to reach the valve.
- The liquid. Polyethylene handles water, most fertilizers and many common chemicals up to 1.5 specific gravity and 120 F. For anything aggressive, check it against the material before you order.
- Draining it. No drain fitting is factory installed. A tray that collects rain needs a plan: a pump, a drain you add, or a cover. Tell us if you want a bulkhead fitting put on the order.
- The floor. Flat and continuous. A tray spanning a joint or a slope will hold water at one end and leave the tank sitting unevenly.
Sizes nearby
For a smaller tank there is the 140 gallon containment tray; for a larger one, the 500 gallon containment tray. Pick by the tank's base footprint first and the containment volume you have to meet second.
Shipping and receiving
The tray ships LTL under NMFC 156600-02 from the nearer of Norwesco's plants in Fairfield, Texas and Shawnee, Oklahoma. Norwesco's shipping figures for it are 96 by 40 by 16 inches at 184 lb; ask us to confirm how it is packed for your lane before you plan the unloading. The listed price is before freight; the freight cost estimator gives the cost to your ZIP. At the tailgate, check 42940 against the bill of lading, look along the rim and the corners for transit cracks, and set it on its final floor before the tank goes in; a tray is far easier to move empty than with a tank standing in it.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Shawnee, OK; Fairfield, TX. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 42940.
See this tank
Product video. Watch the Norwesco 360 Gallon Plastic Containment Tray in Black video (69 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
