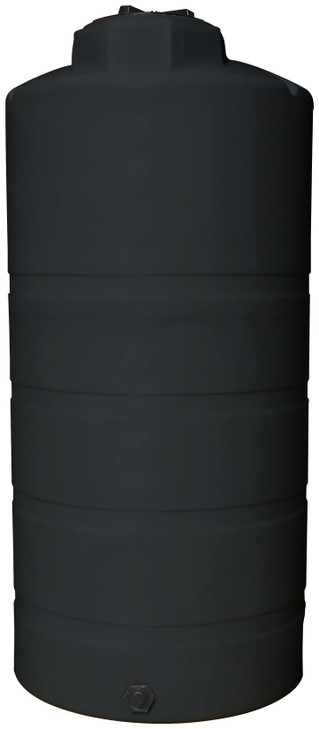

Norwesco 850 Gallon Black Vertical Storage Tank

Where a tall 850 gallon tank goes

This tank keeps 850 gallons on the floor space of a tank half its size by going up: 48 inches across and 118 inches tall, which is nearly ten feet. It is the tank for a narrow side yard, the gable end of a barn, a slot between buildings, or a processing floor where every square foot is spoken for. It needs headroom to match and a way to reach the manway. The jobs are a household or farm water reserve on a slow well, rainwater from a large roof, a sprayer or fertilizer fill point, and a fire or drought reserve on a rural lot. Full of water it weighs 7089 lb on a 48 inch circle, so it needs a flat, continuous, level concrete pad or a sound slab that will not settle unevenly, never soil or gravel alone. A tank this tall must be strapped or braced to a wall or post; empty, it is a sail. Our guide to bearing surfaces under polyethylene tanks covers what the pad has to do and where an engineered slab becomes necessary. For roof water, read the piece on sizing a first flush diverter before you plumb the downspout in.

What goes in it

Water, liquid fertilizer and the treatment and cleaning chemicals that polyethylene handles are the normal loads. Check anything else in our chemical compatibility guide first, and ask us about anything that is not listed. Liquids heavier than 1.5 times water need a heavy duty tank, and nothing hotter than 120 F belongs in it. For a fire reserve, reservoir sizing on remote sites and freeze protection says how much water a plan needs and what keeps it liquid. The tank sizing calculator and tank sizing guide confirm the volume before you order.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. A 2 inch valve, camlock or hose adapter threads straight into it. With nearly ten feet of head above it, a full tank pushes harder on the outlet than a short tank of the same volume, so fit the valve before the first fill and support it and the first length of pipe on their own; never leave the valve hanging on the fitting.
2. Manway. A 16 inch threaded vented manway on top, 118 inches up, so plan a fixed platform or a ladder to use it. It is wide enough to fill from a hose or a pump, to drop a float or a suction line through, and to reach inside to clean. The vent lets the tank breathe as the level changes.
3. Extra fittings. An overflow near the top, a return line or a second draw-off is a bulkhead fitting through the wall. Tell us before the order and we quote it with the tank. Dry-fit, then hand tight plus a quarter turn.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, gives the outlet height and the manway position.

Sizes nearby

The same tank in white, where you want to read the level through the wall: the 850 gallon white vertical tank. One step down: the 750 gallon vertical tank. One step up on the same 48 inch footprint, taller again: the next size of black vertical tank. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL at freight class 300 from Norwesco's Griffin, Georgia; Hanford, California or Shawnee, Oklahoma plant, whichever is nearest. On the pallet it is 48 by 48 by 118 inches and 174 lb, and at that length it travels on its side. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Have two people and a clear path at the tailgate; the empty tank is light but long. Check the part number against 42839 on the bill of lading, look along the full length of the wall for transit scuffs or cracks, make sure the manway lid is on and turns freely, stand the tank on its pad before you do anything else, and fill it with water the first time so any problem shows up with something harmless in it.

Questions before you order? Call 866-418-1777.
