2520 Gallon 15 Degree Plastic Vertical Cone Bottom Tank with Stand

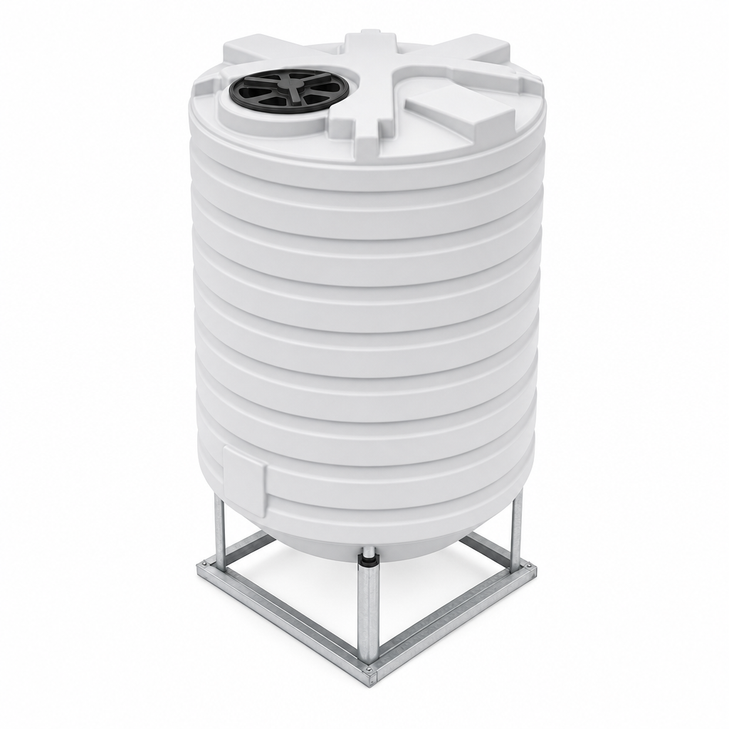

The Enduraplas THC02520K is a 2,520-gallon vertical cone bottom tank with a 15-degree cone and an integrated stand, built for full-drain batching and metering where the tank needs to empty completely between cycles. The body measures 109 inches across the base footprint and the assembly stands 105 inches tall overall, discharging through the bottom apex rather than a side outlet. That 105-inch figure is the installed height including the stand, so verify it against the technical drawing on this page and check it against your doorway, ceiling, and trailer clearance before you buy. If you have been searching for a 2500 gallon cone bottom tank, a 15 degree cone tank with stand, or an elevated batch tank, this is that configuration.

Will it work for your process

The 15-degree cone is a shallower slope than the 30-degree cones on smaller units, which suits free-flowing liquids that gravity-drain cleanly; heavier slurries and settling solids generally want a steeper cone, so match the cone angle to your material before you commit. The stand elevates the discharge so you can valve, plumb, or drop into a tote or pump inlet underneath. Sizing matters here: filled to 2,520 gallons of water this tank carries roughly 21,017 pounds, and the stand and pad below it must be rated for that full load plus the vessel weight. Run your numbers through the Tank Sizing Calculator and the Tank Sizing Guide to confirm both the volume you need and the loaded weight your foundation will see. Review the technical drawing on this page for the bottom-outlet size, cone dimensions, and stand geometry before you design your plumbing.

The mistake to avoid

The specific-gravity rating for this tank is not listed in our launch data, and that is the single most important number for chemical service. A cone bottom holding a dense chemical puts far more stress on the walls and cone than the same tank holding water, because the liquid can weigh well more than 8.34 pounds per gallon. Before you put anything heavier than water in this tank, call us at 866-418-1777 and confirm the manufacturer's specific-gravity rating and resin against your chemical, its concentration, and its temperature. If your chemical exceeds a 1.0 specific gravity, ask about the heavier-wall or XLPE-rated version of this same 2,520-gallon cone bottom rather than forcing this unit past its rating. You can start that check in our Chemical Compatibility Database, but treat the OEM chemical-resistance chart and our team as the final word for a tank this size.

Fittings, gaskets, and color

The bottom-discharge fitting is the critical connection on a cone bottom, and its exact size and layout are on the technical drawing on this page. Whatever valve and gasket you plumb into it must be chemically rated for your specific liquid: an EPDM gasket handles a different chemical set than a Viton/FKM gasket, and neither should default to standard Buna without checking the compatibility chart. Color and opacity are also not specified in our launch data; for chemical service the choice between a black tank for UV and algae control and a natural translucent tank for level viewing affects both service life and how you monitor volume, so confirm the available color with the OEM at 866-418-1777 before ordering.

Freight

At roughly 21,017 pounds full, about 10.5 tons, the THC02520K ships LTL freight on its own, quoted live to your ZIP code rather than baked into the list price. A tank and stand at this footprint and weight will need a forklift for unloading and is unlikely to move on a standard liftgate, so plan your receiving equipment before the truck arrives. Use the Freight Cost Estimator for a delivery number to your point, and note whether you have a forklift or dock. For a broader look at how cone bottom tanks and stands are specified, our buyer's guides on the 550 gallon 20-degree cone bottom and 300 gallon 30-degree cone bottom tanks walk through the same decisions at smaller volumes. Questions on cone angle, resin, gaskets, or stand rating for your application, call 866-418-1777 and we will spec it with you.
