12000 Gallon Vertical Liquid Storage Tank: Complete Buyer's Guide
12,000-gallon white liquid storage tank built for agricultural chemical and fertilizer storage. Manufactured by Norwesco from virgin linear polyethylene (HDPE) rated to handle liquids up to 12.5 pounds per gallon. FDA approved for contact with potable water, ensuring safe storage for drinking water and food-grade liquids.
Specifications at a Glance
Every figure below is pulled straight from the live product record for this exact tank — the same data on the product page, so what you read here and what you buy never disagree.
Standards & Materials
- ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks. Governs wall-thickness and hydrostatic design for vertical rotomolded poly tanks of this class.
- FDA 21 CFR 177.1520 — Olefin polymers. The food-contact regulation the FDA-grade resin in this tank is compounded to meet.
- Specific gravity rating 1.5 — the tank is engineered for liquids up to 1.5× the density of water (water is about 8.34 lb/gal). Confirm your fluid’s SG before storage.
Product Overview
The 12,000 Gallon Vertical Liquid Storage Tank is built for operations that need very high capacity but have limited ground to give it. By going tall — 193 inches, over sixteen feet — on the same 141-inch base used by the 9,000- and 10,000-gallon tanks, it squeezes twelve thousand gallons of chemical into a compact footprint, the efficient choice where pad and containment area are at a premium. It anchors large fertilizer and industrial operations on tight sites.
Norwesco molds the body in a single seamless piece of virgin linear polyethylene rated to 1.5 specific gravity, taking agricultural and industrial liquids to 12.5 pounds per gallon. The translucent natural-white wall reports inventory from the ground and reflects sunlight to keep the contents cooler, with compounded UV inhibitors and a 120 F / 48 C ceiling.
It weighs 2,513 pounds empty and reaches roughly 152,633 pounds full at 1.5 SG — over seventy-six tons concentrated on the modest 141-inch base by the tall profile. The outlet is a 3-inch stainless-steel bolted fitting with a 3-inch reducer and a 3-inch by 5.5-inch siphon, and the 22-inch lid gives interior access. The tank ships with Norwesco's 3-year manufacturing-defect warranty.
Technical Drawing

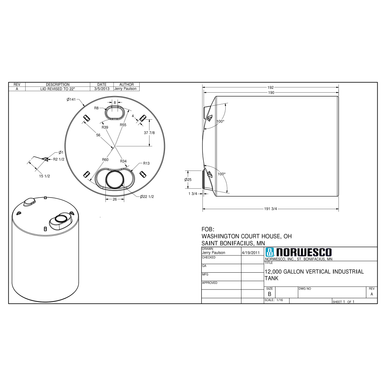

Official Norwesco technical drawing — 12000 Gallon Vertical Liquid Storage Tank
Key Features and Specifications
- 12,000-gallon capacity — sized for agricultural chemical and fertilizer storage
- Constructed from virgin linear polyethylene (HDPE) with 1.5 specific gravity rating — handles liquids up to 12.5 lbs/gal
- 193" tall x 141" diameter — compact vertical footprint
- 2513 lbs empty, approximately 152,633 lbs when full at rated specific gravity
- 3 Stainless Steel Bolted Fitting with 3" Reducer and 3" X 5-1/2" Siphon tube NPT outlet fitting — factory installed and leak-tested
- 22" lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- 3 Year Warranty from Norwesco against manufacturing defects
- Translucent white walls allow visual level monitoring without opening the tank and reflect sunlight to keep contents cooler
- Rated for continuous service up to 120 F / 48 C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Norwesco — a leading name in rotomolded polyethylene tanks
- Large tanks require professional installation. Ensure the pad is level within 1 inch across the full diameter and that all piping connections allow for thermal expansion
- Ships via dedicated freight carrier due to oversized dimensions — contact us for delivery timeline and site access requirements
Installation and Setup Guide
This tank's appeal is footprint efficiency, but that efficiency comes from height, and height concentrates seventy-six tons onto a relatively small base. The foundation and the leveling tolerance both have to answer for that.
Engineered Foundation for a Tall Load
Have a structural engineer design a reinforced concrete slab for roughly 152,633 pounds over the 141-inch footprint, flat within one inch and built as secondary containment. Because the tank is tall on a compact base, leveling is especially critical — a small high spot becomes a lean, and a sixteen-foot tank that leans loads one side of the wall and the bolted fitting unevenly. Cure fully and grade for spill capture.
The Stainless Bolted Fitting
The 3-inch stainless-steel bolted fitting, with its reducer and siphon, is mechanically assembled through the wall and carries the full hydrostatic load of a sixteen-foot column. Install it with even torque and chemistry-compatible gaskets, plumb from it in schedule 80 PVC or stainless, and use the reducer to interface with 2-inch lines where needed. Keep the first foot flexible for thermal movement and support the run independently.
Venting
Install a large pressure/vacuum relief vent in the 22-inch lid, rated for your product and matched to bulk transfer rates. A tall tank draining quickly will pull a hard vacuum on the upper wall if under-vented, so size it generously and keep it screened and clear.
Maintenance and Long-Term Care
A tall 12,000-gallon chemical tank is monitored for foundation soundness, plumb, chemical compatibility, and the integrity of its stainless bolted outlet.
Inspection
- Foundation and plumb: Inspect the containment slab for cracks and settlement and confirm the tall tank stands plumb; a developing lean signals foundation movement and must be corrected before refilling.
- Stainless bolted fitting: Verify even bolt torque and gasket integrity at the outlet, which bears the full sixteen-foot column load — a focused check beyond the routine leak inspection.
- Wall: Read the lower wall for bulging or stress whitening under peak pressure and watch for swelling that flags a compatibility issue with the stored product.
Product Changes
Take the tank offline, drain through the siphon, clean the interior via the 22-inch lid under confined-space procedures, decontaminate per the incoming chemical's specification, and verify the new product on a polyethylene compatibility chart, confirming the bolted-fitting gaskets suit it. There is no drinking-water duty here, so cleaning exists to control compatibility and carryover.
UV and Heat
Years of sun are no match for the compounded UV package; inspect the sun-facing side once a year in high-UV regions. The reflective white finish helps moderate internal temperature and vapor pressure over a tall, large sun-exposed surface.
Alternatives and Comparisons
At 12,000 gallons on a 141-inch base, this tank's whole proposition is height-for-footprint, so the comparison is about how you spend ground versus air.
Tall-on-a-small-base vs. wider tanks: This 193-inch-tall tank fits twelve thousand gallons onto the same footprint as smaller, shorter tanks — invaluable where pad and containment area are limited. The trade-off is a high center of gravity that demands a precisely level foundation and adds height-access challenges. A wider, shorter tank of similar volume would be more stable and easier to service but would need substantially more ground and containment. Choose this tall tank when site area is the binding constraint and you can manage the height.
Other 12000-Gallon Options
Frequently Asked Questions
How long will the 12000 Gallon Vertical Liquid Storage Tank last?
On an engineered, level containment foundation and within its 1.5 SG and 120 F ratings, this tank readily serves 15 to 20 years. The compounded UV package and seamless shell are built for it, and the stainless bolted fitting endures with maintained torque and gaskets. A foundation that keeps the tall tank plumb and compatible chemistry decide the rest.
What chemicals can I store in this tank?
At its 1.5 specific-gravity rating it stores most liquid fertilizers, crop-protection chemicals, and industrial solutions to 12.5 pounds per gallon. Check every product on a polyethylene compatibility chart and confirm the bolted-fitting gaskets suit it; the resin handles many acids and bases but not certain solvents and oxidizers. No fuels or flammables. This is a chemical-service vessel, not a drinking-water tank.
What kind of foundation does a 12000-gallon tank need?
A full 12,000-gallon tank weighs about 152,633 pounds at 1.5 SG — over seventy-six tons concentrated on a compact 141-inch base by the tall profile. That requires a reinforced concrete slab engineered for the load, flat within one inch, and serving as secondary containment. Precise leveling is especially important because the tank is tall.
Does this tank come with a warranty?
Yes. Norwesco's 3-year warranty covers manufacturing defects in materials and workmanship under normal use, excluding damage from incompatible chemicals, exceeding the rated density, an inadequate or unlevel foundation, or impact. Retain documentation and photographs of the engineered installation.
Can I install this tank underground?
No. A tall vertical tank is engineered for above-ground service and cannot resist soil pressure; burial would collapse it and void the warranty. Below-grade storage requires purpose-engineered reinforced structures, not an above-ground poly tank.
Buying Considerations
Three commitments come with this tall 12,000-gallon tank. First, the engineered containment foundation: a reinforced slab sized for seventy-six tons, especially true to level since the tall profile punishes a tilt, and curbed for containment. Second, access and overhead — the sixteen-foot shell ships oversized, needs a crane to set, and requires height-safe access for service. Third, the stored product, checked on a polyethylene compatibility chart and against the bolted-fitting gasket material. Listed at $18,958.22 before freight, on a dedicated carrier to your ZIP.
