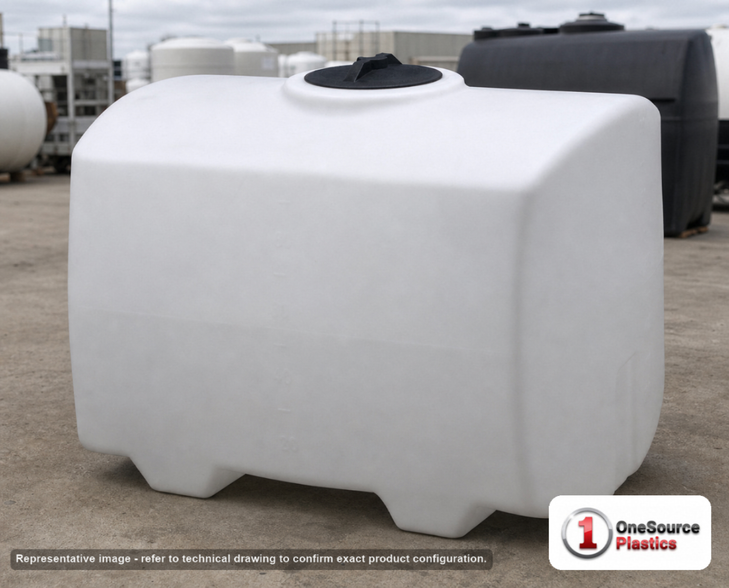

A 150 gallon pest control operator tank with a 16 inch manway
The Norwesco 150 gallon pest control operator tank, part number 42836, is a white polyethylene tank 48 inches long, 37 inches wide and 29 inches tall, weighing 64 lb empty. It is the mix and carry tank for a pest control, lawn care or termite service truck, low enough to ride in a pickup bed or a van under a cap, with a flat base that sits on the deck without a cradle. What sets this version apart is the opening: a 16 inch threaded vented manway on top, wide enough to get a hand, a brush and a light inside to clean the tank properly between products. No outlet fitting comes installed, so the outlet goes where your pump and reel layout wants it. The tank is rated for liquids up to 1.5 specific gravity, which is 12.52 lb per gallon, with a service limit of 120 F; 150 gallons of water weighs 1251 lb. Norwesco backs it with a 3 year limited full replacement warranty per its 2024 liquid storage catalog.
Building a spray rig? Call 866-418-1777 with the truck and the pump you are using, or get freight to your ZIP and add it to your cart above.
On the truck
At 48 by 37 inches the tank sits across a full size pickup bed or along the floor of a service van, and at 29 inches tall it clears most bed caps; measure the opening and the height under the cap, and allow for the manway cap on top. Full of water it weighs about 1300 lb with the tank, so the vehicle's payload, not the tank, is the limit on a half ton truck. Strap it over the body with the straps clear of the manway, and give it a lip or a frame to sit against so it cannot slide under braking. Norwesco builds the same tank in two other sizes for the same trucks: the 100 gallon pest control operator tank for a smaller rig and the 200 gallon pest control operator tank for a longer route. For the volume, the tank sizing calculator and tank sizing guide turn a day's stops into gallons.
What goes in it
Diluted pesticide, herbicide and termiticide mixes, liquid fertilizer and clean rinse water are the normal loads, and polyethylene handles all of them. Check any concentrate or solvent carrier in our chemical compatibility guide before it goes in. Keep the liquid under 120 F. The wide manway is the reason to buy this version if you switch between products: a tank you can reach into gets cleaned, and a tank that gets cleaned does not carry last week's herbicide onto this week's lawn.
Openings and fittings
- Manway. A 16 inch threaded vented manway on top. It is the fill, the vent and the cleanout together. Keep the cap on and tight on the road; it is the vent, so never seal it with anything else.
- Outlet. None installed. Tell us the pump you are feeding and where the suction runs, and we quote a bulkhead fitting of the right size for the tank's low end; a bulkhead fitting needs a flat area of wall at least as wide as its flange.
- Agitation and return. If your pump returns a bypass to the tank for agitation, that is a second fitting, usually high in the wall. Plan both before the order so they arrive together.
- Drawing. Norwesco's drawing for this tank is linked under Technical Drawing on this page and shows the flat areas where fittings can go.
The other 150 gallon version
Norwesco also builds the 150 gallon pest control operator tank with an 8 inch lid, part number 40669. It is the lighter tank, it ships by UPS, and it suits an operator who runs one product and rinses through the lid.
Shipping and receiving
This version ships LTL on a pallet, 48 by 37 by 29 inches and 109 lb packed, under NMFC 156600-03, from Norwesco's Griffin, Georgia or Lancaster, Ohio plant, whichever is nearer. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. If you are ordering fittings with it, put them on the same order so they arrive together. At the tailgate, check 42836 against the bill of lading, look the tank and the manway cap over for transit damage, and fill it with water once in the driveway before it carries a mix, so the fittings prove tight with something harmless in it.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Griffin, GA; Lancaster, OH. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 42836.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the Norwesco 150 Gallon Plastic Pest Control Operator Tank in White video (64 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
