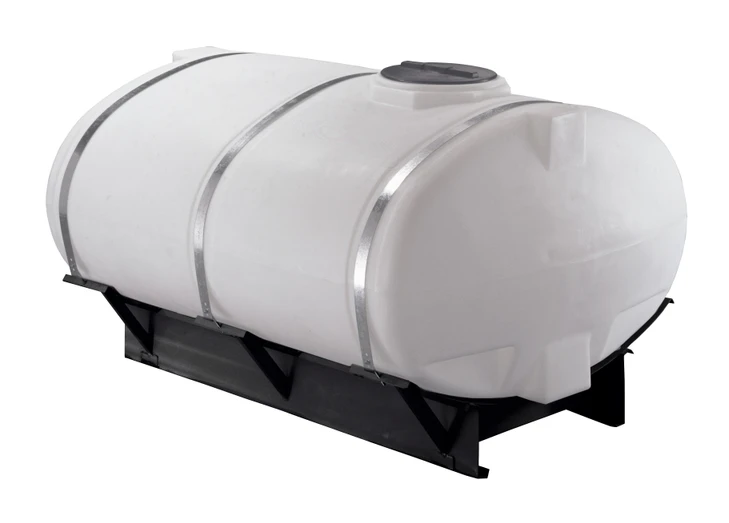

A 750 gallon white elliptical cradle tank with a full 2 inch outlet
The Norwesco 750 gallon horizontal elliptical cradle tank in white, part number 40329, is a polyethylene tank 88 inches long, 69 inches wide and 48 inches tall, weighing 219 lb empty. The elliptical cross section keeps the centre of gravity low and the manway within reach, which is why the larger cradle tanks go on nurse trailers, sprayer frames and truck decks where a round tank of the same volume would ride too high. It comes with a 2 inch polypropylene female NPT bulkhead fitting at the outlet and a 16 inch threaded vented manway on top. Norwesco rates it for liquids up to 1.5 specific gravity, which is 12.52 lb per gallon; 750 gallons of water weighs 6255 lb. The resin is FDA compliant per Norwesco and the service limit is 120 F. White lets you see the level through the wall.
Building a nurse trailer? Call 866-418-1777 with the deck and the pump, or get freight to your ZIP and add it to your cart above.
Where it goes
A cradle tank has no legs. It is shaped to sit in a cradle or saddle that follows its curve, and that frame carries the load to the deck or the chassis. No cradle is listed with this tank; if you are building the mount, work from the Norwesco drawing linked on this page under Technical Drawing, and if you want us to source a cradle, say so when you call. At 88 by 69 inches it takes most of the width of a trailer deck, and at 48 inches tall the manway is reached from the deck. Full of water the tank and its load come to more than three tons, and more with fertilizer, so the trailer's axle and tongue ratings decide this, not the tank. Strap through the cradle, never over the manway. The tank sizing calculator and tank sizing guide help if 750 gallons is a guess rather than a number you have worked out.
What goes in it
Liquid fertilizer, water and the crop and treatment chemicals that polyethylene handles. Check the product against our chemical compatibility guide before the first fill; the entries cradle tank buyers ask about most are urea solution, DEF, calcium chloride, magnesium chloride and sodium hypochlorite. Liquids heavier than 1.5 times water need a heavy duty tank, and nothing hotter than 120 F should go in.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed. Your valve, camlock or pump suction threads straight in, and 2 inches is the size a transfer pump wants. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top: wide enough to fill from a hose or a nurse line, to drop a float in, and to get a hand and a brush inside to clean.
- Drawing. Norwesco's drawing, under Technical Drawing on this page, gives the fitting position and the curve of the shell for building or matching a cradle.
Sizes nearby
One size down in the same shape: the 500 gallon elliptical cradle tank in white. If you would rather have legs than a cradle, the 925 gallon horizontal leg tank in black with fitting installed sits on a deck on its own. The cradle you build or buy is specific to one shell, so compare the drawings before you choose.
Shipping and receiving
The tank ships LTL under NMFC 156600-02 from Norwesco's Lancaster, Ohio or St. Bonifacius, Minnesota plant, whichever is nearer, at 88 by 69 by 48 inches and 219 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote. At the tailgate, check 40329 against the bill of lading, look at the outlet and the shell for transit damage, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: St. Bonifacius, MN; Lancaster, OH. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40329.
See this tank
Product video. Watch the Norwesco 750 Gallon Horizontal Elliptical Cradle Tank in White video (68 seconds) with dimensions, fittings and shipping notes.
