12,500 gallons in black at 1.9 specific gravity, sixteen and a half feet on a 142 inch base

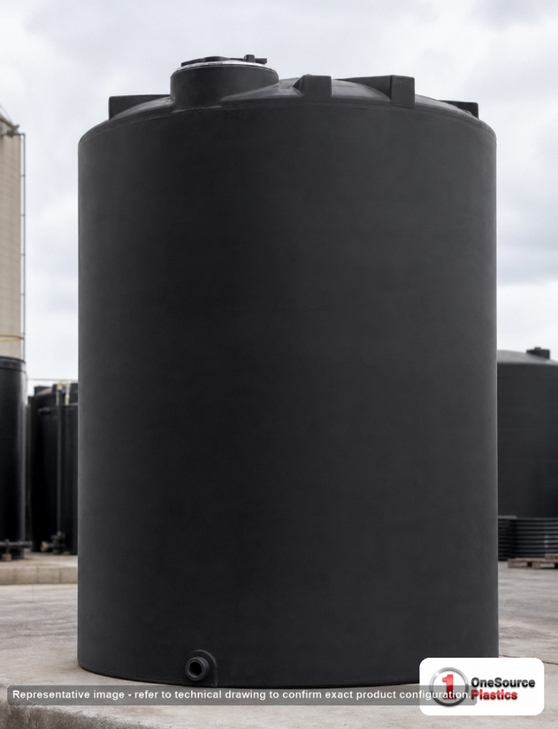

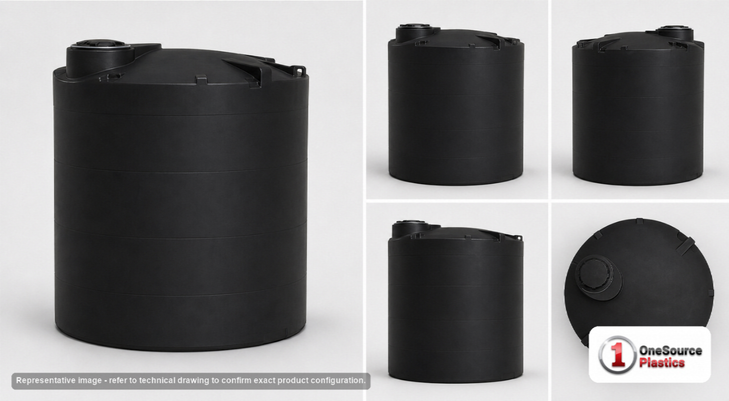

The Snyder 5350000C34 is a black polyethylene vertical storage tank, 142 inches across and 198 inches tall, holding 12,500 gallons at 3,100 pounds. It takes two and a half tankers on a twelve foot circle, with the 18 inch threaded, vented manway at sixteen and a half feet, and the black wall keeps light off a load that size: water stays clear of algae through a whole summer, and a light-sensitive chemical keeps its strength. Its wall is rated for a specific gravity of 1.9, or 198,075 pounds of contents against 104,250 for water, the wall for concentrated acid, ferric and the heavy brines at strength. A 3 inch polypropylene female NPT bulkhead outlet, a 3 year warranty, and freight at class 300 from Lincoln, Nebraska.
Ordering for a plant or a bid? Request a written quote with freight to your ZIP for the file; a single 12500 gallon tank goes straight to the cart above.
A hundred tons on a twelve foot circle
Full at the rating it puts 198,075 pounds on a 142 inch circle, and everything about the site follows from that number: an engineered slab in full contact per the concrete pad sizing guide, a berm sized to the tank when the liquid is regulated, and cables to structure before the first fill, because sixteen feet of empty polyethylene on a twelve foot base is a sail. Black polyethylene absorbs the ultraviolet that ages a white wall and passes no light to the liquid; it runs warmer in the sun than a white tank, which argues for shade if the liquid must stay cool, and it shows no level line, so a sender read at ground level is the gauge on a tank nobody climbs to look into.Size it from the feed rate and how often the truck comes with the tank sizing calculator; the tank sizing guide covers the reserve to leave in the bottom and the freeboard a dense chemical needs for thermal expansion.
Grades on the 142 x 198 inch tank, and the 12,000 and 15,000 beside it
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 5350000C34 (this tank, black, 1.9 SG) | 12,500 | 142 x 198 in | 3,100 lb |
| 5350000C37-BLACK (black) | 12,500 | 142 x 198 in | 3,100 lb |
| 5350000N40 | 12,500 | 142 x 198 in | 3,100 lb |
| 5350000N42 (XLPE) | 12,500 | 142 x 198 in | 4,200 lb |
| 32074 (water) | 12,000 | 142 x 197 in | 2,482 lb |
| 3030100C26 (wide) | 15,000 | 165 x 184 in | 4,400 lb |
The C37-BLACK is the other black tank in this shell and the N40 the other chemical grade, both at this weight; the N42 is the cross-linked one for hypochlorite and peroxide, 1,100 pounds heavier on the sheet. The 32074 is the 12,000 gallon water tank in the same footprint an inch shorter, and the 3030100C26 puts 15,000 gallons on a 165 inch base at 184 inches, a foot lower, for a site with yard.
Need the taller or the wider one? Every row links to its page with freight to your ZIP on each; 866-418-1777 will check the ceiling and the pad.
The 3 inch outlet, the vent, the platform
- Outlet: 3 inch polypropylene female NPT bulkhead fitting, at the base; tell us the liquid when ordering and the fitting is matched to it, with a flanged transition, a flexible connector to hard pipe, and the valve supported off the pad in the material the chemical calls for.
- Access: 18 inch threaded, vented manway, 198 inches up; a platform with a rail for anyone who opens it. Fill through a dip tube to the floor, vent outside on anything that fumes, and size the vent for the delivery pump, because a tanker's pump moves air faster than a stock vent passes it.
- Service limit: 120 F / 48 C.
Sixteen feet of liquid above a 3 inch outlet is the strongest flooded suction in the family, and the outlet drains a full tank in a working shift; mount the pump below the outlet so it primes by gravity, and a low-level float shuts it off before it runs dry. Label the tank for the one chemical it holds, keep the lid closed against vapor loss, and when it opens, shine a light on the headspace wall, which ages before the wetted wall does. Where it freezes, insulate or trace the outlet valve and the first pipe run; the body takes ice from the top down without harm.
Plants that take two tankers
Bulk coagulant or caustic at a municipal water plant, brine at a food plant, liquid fertilizer at a co-op, and process chemical at a plant that buys by the tanker and stores in the open. When containment must be in the tank, the Captor double wall freeboard guide explains the freeboard and the usable volume a contained tank gives up at this size. The fire-water reservoir design guide explains why a fire reserve is a different tank, and For a reuse system, the industrial water reuse tank topology article shows the stage where a chemical tank this size sits.
From Lincoln, as a permitted load
The 5350000C34 ships from Lincoln, Nebraska as freight at class 300 as the sheet lists it; at 142 inches across and 198 long on the deck it is a permitted load, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. A crane stands 3,100 pounds up with straps under the body, never through the manway, and the cables go on before the crane leaves. Water first: fill to the manway, hold it, look at the outlet fitting and the pad edge, then drain and dry it for the chemical. The first delivery gets watched from the first gallon to the last; every one after it gets logged. A strap that is checked once a season is a strap that holds; put it on the same calendar as the gutters.
Freight and documents
Ships from: Lincoln, NE. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5350000C34.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
