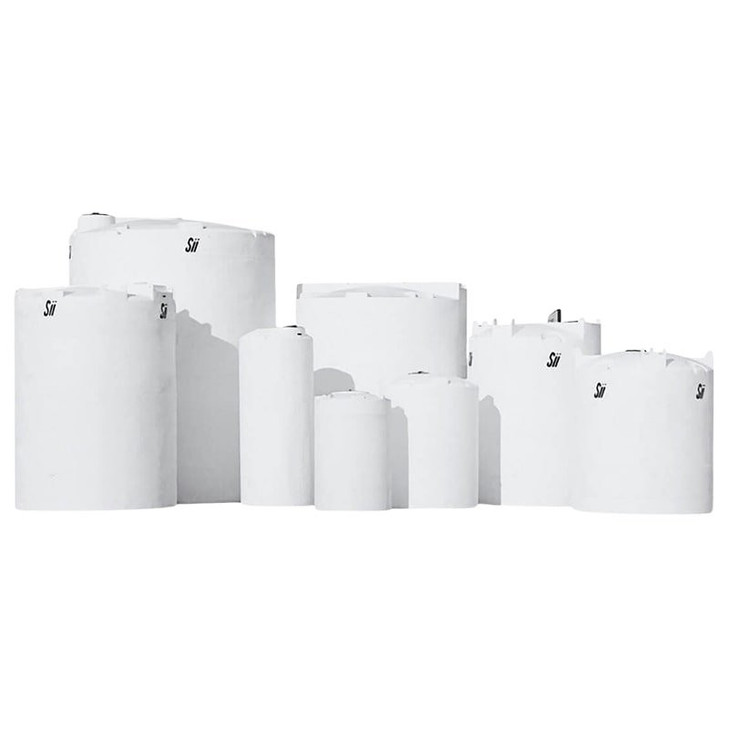

Snyder Industries 250 Gallon Sulfuric Acid Vertical Storage Tank

A narrow pad, a tall column, and the strapping that follows

Acid rooms are narrow, and that is the shape this tank is cut to. A 34 inch circle passes a 36 inch doorway, fits between two existing vessels, and tucks into the end of a containment curb that a wide tank would overhang. The cost of the narrow base is height and the height is real: 83 inches is nearly seven feet, which clears a 96 inch ceiling with room for the vent and the fill and clears very little less than that. Measure the purlin, the sprinkler head and the light fixture before the order goes in. Because the shell is tall on a small circle, it carries the highest centre of gravity of the four walls molded in this shape, so the strapping is designed with the pad rather than added after the piping: bands to structure in the upper third, anchors set in the slab, and a check after the first windy week and again at the end of the first summer. Under the tank, the 1.9 rating allows 3,962 pounds of contents and every pound of it bears on that 34 inch circle, a heavier pressure per square foot than a wide tank at the same volume puts down, so the slab is engineered to the concrete pad sizing guide, level and in full contact, inside containment sized to the tank, which on an acid duty is not optional and is usually the local rule rather than a preference. The white wall is the one advantage the narrow shape gives back: the level shows through it in daylight, so an operator can see what a sender would otherwise have to report. Take the volume to the tank sizing calculator against the dosing rate and the delivery interval, and the reserve and the thermal freeboard come out of the tank sizing guide.

The sulfuric acid molding beside the general-duty shells

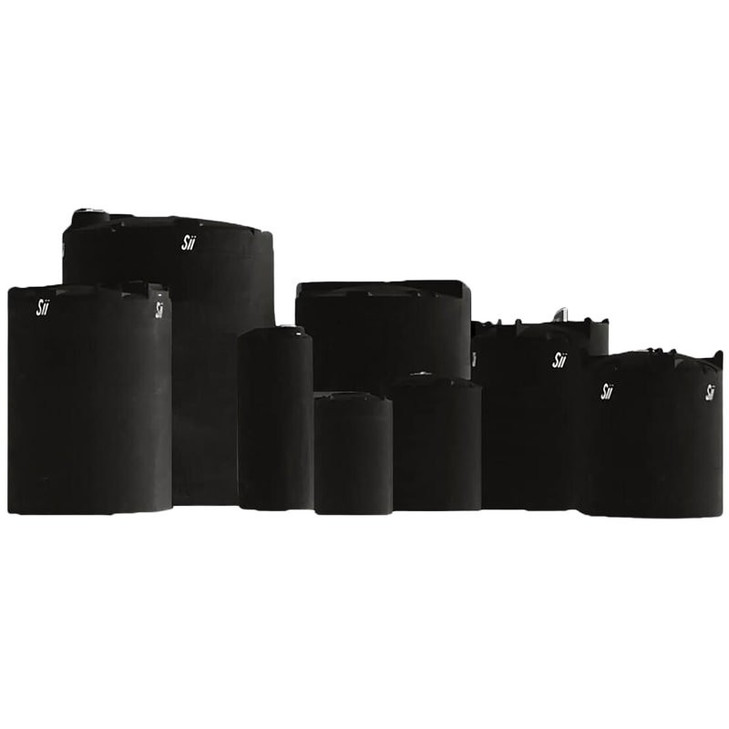

Buy this one when the liquid is the acid the sheet names it for and the room is narrower than it is tall. Three other walls are molded in this same 34 by 83 inch shell, listed separately and each rated as its own sheet says: one named for a different chemical duty, one in a black cross-linked wall with a higher service limit, and one general-duty black tank. They share the footprint and the manway, so the choice between them is a chemistry and temperature question and not a fit question. Against the general-duty 1008100 shells in the table, this tank trades a few inches of floor for nearly two feet of height; against the 5740100N42, it trades a great deal of floor for the same. The 1012900C26 is the step down in volume on the wider base.

Pad already poured? Send its size to 866-418-1777 or in a quote request and we will match a row to it, freight to your ZIP included.

The outlet field says manway, and the acid duty says name it at order

• Outlet: the sheet gives the outlet as "1 Manway / Lid" and no bottom fitting size anywhere. On an acid tank that is a specification to settle in writing rather than a blank to fill in on site, so tell us the acid and the draw-off arrangement at order and we confirm what the molding takes, in what material, with what gasket, before anything is drilled.
• Listed opening: a 14 inch threaded, vented manway at 83 inches. That is overhead work, which means a fixed platform with a rail and a gate, or a tied-off platform ladder, and a permanent fill connection landed at the manway so nobody lifts a delivery hose seven feet.
• Fill and vent: a dip tube to the floor so a dense acid does not free-fall the height of the shell and splash the headspace and the gasket, the vent piped outdoors, and the vent sized to the delivery truck's pump rather than to the fitting that happens to be there.
• Service limit: 120 F / 48 C, which matters on an acid that gives up heat when it meets water. Warranty: 3 year.

What hangs below the listed opening is where acid tanks come to grief. Whatever draw-off is fitted gets carried on its own support off the pad with a flexible connector between the tank and hard pipe, never rigid pipe bolted to the shell, because 83 inches of dense liquid standing above a base fitting puts more static pressure on it than the same fitting sees on a squat tank. Vapour in the headspace works on the wall above the liquid line harder than the liquid works on the wall below it, so that band is what gets inspected with a light every time the manway opens. Keep the manway threaded and closed between deliveries, put the acid's name on the wall where the driver reads it from the cab, and keep a spare gasket on the shelf, because it is the part that fails on a holiday.

Acid rooms, pickling lines and dosing skids

This is a purpose-named vessel and the duties follow the name: acid feed at a water or wastewater plant, a pickling or metal finishing line, battery service, a laboratory or pilot plant bulk supply, and a dosing skid that needs a real tank instead of a carboy farm. The narrow footprint is what gets it into those rooms, and the white wall is what lets an operator see the level without walking to a panel. For the question behind the specification, whether a cross-linked wall or a high-density one is the right one for a dense acid and where the extra cross-link density stops paying, our guide to wall selection for high specific gravity sulfuric acid storage works through it in detail; read it before the grade is chosen, because that decision is harder to change than the plumbing.

Out of Lincoln, Nebraska, light for its cube

Class 300 and 75 pounds is what the sheet gives, from Lincoln, Nebraska. Seventy-five pounds is nothing and 83 inches of standing height is everything, so this lane prices on the space the parcel takes on the deck; run your ZIP through the freight cost estimator before the requisition goes in, and the listed price is before freight. Two people take it off the trailer, straps under the body and never through the manway, and it goes onto the cured pad inside the containment rather than onto a staging slab it will be dragged off later. Water first, always: fill to the manway, hold it, walk the base and the containment floor twice, drain it and let it dry completely before an acid goes anywhere near it. Then write the commissioning date on the manway rim with a paint marker, because on a purpose-named tank the one fact people lose is when the clock started. Tape a copy of the spec sheet inside the control panel door; the next person to touch the tank will not have the box it came in.
