Snyder Industries 275 Gallon Plastic Vertical Double Wall Liquid Chemical Storage Tank in White

Containment at day-tank scale, without the ladder

A day tank stands beside the dosing pump inside an occupied building, and a spill there reaches a floor drain in seconds; a double wall tank catches it in the interstitial space instead, so the tank needs no spill pallet and no berm. The SPCC 40 CFR 112 compliance walkthrough covers where a double wall tank satisfies a spill plan on its own, and the Captor double wall freeboard sizing guide works out how much of the nominal 275 gallons is usable once thermal expansion, chemistry and the interstice are accounted for. The list below is the resin's rated chemistry; check the liquid at its concentration in the chemical compatibility database. The tank sizing calculator sizes the tank from the pump's rate and the refill schedule, and the tank sizing guide covers the reserve.

Grades on the 47 x 63 inch double wall, and the sizes beside it

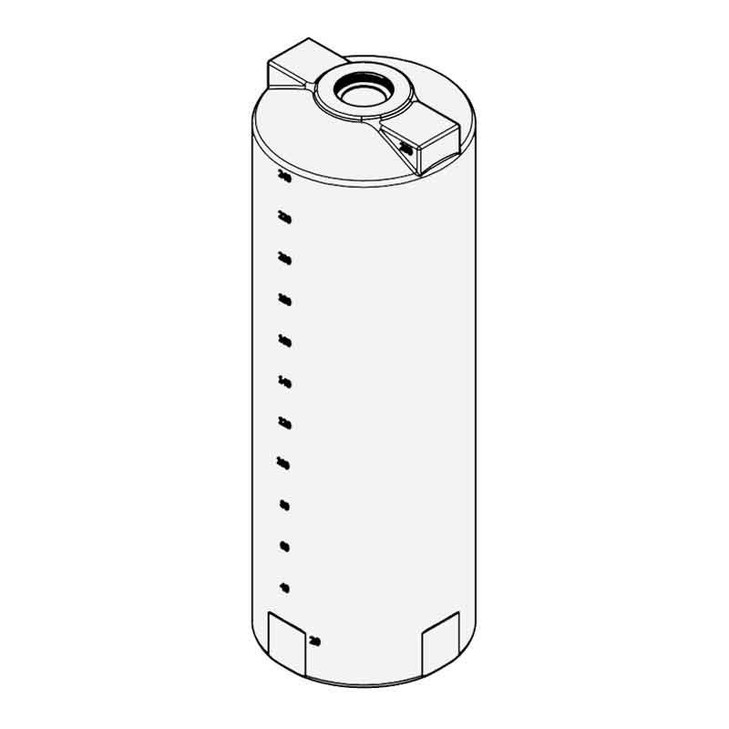

The N30 is the sulfuric acid grade and the N42 is cross-linked polyethylene for oxidizers, both 35 pounds heavier in the same shell. The 5990502N45 is the tall double wall, 250 gallons on a 34 inch base at 83 inches, for the corner with height and no floor, and the 5760102N30 is the 360 gallon sulfuric-grade step up at the same 63 inch height on a 53 inch base.

Still deciding between these? Freight to your ZIP often settles it; the wider tanks ship differently. Or call 866-418-1777 and we will walk the table with you.

Openings and the alarm layers

• Access: 18 inch threaded, vented manway on the primary, at chest height; filled by hose or tote pump through a dip tube, vented outside on anything that fumes.
• Outlet: through both walls at once, the transition supported from the floor rather than the fitting; name the chemical when ordering so the fitting matches it.
• Service limit: 120 F / 48 C.

Two levels to watch: the primary, with a sender chosen for the chemical per the level gauge selection guide, and the interstitial space, which is the leak alarm and gets a float switch and a logged check. A day tank is also where overfills happen, because a tote pump runs until someone stops it; the tank spillover redundancy guide covers the high-level alarm and automatic cutoff that stop a release before the containment has to catch it. A low tank cannot tip and needs no strap; mount the dosing pump below the outlet so it primes by gravity, and give the vent a line routed away from the pump's electrical gear.

Turnover and changeover

Size the refill schedule so the tank turns over before the chemical degrades; hypochlorite in particular is bought in small lots often. At changeover the low shape earns its keep: the manway is at chest height and the floor is a hand's reach through it, so a wash-down wand cleans the primary without anyone leaning over an opening. Drain, rinse, drain again, and let it dry before the new fill, and log each fill with its date and strength.

Put to use

Hypochlorite, caustic and coagulant day tanks inside occupied buildings with a low ceiling, acid and inhibitor feed at cooling towers, polymer make-down on a skid, and any small regulated chemical tank at a site an inspector visits. One chemical per tank, labeled, manway closed against vapor loss.

How it ships

The 5740102N45 ships palletized as LTL freight (NMFC 156600-03) at a class rate; the freight cost estimator shows the lane to your ZIP; the listed figure is the price before freight. Two people carry 165 pounds. Water-test the primary, confirm the interstice stays dry through the hold, then drain and dry before the first chemical fill. A strap that is checked once a season is a strap that holds; put it on the same calendar as the gutters.

Chemical service ratings

The resin is rated for the liquids below at the concentrations shown; the fitting and gasket called out are the ones to order with the tank. Verify the exact service on the linked page or in the chemical compatibility database before ordering.

• Acetic Acid (60%) - PP/PVC fittings, EPDM gaskets
• Aluminum Sulfate (50%) - PVC fittings, EPDM gaskets
• Calcium Chloride (40%) - PVC fittings, EPDM gaskets
• DEF (32.5%) - 316SS fittings, EPDM gaskets
• Ethylene Glycol (100%) - PVC fittings, EPDM gaskets
• Ferric Chloride (50%) - PVC fittings, EPDM gaskets
• Ferric Sulfate (60%) - PVC fittings, EPDM gaskets
• Ferrous Sulfate (20%) - PVC fittings, EPDM gaskets
• Hydrochloric Acid (37%) - PVC fittings, Viton gaskets
• Hydrofluoric Acid (48%) - PP/PVC fittings, Viton gaskets
• Hydrofluosilicic Acid (26%) - PP/PVC fittings, Viton gaskets
• Hydrogen Peroxide (50%) - PVC fittings, Viton gaskets
• Magnesium Chloride (30%) - PVC fittings, EPDM gaskets
• Peracetic Acid (30%) - 316SS fittings, Aflas gaskets
• Phosphoric Acid (85%) - PVC fittings, Viton gaskets
• Polyaluminum Chloride - PVC fittings, EPDM gaskets
• Potassium Carbonate (50%) - PVC fittings, EPDM gaskets
• Potassium Hydroxide (saturated) - PVC fittings, EPDM gaskets
• Propylene Glycol - PP/316SS fittings, EPDM gaskets
• Sodium Bisulfate - PVC/PP fittings, EPDM gaskets
• Sodium Bisulfite - PVC/PP fittings, EPDM gaskets
• Sodium Carbonate (30%) - PVC fittings, EPDM gaskets
• Sodium Hypochlorite (
• Sodium Thiosulfate (40%) - PVC fittings, EPDM gaskets
• Sulfuric Acid (98%) - CPVC fittings, Viton gaskets
• Urea Solution (50%) - PP/PVC fittings, EPDM gaskets
• Zinc Orthophosphate - PP/316SS fittings, EPDM gaskets
