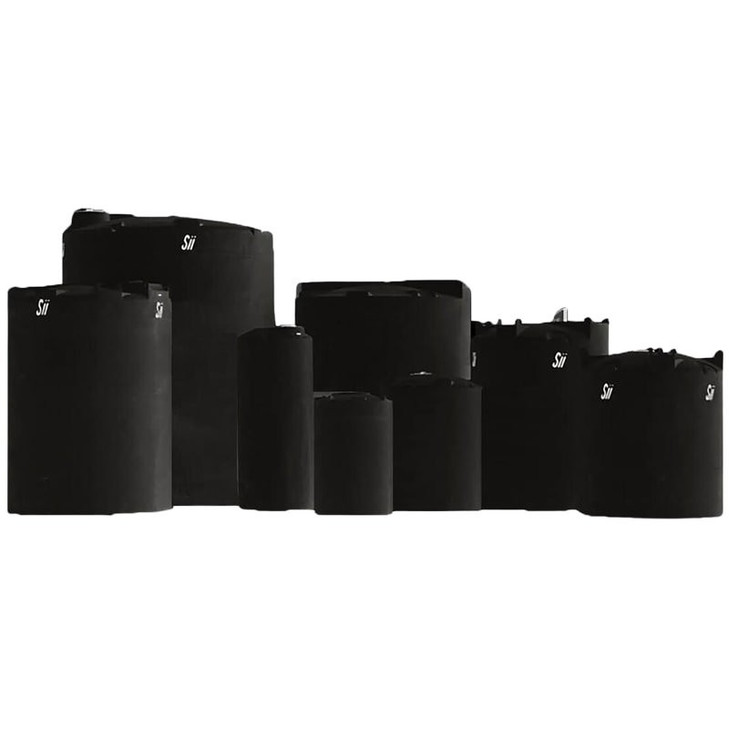

Snyder Industries 250 Gallon ASTM XLPE Black Heavy Duty Vertical Storage Tank

A warm pad, a black wall, and wind on an empty tank

Sites that need the higher service limit tend to be the sites that punish tanks in other ways too, so walk the location first. A boiler room, a wash bay, a south-facing pad in the desert, a roof deck beside condenser units: warm air, warm liquid and full sun all at once. This shell answers the heat twice, once with the cross-linked wall the sheet lists to 140 F / 60 C and once with the black colour, which passes no light at all into the liquid and takes the ultraviolet that ages a pale shell outdoors. The colour costs you the level, because you cannot see through a black wall, so a sender and a local readout are part of the install rather than an upgrade. Height is the other site question: 83 inches wants a 96 inch ceiling to leave room for the fill and the vent above the manway, and a tall shell on a 34 inch circle is the easiest shape in the range for a gust to move while it is empty, so bands to structure or to slab anchors go on the day the tank lands, get checked after the first storm, and get checked again at the end of the first hot summer, because a black wall in the sun grows a little every day and what was tight in spring is loose in August. Below the tank, the 1.9 rating allows 3,962 pounds of contents bearing on a 34 inch circle, and a rotationally molded floor carries on the whole floor, so the slab is engineered to the concrete pad sizing guide, level and in full contact, inside a berm sized to the tank where the liquid is regulated. Run the volume against the draw in the tank sizing calculator, and take the reserve and the thermal freeboard, which a warm liquid needs more of, from the tank sizing guide.

The cross-linked wall among the shells at this volume

Buy this one for the temperature, and only for the temperature; on a room-temperature liquid the other walls in this shell do the same job for less. Three of them are molded in this same 34 by 83 inch shape and listed separately, each rated as its own sheet says: two named for specific chemical duties in a white wall, and one general-duty black tank at the lower service limit. The 1008100N42 in the table is the other cross-linked tank at this volume, in a shorter, slightly wider shell for a room with a low ceiling. If the ceiling is the binding constraint rather than the heat, that is the tank to compare against; if the heat is the constraint, this shell is the answer and the height is the price of it. The 1012900C26 and the 5740100N42 are the volume steps either side.

Want the certified one or the plain one? Call 866-418-1777 and say what the inspector asks for; or request a quote on the row you need.

What the sheet lists at the top, and what gets specified at order

• Outlet: the field reads "1 Manway / Lid" and the sheet gives no bottom fitting size. That is printed as it stands, not read as a pipe size. Tell us the liquid, its working temperature and the draw-off you want at order, and we confirm what this molding accepts and in what material, because a fitting and a gasket that hold at room temperature are not automatically the right ones at the top of this tank's range.
• Listed opening: a 14 inch threaded, vented manway at 83 inches, which is platform work rather than ladder work, with a permanent fill line landed at the manway so nobody handles a hose overhead.
• Fill and vent: a dip tube to the floor so a warm liquid does not cascade and flash inside the headspace, the vent piped outdoors on anything that fumes, and the vent sized to the delivery pump. A warm liquid breathes more than a cold one, so the vent is sized for the fill rate and then checked as a habit.
• Service limit: 140 F / 60 C, the field that defines this tank. Warranty: 3 year. Rating: specific gravity 1.9 as the sheet gives it.

Heat is what makes the plumbing discipline non-negotiable here. Polyethylene moves with temperature, so every run leaving the base is carried on its own support off the pad with a flexible connector between tank and hard pipe, and nothing rigid is ever bolted straight to the shell; a pipe run that was neatly aligned cold will not be aligned hot. The headspace of a warm tank is the part of the wall that ages first, so the light goes on the band above the liquid line every time the manway is open, and the date goes on the log. Keep the manway threaded and shut between deliveries, put the one liquid's name on the wall where a driver reads it, and where the site also freezes, protect the base piping and the first valve rather than the body.

Hot-side chemistry and cross-linked duty

This is the tank for the warm end of a process: a heated cleaning or caustic solution, a hot wash-water makeup tank, a plating or finishing bath feed that arrives warm, a boiler or cooling chemistry skid, and any outdoor pad in a hot climate where the liquid never really cools down at night. Whether the cross-linked wall is genuinely the right buy or whether a high-density wall would do the same work for less is the question worth settling before the order, and our guide to when cross-linking matters for chemistry duty answers it chemical by chemical rather than in generalities. Water at 8.34 pounds per gallon sits far inside the rating, but a private fire reserve is a separate specification in a water-rated vessel, which the fire-water reservoir design guide explains.

Class 300 from Lincoln, and a hydrostatic hold before service
