Snyder Industries 300 Gallon Black Heavy Duty Vertical Storage Tank

Where a tall 300 fits

Buy this shape when floor space is the constraint: a chemical day tank beside a metering pump in a water or wastewater plant, a boiler treatment tank, a brine tank for a softener bank, a wash water or process reserve in a shop, or a rainwater or well reserve in a utility room. The 35 inch diameter is the number to check against the door and the gap between other equipment; the 80 inch height is the number to check against the ceiling, with room above the manway to open it. A tall narrow tank is less forgiving of a poor base than a squat one: a high spot under one edge becomes a visible lean and loads one arc of the base. Set it on a flat, continuous, level surface that supports the whole 35 inch circle. Outdoors that is a slab or a screeded gravel pad; our guide to concrete pad sizing for above ground polyethylene tanks covers it, and a tank this tall should be strapped or anchored to a wall or a frame while it is empty. If it is a fire reserve, our guide to fire water reservoir design for rural and remote sites covers sizing and freeze protection, and the industrial water reuse storage guide covers grey water and condensate collection. Anything other than water is checked in our chemical compatibility guide first. For the volume itself, use the tank sizing calculator and tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. Your valve, pump suction or hose adapter threads straight in. On a tall tank the head at the outlet is higher than on a squat tank of the same volume, so support the valve and the first length of pipe on their own and put a flexible connector before the first rigid joint.
2. Manway. An 18 inch threaded vented manway on top: fill from a hose or a pump, drop a float or a level sensor in, and get a hand and a brush inside to clean. Keep the vent clear so air moves as the level changes.
3. Extra ports. Only the one outlet comes installed. An overflow, a fill port or a second draw means another bulkhead fitting; tell us when you order and it goes on before the tank ships.
4. Drawing. Snyder's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height, the manway and the base profile.

Sizes and versions nearby

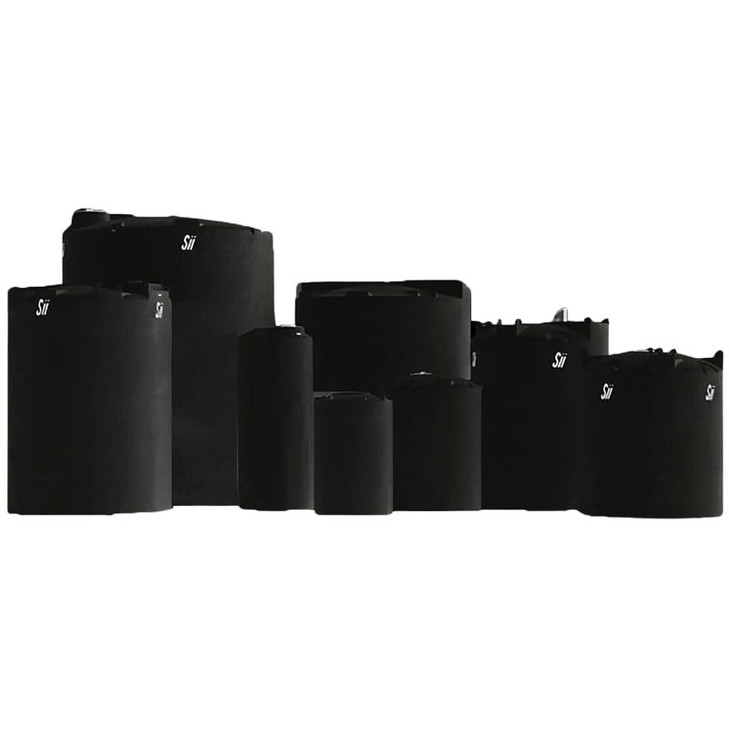

Snyder makes 300 gallons in more than one body. On a different mould there is the 300 gallon black heavy duty vertical storage tank, part 1011200C34, with its natural white twin the 300 gallon heavy duty vertical storage tank, part 1011200C26, and the crosslinked 300 gallon ASTM XLPE heavy duty vertical storage tank for harder chemical duty; compare their diameters and heights on their pages against this tank's 35 by 80 inches, because the volume is the same and the shape is not. One step down is the 290 gallon heavy duty vertical storage tank; one step up is the 330 gallon heavy duty vertical storage tank.

Shipping and receiving

The tank ships LTL at freight class 300 from Snyder's Marked Tree, Arkansas plant as a 35 by 35 by 80 inch load weighing 100 lb. Two people can walk it off a tailgate and through a door; no forklift is needed. Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight. At the tailgate, check the part number against 1630000C34 on the bill of lading, look over the base and the fittings for transit damage, and fill with water the first time.
