330 gallons at 1.9 specific gravity, the middle shape at this volume
The Snyder 1011600C26 is a natural white polyethylene vertical storage tank, 44 inches across and 58 inches tall, holding 330 gallons at 80 pounds. Snyder molds 330 gallons three ways, and this is the one in the middle: taller and narrower than the 47 inch tote-shaped tank, shorter and wider than the 35 inch slim one, with the 18 inch threaded, vented manway at 58 inches where a person opens it standing on the floor. Its wall is rated for a specific gravity of 1.9, or 5,229 pounds of contents against 2,752 for water, so it holds the dense chemicals a tote does. A 2 inch polypropylene female NPT bulkhead outlet, a 3 year warranty, and freight at class 300 from Philippi, West Virginia.
Need the certification on file? Add the 330 gallon tank to your cart above with freight quoted to your ZIP, or call 866-418-1777 and the paperwork ships with the tank.
Three 330s, and when the middle one wins
The 47 inch tank is for the site with a mezzanine at tote height; the 35 inch tank is for the corner with height and no floor; this 44 inch tank is for the site that has a little of both, where a tote hose still reaches the manway from the floor and the footprint is a foot narrower than the low one. The 1.9 wall covers what a tote carries, and the white wall shows the level through it in daylight. Full at the rating it puts 5,229 pounds on a 44 inch circle: a level slab per the concrete pad sizing guide, or a containment pallet rated for the weight, with a berm or a spill tray when the liquid is regulated, and a strap to the wall behind it. The tank sizing calculator turns feed rate and delivery interval into a volume, and the tank sizing guide covers the reserve to keep the pump wet between deliveries.
The three 330 shapes, and the 300 and 360 beside them
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 1011600C26 (this tank, 1.9 SG) | 330 | 44 x 58 in | 80 lb |

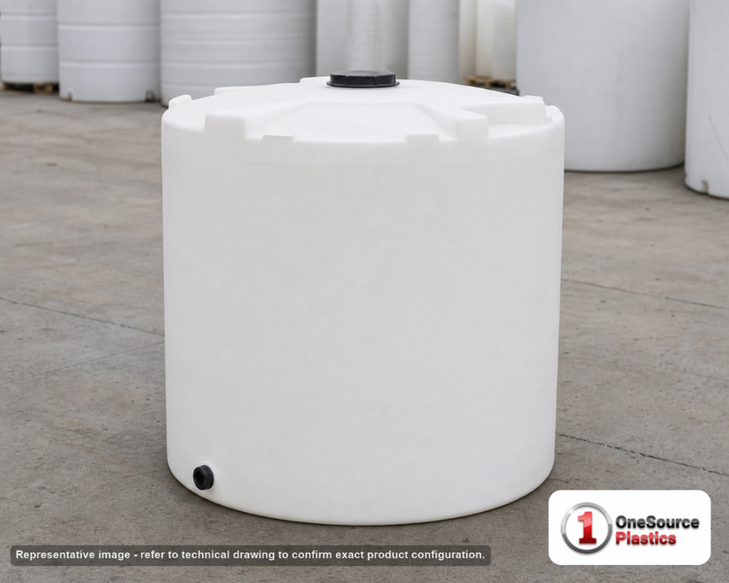

| 1008200C26 (low) | 330 | 47 x 50 in | 85 lb |
| 1008200C34 (black, low) | 330 | 47 x 50 in | 85 lb |
| 1008200N42 (XLPE, low) | 330 | 47 x 50 in | 85 lb |
| 1011200C26 (slim) | 300 | 35 x 82 in | 85 lb |
| 5760100N42 (XLPE) | 360 | 53 x 59 in | 116 lb |
The 1008200 family is the low 330 on a 47 inch base at 50 inches, in white, black and the cross-linked resin for oxidizers. The 1011200C26 stands 300 gallons on a 35 inch base at 82 inches for the narrowest corner, and the 5760100N42 is the 360 in the cross-linked resin on a 53 inch base at this tank's height.
Pad already poured? Send its size to 866-418-1777 or in a quote request and we will match a row to it, freight to your ZIP included.
Connections
- Outlet: 2 inch polypropylene female NPT bulkhead fitting, at the base; a flexible connector to hard pipe, the valve supported off the pad, and the reducer to the pump's suction at the pump.
- Access: 18 inch threaded, vented manway, 58 inches up, opened from the floor; fill from a tote through a dip tube, and vent outside on anything that fumes.
- Service limit: 120 F / 48 C.
A manway at 58 inches is chest height, where a tote hose goes in and a float comes out without a step, and the level is read through the wall at eye height. Mount the pump below the outlet so it primes by gravity, put a low-level float on it, keep the manway closed against vapor loss, and label the one chemical the tank holds.
Plants that pick the middle 330
The acid or caustic supply at a boiler room where the low tank's footprint is too wide, the coagulant tank at a small water plant, a cooling tower treatment skid, the brine tank behind a large softener, and the makeup tank on a wash line. Not a fire tank; the fire-water reservoir design guide works in thousands of gallons and a water wall. Where a reuse system doses treatment chemical between storage stages, the industrial water reuse tank topology article shows where a tank this size sits in the train.
Freight from Philippi
The 1011600C26 ships from Philippi, West Virginia as LTL freight at class 300; the freight cost estimator quotes it to your ZIP, and the listed price is before freight. Two people stand 80 pounds, or one walks it on a hand truck; at 44 inches across it goes through a double door. Fill it with water to the manway once and look at the outlet fitting for a weep, then drain and dry before the chemical goes in. Write the chemical and the date on the wall in paint marker. Tape a copy of the spec sheet inside the control panel door; the next person to touch the tank will not have the box it came in.
Freight and documents
Ships from: Philippi, WV. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 1011600C26.
