Snyder's steel stand for 30 degree, 142 inch cone bottom tanks from 6000 to 13000 gallons

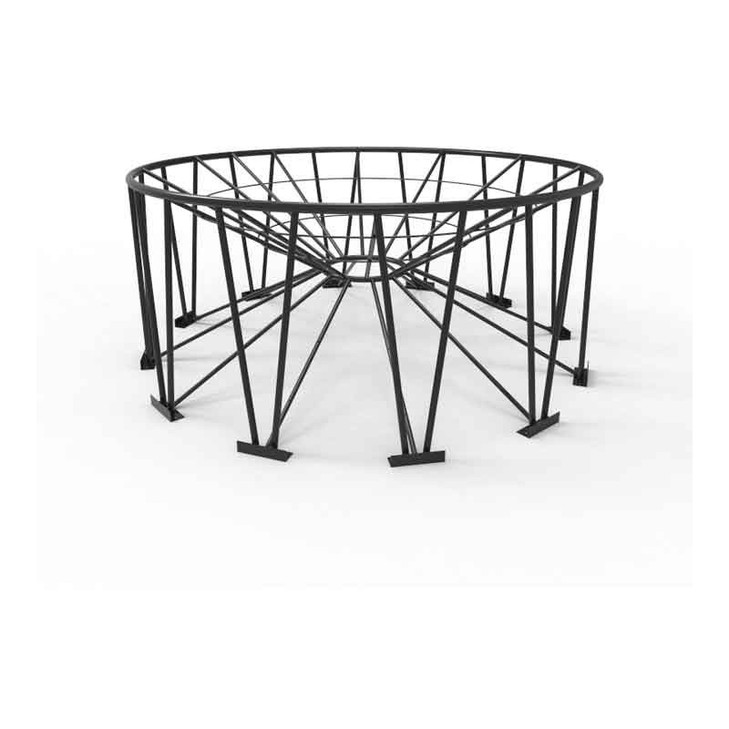

Part number 79500000 is Snyder's painted steel stand for its largest cone bottom tanks: the 6000, 7400, 11500 and 13000 gallon models with a 30 degree cone and a 142 inch body. A cone bottom tank has no flat base, so it needs a stand that cradles the cone at the right angle and lifts the outlet high enough to work under. This one is a welded frame 142 inches square at the floor and 62 inches tall, weighing 2500 lb. The angle must match: a 30 degree cone sits in a 30 degree stand and nothing else. Check it on your tank's own page before you order.
Two ways to buy. Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
What to check before you buy
- The tank. Four Snyder tanks share this stand: 6000, 7400, 11500 and 13000 gallons, all 30 degree, all 142 inches across. Tell us the tank part number and we confirm the pair; our cone bottom tank stand compatibility matrix lays out every pairing, and our steel frame versus polyethylene stand decision tree explains why a tank this size is on steel.
- The floor. A flat, level, continuous 142 inch square of structural concrete, with no drain, joint or slope under it. Your engineer, not this page, sizes the pad.
- The height. With the tank in it, the cone outlet sits 62 inches up. That decides what fits underneath: a valve and a hose, a drum, a pump inlet, a mixer. Measure that equipment before the order.
- Anchoring. No anchor hardware comes with the stand; if your site needs it bolted down, that hardware is yours. Snyder's drawing, linked on this page under Technical Drawing, has the geometry.
Setting it up
A 2500 lb frame goes on the pad with a forklift or a crane. Set it in its final position, level it across both diagonals, then set the empty tank and turn it so the outlet points where the pipe will run. Fit the outlet valve before the first fill, and fill with water the first time so any problem shows up with something harmless in the tank. If you blend fertilizer in a tank this size, our note on fertilizer blend stratification is worth ten minutes.
Shipping and receiving
At 142 by 142 by 62 inches the stand is oversize freight and moves on a flatbed from Snyder's plant in Lincoln, Nebraska, usually with its tank. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and for an oversize load we confirm the quote by phone. You need a forklift or crane to receive it. At the tailgate, check the part number against 79500000 on the bill of lading and look at every foot and weld before the driver leaves.
Questions before you order? Call 866-418-1777 with the tank part number.
Freight and documents
LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 79500000.
