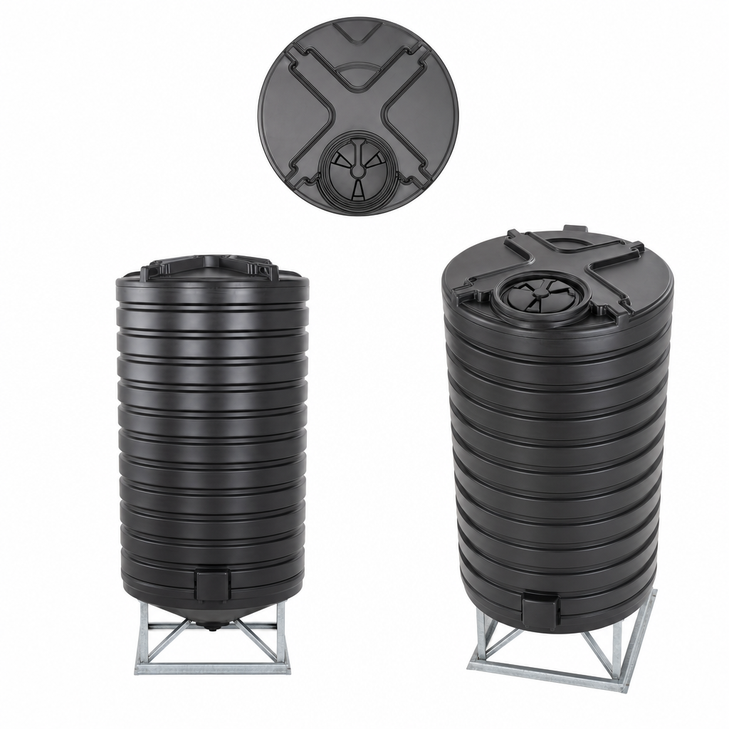

1100 Gallon 15 Degree Plastic Cone Bottom Tank with Stand

The Enduraplas 1100 Gallon 15 Degree Cone Bottom Tank with Stand (SKU THC01100K) is built for processes where the tank needs to drain completely — mixing, batching, settling, and dosing applications where product left sitting in a flat bottom means waste and manual cleanout. The 15-degree cone floor keeps solids and liquid moving toward the outlet, and the included stand elevates the cone so you can plumb the discharge and fit a valve underneath. This is a cone bottom poly tank sized at 1,100 gallons on a 60 x 60 inch footprint, standing 113 inches tall to the top of the assembly.

Will it work for your process

The dimensions are verified from launch spec data: 60 inches wide by 60 inches long, 113 inches tall overall, holding a nominal 1,100 gallons. Filled with water, the tank carries roughly 9,174 pounds — so the pad or floor under the stand needs to support that fully loaded weight, and you should confirm your load path before install. At 113 inches (9 feet 5 inches) to the top of the assembly, confirm your door, ceiling, and fill-access clearance before ordering — that height decides whether the unit fits your bay and whether you can reach the top fitting. Use the Tank Sizing Calculator to check the filled weight against your own liquid, and the Tank Sizing Guide if you are still deciding between cone angles and stand heights for a cone bottom tank with stand.

The mistake to avoid on a chemical-service cone tank

The number that decides whether this tank is right for you is specific gravity — the weight of your liquid relative to water. This pack does not list a specific-gravity rating for THC01100K, so before you put anything heavier than water in it, confirm the tank's SG rating and the resin directly against Enduraplas documentation and the OEM chemical-resistance chart, concentration- and temperature-specific to your process. Remember that the 9,174-pound figure above is water only — a heavier-than-water chemistry raises that loaded weight in direct proportion to specific gravity, which is exactly why sizing a cone bottom tank on gallons alone is the most common and most expensive error on chemical duty. Verify your resin, fitting, and gasket materials against your chemistry together in our Chemical Compatibility Database before you commit.

Freight and how to order

This 1,100-gallon cone bottom tank with stand ships LTL freight — it is an oversized, palletized load, not a parcel item — and freight is quoted live to your ZIP code rather than bundled into the list price. Run your delivery address through the Freight Cost Estimator for a rate to your dock, and note whether you have a forklift or need a liftgate at delivery. If you want to compare against a smaller unit first, our cone bottom buyer's guides walk through the 175 gallon, 300 gallon, 310 gallon, and 550 gallon cone-and-stand configurations. To confirm the SG rating, resin, and fitting options for THC01100K before you buy, or to place the order, call One Source Plastics at 866-418-1777.
