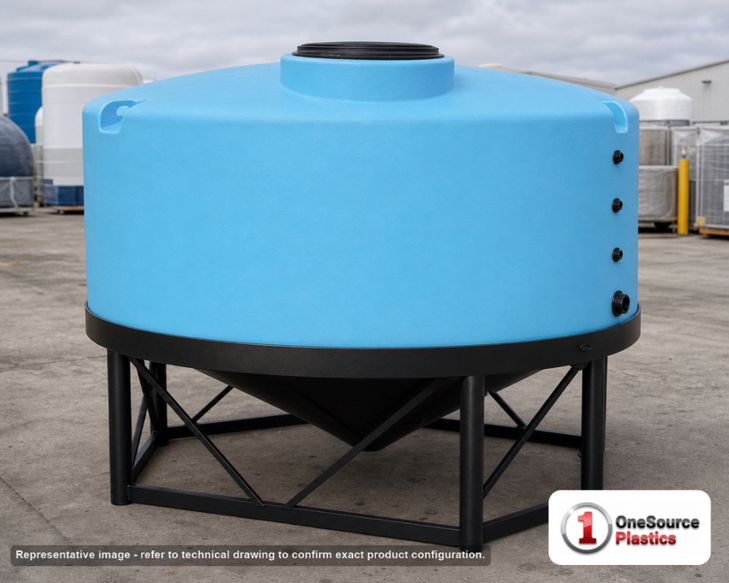

The 1600 Gallon 30 Degree Cone Bottom Tank (MPN N-40817) is a process cone-bottom tank engineered for complete drain — the conical floor eliminates the dead volume of a flat-bottom tank, which matters in chemical batching, plating, etching, and dosing service.
Design
- Stand cross-bracing rated for the tank's full-load weight (water at 8.34 lb/gal × capacity for water service)
- Top manway sized for installation of overhead agitator, mixer, or sample-port assembly
- Bottom outlet drain accepts standard polyethylene or PVC bulkhead-fitting connections
- One-piece rotomolded shell — no welded seam at the cone-to-cylinder transition
- Integrated steel support stand sized to the tank — no field fabrication, no separate cradle to weld
Installation
The integrated steel stand sets directly on a level concrete pad with anchor-bolt mounting through the stand foot-plates. Confirm the pad bearing capacity meets the filled-tank load: at 1600 gallons of water service, the filled assembly weighs approximately 13,344 lb (multiply by chemical SG for chemical service). Install a bottom-outlet shutoff valve before commissioning batch service. Plumb the drain to a containment sump or process catch.
Common applications
- Process chemistry batch mixing in coatings, adhesives, and resin formulation
- Agricultural spray-formulation tank for custom blending of pesticide, herbicide, and fertilizer concentrates
- Aquaculture hatchery and grow-out feed-water mixing and dosing
- Dairy clean-in-place (CIP) sanitizer staging and recovery
- Wastewater pH-adjustment and chemical-precipitation reaction holding
- Metal-finishing rinse-water collection and chemistry-recovery staging
Compatibility & compliance
Tank shell meets ASTM D1998 for atmospheric polyethylene service. Steel stand finish (galvanized or powder-coat) is selected for outdoor or indoor environment — specify when ordering. Not rated for pressurized service, vacuum service, or chemical service beyond the OEM compatibility chart for the tank-shell resin.
Shipping
Ships LTL freight from the nearest manufacturing plant. ZIP-specific freight quotes are available through the freight estimator or by phoning 866-418-1777 with MPN N-40817.
3 Year Warranty
