300 Gallon Green Doorway Water Tank

Outside, against a wall, out of sight

Pick the green tank when the tank will stand where it can be seen and where the sun reaches it: beside a house under a downspout, along a garden fence, behind a barn, at a cabin. At 25 inches wide it tucks against a wall under an eave, and at 65 inches tall it collects a useful amount of roof water on a small footprint. Pick the white version instead when the tank lives indoors and you want to read the level through the wall. Nothing else changes with the colour: same body, same openings, same rating. Full of water it is 2502 lb standing on 59 by 25 inches, so outdoors it needs a level pad, concrete or compacted gravel, in full contact with the whole base, poured or laid wider than the tank, with the overflow led away from the pad edge so it does not wash underneath. A 110 lb body standing over five feet tall catches wind when empty, so strap it the day it is placed. Our buyer's guide to this green 300 gallon tank goes through the common installs, and the rainwater and grey water reuse tank guide covers how a tank like this fits into a reuse system.

What goes in it

Rainwater and stored water are the normal loads. The 1.5 specific gravity rating, a maximum of 12.52 lb per gallon, means it will also hold most liquid fertilizers and the common solutions polyethylene handles. Keep the contents under 120 F. Rainwater off a roof carries leaves and grit, so put a screen or a first-flush diverter ahead of the inlet and clean the tank through the manway once a season. To check that 300 gallons is the right amount for your roof area and your draw, run the numbers through the tank sizing calculator and take the reserve from the tank sizing guide.

Openings and fittings

1. Outlet. A 1-1/4 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. A hose bib, a valve or a pump suction threads straight into it. Support the valve and the first length of hose so the fitting carries water, not hardware.
2. Manway. A 16 inch threaded vented manway on top: wide enough to take a downspout inlet, to drop a float in, and to get an arm and a brush inside to clean. The vent lets air in as the tank drains, so never seal it.
3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, gives the exact outlet and manway positions.

Sizes nearby

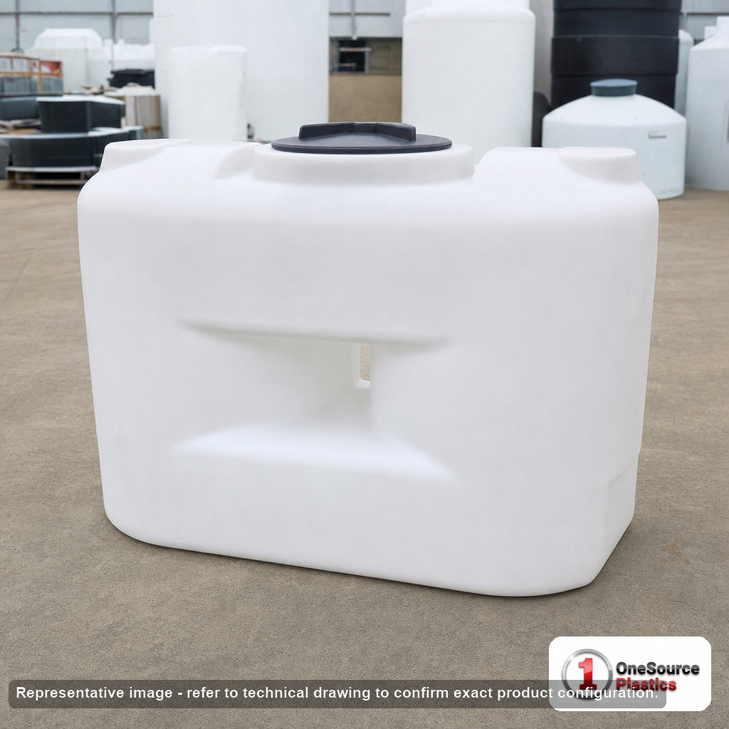

The same 300 gallon doorway tank in other colours: part 41527 and part 44330; the buyer's guide to the white 25 by 65 inch tank compares them. One size down: the 250 gallon doorway water tank. One size up: the 400 gallon doorway tank.

Shipping and receiving

The tank ships LTL on a pallet, 59 by 25 by 65 inches and 129 lb packed, from the nearest of Norwesco's plants in Hanford, California, Tooele, Utah and Washougal, Washington. Those three plants make this the version to look at first for a western buyer; a 300 gallon body is a big box at a light weight, so the freight is priced on the space it takes and the distance it travels, and the lane from these plants into the Central Valley, the Great Basin and the Pacific Northwest is short. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At 110 lb empty, two people walk it into position. At the tailgate, check the part number 44976 against the bill of lading, look over the wall and the fitting for transit damage, and fill it with water the first time.

Questions before you order? Call 866-418-1777.
