7,000 Gallon Tanks
7,000 Gallon Tanks
Seven thousand gallons on a wide, low mold: Snyder's 142 inch vertical stands only 122 inches, which keeps the manway reachable and the load spread. Eight verticals and two cone bottoms from Snyder and Enduraplas. Spin the vertical below, compare the walls, and get freight to your ZIP.
- 10
- tanks at 7,000 gallons
- 142 in
- across
- 122 in
- tall
- 1.5 / 1.9
- wall rating, specific gravity
Listed from $15,609 before freight. Call 866-418-1777 to talk through the choice.
122inches tall. Wider than it is tall.
The Snyder vertical is 142 inches across and 122 inches tall, a low, wide shape for this capacity. It still clears no 96 inch ceiling, but the 18 inch manway is within reach of a short platform.
58,380pounds of water when full. Water alone weighs 58,380 pounds.
Multiply 7,000 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 87,570 pounds, and the 1.9 walls up to 110,922 pounds. Size the pad for the liquid you will actually store.
The ten tanks
Start with the wall. Resin sets what the tank can hold and how hot; the specific gravity rating sets how heavy a liquid the wall is built for. Pick a cell to narrow the list.
Vertical tanks
8 at 7,000 gallonsSnyder 142 inch verticals and Enduraplas verticals, 1.5 to 1.9 walls.

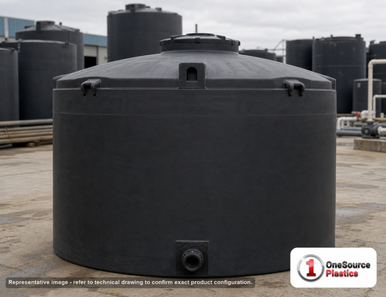

Snyder Industries 7000 Gallon ASTM Black Vertical Storage TankSnyder, Black, 18" Threaded Vented Manway- Wall rating
- SG 1.5
- Max temp
- 120 F
- Ships
- 1400 lb
$15,609list, before freightVideoDrawing (PDF)Polyethylene, freight class 400, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61- 3DSnyder Industries 7000 Gallon HDPE Vertical Liquid Storage Tank with ASTM CertificationSnyder, White, 18" Threaded Vented Manway
- Wall rating
- SG 1.5
- Max temp
- 120 F
- Ships
- 1400 lb
$15,613list, before freightVideoDrawing (PDF)Polyethylene, freight class OVS, warranty 3 Year Warranty. Listed: ASTM, FDA approved, ANSI/NSF 61 approved

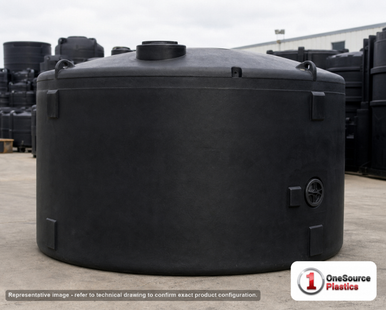

Snyder Industries 7000 Gallon ASTM XLPE Black Vertical Storage TankSnyder, Black, 18" Threaded Vented Manway- Wall rating
- SG 1.5
- Max temp
- 140 F
- Ships
- 1400 lb
$16,919list, before freightVideoDrawing (PDF)Crosslinked Linear Polyethylene, freight class 400, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61

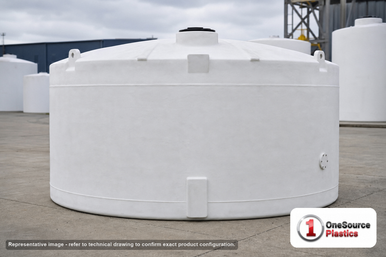

Snyder Industries 7000 Gallon ASTM XLPE Vertical Storage TankSnyder, Natural White, 18" Threaded Vented Manway- Wall rating
- SG 1.5
- Max temp
- 140 F
- Ships
- 1400 lb
$16,919list, before freightVideoDrawing (PDF)Crosslinked Linear Polyethylene, freight class 400, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61

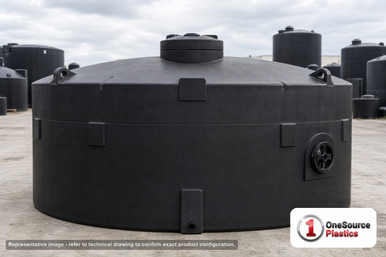

Snyder Industries 7000 Gallon ASTM Black Heavy Duty Vertical Storage TankSnyder, Black, 18" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- 120 F
- Ships
- 1900 lb
$21,109list, before freightVideoDrawing (PDF)High Density Linear Polyethylene, freight class 300, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61

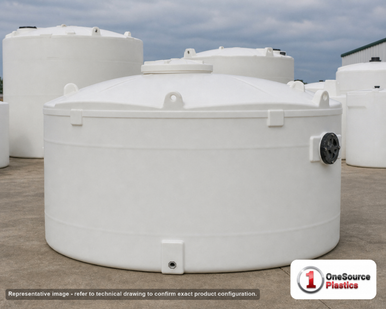

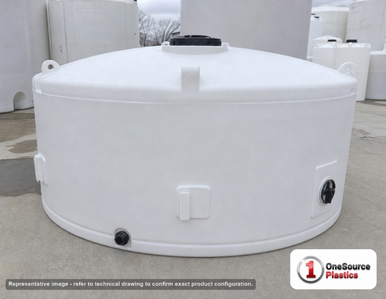

3DSnyder Industries 7000 Gallon HDPE Vertical Liquid Storage Tank with ASTM CertificationSnyder, White, 18" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- 120 F
- Ships
- 1900 lb
$21,114list, before freightVideoDrawing (PDF)Polyethylene, freight class OVS, warranty 3 Year Warranty. Listed: ASTM, FDA approved, ANSI/NSF 61 approved

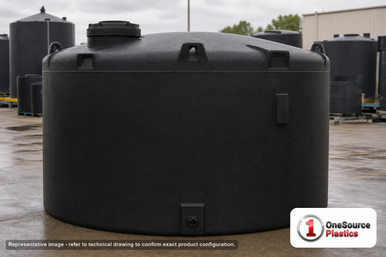

Snyder Industries 7000 Gallon ASTM XLPE Black Heavy Duty Vertical Storage TankSnyder, Black, 18" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- 140 F
- Ships
- 1900 lb
$22,879list, before freightVideoDrawing (PDF)Crosslinked Linear Polyethylene, freight class 300, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61

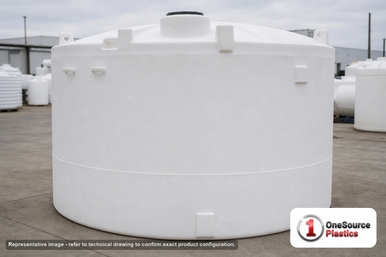

Snyder Industries 7000 Gallon ASTM XLPE Heavy Duty Vertical Storage TankSnyder, Natural White, 18" Threaded Vented Manway- Wall rating
- SG 1.9
- Max temp
- 140 F
- Ships
- 1900 lb
$22,879list, before freightVideoDrawing (PDF)Crosslinked Linear Polyethylene, freight class 300, warranty 3 Year Warranty. Listed: FDA-compliant resin, NSF 61
Every size of vertical tanks, or call 866-418-1777 for the one you need.

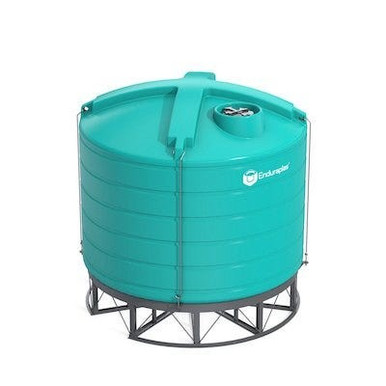

Cone bottom tanks
2 at 7,000 gallonsFull-drain cone bottoms on steel stands for mixing and complete drawdown.
- Wall rating
- SG 1.9
- Max temp
- -
- Ships
- 4200 lb
$21,502list, before freight
- Wall rating
- SG 1.9
- Max temp
- -
- Ships
- 1600 lb
$22,027list, before freight
Every size of cone bottom tanks, or call 866-418-1777 for the one you need.
The ten tanks, and how they differ
Eight verticals: Snyder's 142 inch mold in white and black with 1.5 linear and 1.9 heavy duty walls, including crosslinked tanks rated to 140 degrees F, and Enduraplas verticals. Two cone bottoms on stands drain completely for mixing and blending at a scale where a flat bottom would strand hundreds of gallons.
Listed prices run 15,609 to 22,879 dollars before freight across the ten, a tight range because the capacity sets the resin cost. Eight of the ten list NSF/ANSI 61 or FDA compliant resin.
For water at a specific gravity of 1.0 the 1.5 wall is a wide margin. Fertilizer, brine, and anything hotter than 120 degrees F or harder on resin is what the crosslinked 1.9 tanks are for.
Side by side, from the manufacturer records
| Tank | Type | Resin | Wall rating | Max temp | Manway | Certifications listed | Warranty | Freight class | Ship weight | Ship size | Listed |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ASTM Black Vertical Storage Tank | Vertical | Polyethylene | SG 1.5 | 120 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 400 | 1400 lb | 142" L x 142" W x 122" H | $15,609 |
| HDPE Vertical Liquid Storage Tank with ASTM Certification | Vertical | Polyethylene | SG 1.5 | 120 F | 18" Threaded Vented Manway | ASTM, FDA approved, ANSI/NSF 61 approved | 3 Year Warranty | OVS, NMFC 156600 | 1400 lb | 142" L x 142" W x 122" H | $15,613 |
| ASTM XLPE Black Vertical Storage Tank | Vertical | Crosslinked Linear Polyethylene | SG 1.5 | 140 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 400 | 1400 lb | 142" L x 142" W x 122" H | $16,919 |
| ASTM XLPE Vertical Storage Tank | Vertical | Crosslinked Linear Polyethylene | SG 1.5 | 140 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 400 | 1400 lb | 142" L x 142" W x 122" H | $16,919 |
| ASTM Black Heavy Duty Vertical Storage Tank | Vertical | High Density Linear Polyethylene | SG 1.9 | 120 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 300 | 1900 lb | 142" L x 142" W x 122" H | $21,109 |
| HDPE Vertical Liquid Storage Tank with ASTM Certification | Vertical | Polyethylene | SG 1.9 | 120 F | 18" Threaded Vented Manway | ASTM, FDA approved, ANSI/NSF 61 approved | 3 Year Warranty | OVS, NMFC 156600 | 1900 lb | 142" L x 142" W x 122" H | $21,114 |
| ASTM XLPE Black Heavy Duty Vertical Storage Tank | Vertical | Crosslinked Linear Polyethylene | SG 1.9 | 140 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 300 | 1900 lb | 142" L x 142" W x 122" H | $22,879 |
| ASTM XLPE Heavy Duty Vertical Storage Tank | Vertical | Crosslinked Linear Polyethylene | SG 1.9 | 140 F | 18" Threaded Vented Manway | FDA-compliant resin, NSF 61 | 3 Year Warranty | 300 | 1900 lb | 142" L x 142" W x 122" H | $22,879 |
| 15 Degree Plastic Cone Bottom Tank with Stand | Cone bottom | Polyethylene | SG 1.9 | none listed | 4200 lb | 144" L x 145" W x 150" H | $21,502 | ||||
| 15 Degree Plastic Cone Bottom Tank with Stand | Cone bottom | Polyethylene | SG 1.9 | 16" | none listed | OVS | 1600 lb | 150" L x 145" W x 144" H | $22,027 |
Scroll the table sideways; the tank name stays put.
What 7,000 gallons is on the ground
Wider than it is tall. The Snyder vertical is 142 inches across and 122 inches tall, a low, wide shape for this capacity. It still clears no 96 inch ceiling, but the 18 inch manway is within reach of a short platform.
A 12 foot circle of pad. The base is 142 inches across, about 110 square feet. The makers require the full bottom on a flat, level, compacted surface: a slab, a leveled ring of compacted crushed rock, or a steel ring filled and screeded.
Water alone weighs 58,380 pounds. Multiply 7,000 gallons by 8.34 pounds per gallon. The 1.5 specific gravity walls carry contents up to 87,570 pounds, and the 1.9 walls up to 110,922 pounds. Size the pad for the liquid you will actually store.
Choosing by what you will store
Potable and process water
Eight of the ten list NSF/ANSI 61 or FDA compliant resin. Black keeps algae down in the sun; white reads its level by eye. The comparison table shows which tanks carry the listing.
Browse potable and process water tanksRainwater harvesting
A 7,000 gallon tank catches an inch of rain from an 11,000 square foot roof. The low profile keeps the inlet near a single-story gutter line; add a first-flush diverter and a screened inlet.
Browse rainwater harvesting tanksFertilizer, brine and chemicals
Liquids heavier than water are what the 1.9 walls are for, and crosslinked resin takes the heat and the chemistry linear resin cannot. Check the liquid against the chemical tank recommender first.
Browse fertilizer, brine and chemicals tanksFire suppression reserve
Rural commercial sites keep a draft tank, and 7,000 gallons covers common sprinkler and dry-hydrant reserve figures with margin. Confirm the standard your authority having jurisdiction enforces before you order.
Browse fire suppression reserve tanksSee it move
Dimensions, fittings and shipping notes for the Snyder Industries 7000 Gallon HDPE Vertical Liquid Storage Tank with ASTM Certification. Every tank on this page has its own.
Videos and drawings
- ASTM Black Vertical Storage TankVideo, Drawing
- HDPE Vertical Liquid Storage Tank with ASTM CertificationVideo, Drawing
- ASTM XLPE Black Vertical Storage TankVideo, Drawing
- ASTM XLPE Vertical Storage TankVideo, Drawing
- ASTM Black Heavy Duty Vertical Storage TankVideo, Drawing
- HDPE Vertical Liquid Storage Tank with ASTM CertificationVideo, Drawing
- ASTM XLPE Black Heavy Duty Vertical Storage TankVideo, Drawing
- ASTM XLPE Heavy Duty Vertical Storage TankVideo, Drawing
- 15 Degree Plastic Cone Bottom Tank with StandVideo, Drawing
- 15 Degree Plastic Cone Bottom Tank with StandVideo, Drawing
Getting it to your site, honestly
A 7,000 gallon tank is an oversize load by width: 142 inches on the trailer, freight class 300, 400 or OVS. It moves on a flatbed with permits on some lanes, the driver does not unload it, and you need a crane with soft slings or a lift with long forks and a spreader.
Snyder ships from Lincoln, Nebraska; Enduraplas from the plants on its product pages. Listed prices are before freight. Put your ZIP in the freight cost estimator and you get a real LTL quote for this class and weight.
The honest limitation: width is the constraint. A site road or gate under 12 feet cannot take delivery, and no lift fixes that. Two narrower tanks plumbed together can be the answer, and we will say so on the phone.
What the carrier sees
- Freight class
- 300, 400, OVS
- NMFC
- 156600
- Ship size
- 142" L x 142" W x 122" H
- Ship weight
- 1400 lb
- Ships from
- Converse, Texas; Lincoln, Nebraska; Neche, ND
- Flatbed or step-deck; the driver does not unload.
- You need a forklift with long forks or a crane with soft slings.
- Listed prices are before freight. The quote is per ZIP and per lane.
Standards the manufacturers list
ASTM D1998, Standard Specification for Polyethylene Upright Storage Tanks, is the construction standard for these molds; it sets wall thickness by specific gravity rating.
NSF/ANSI 61, Drinking Water System Components, and FDA 21 CFR 177.1520 for the olefin polymers are listed by the makers on eight of the ten. We print what each maker lists for each tank and nothing stronger.
- FDA-compliant resinListed by the maker on 6 of 10: ASTM XLPE Black Heavy Duty Vertical Storage Tank, ASTM XLPE Black Vertical Storage Tank, ASTM XLPE Heavy Duty Vertical Storage Tank, ASTM XLPE Vertical Storage Tank, ASTM Black Heavy Duty Vertical Storage Tank, ASTM Black Vertical Storage Tank.
- NSF 61Listed by the maker on 6 of 10: ASTM XLPE Black Heavy Duty Vertical Storage Tank, ASTM XLPE Black Vertical Storage Tank, ASTM XLPE Heavy Duty Vertical Storage Tank, ASTM XLPE Vertical Storage Tank, ASTM Black Heavy Duty Vertical Storage Tank, ASTM Black Vertical Storage Tank.
- ASTMListed by the maker on 2 of 10: HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification.
- FDA approvedListed by the maker on 2 of 10: HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification.
- ANSI/NSF 61 approvedListed by the maker on 2 of 10: HDPE Vertical Liquid Storage Tank with ASTM Certification, HDPE Vertical Liquid Storage Tank with ASTM Certification.
Install day
Set a vertical on the finished pad with the manway reachable from a short platform; bolt a cone bottom's stand to its pad per the stand drawing. Leave the threaded vented manway as the vent unless you add a dedicated one.
Pipe every fitting with a flexible connection and support the pipe independently. Keep the drawing on the job; the 3D model on this page is traced from the hero tank's own drawing.
Tools: tank sizing calculator, chemical tank recommender, state regulations. Related: all Snyder tanks, vertical tanks, 10,000 gallon tanks.
Questions we get about 7,000 gallon tanks
How much does a 7,000 gallon plastic tank cost?
Listed at 15,609 to 22,879 dollars before freight on this page, by wall rating and resin. Freight is quoted separately to your ZIP because an oversize flatbed load prices by lane.
Why is the 7,000 gallon tank so wide?
Snyder's mold trades height for footprint: 142 inches across and 122 tall. If you have width and not height, this is the tank; if you have height and not width, look at the 8,000 gallon page.
Which ones are rated for drinking water?
Eight of the ten list NSF/ANSI 61 or FDA compliant resin; the comparison table and each card show the listing.
Ready to size it?
Call 866-418-1777 and talk to a tank specialist, run the freight cost estimator for a real quote to your ZIP, or let Find My Tank narrow it by what you store and where it goes.
