Snyder Industries 7000 Gallon ASTM XLPE Black Heavy Duty Vertical Storage Tank

The duty: a dense load under a low ceiling

Put the two requirements side by side and this tank is the short list. The liquid is heavier than water, so the wall has to be rated for it: 1.9 on this sheet, 110,922 pounds of allowed contents. The building is short, so the tank has to fit: 122 inches, ten feet two inches, which goes under a shed roof, inside a low chemical bay, under a pipe rack, and into a lot of older buildings that were never drawn with bulk storage in them. Who buys it: wastewater plants adding a dense coagulant inside an existing structure, metal finishers and platers with process solutions, mineral processors, and blenders with a low warehouse and a wide floor. The delivery is easy, which is the quiet reason people like this shape. The hose goes to a manway a little over ten feet up, reached on a fixed ladder from the molded ladder lugs and a small platform rather than a tower, and the driver is off the pad quickly. What you give back is floor. A 142 inch circle is nearly twelve feet across, and every pound of the 58,380 pounds of water or the 110,922 pounds the rating allows bears on that whole circle, because a molded floor carries on its floor and nothing else. That makes the slab the main structural decision: engineered to the concrete pad sizing guide, level and in full contact, with a berm where the liquid is regulated, because a wide tank on a pad with one low corner loads that corner. Wind matters less on a low shape, which is exactly why people skip the bands; band it anyway. Black passes no light to the liquid and hides the level, so the gauge is a sender. Check 7,000 gallons against the draw and the delivery interval in the tank sizing calculator, and take the reserve and freeboard from the tank sizing guide.

The 5300700 shell and the tall alternatives

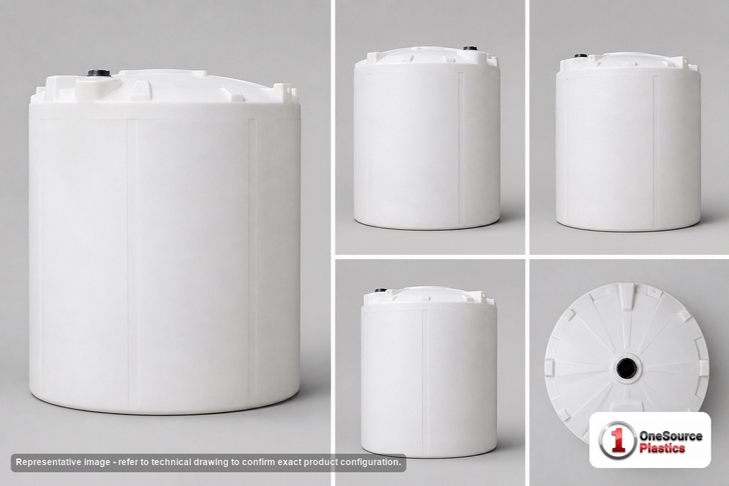

Within the shell the weights split the ratings: 1,900 pounds on the heavy-duty walls, 1,400 pounds on the lighter ones, each rated as its own sheet says, with the same 7,000 gallons on the same 142 by 122 inch body throughout. This page is the heavy wall, and it is the one to buy for a dense liquid; the 5300700N46 is the honest choice for anything the lighter rating covers, and it is easier to set. When the floor is the scarce thing instead of the ceiling, the 7140000C26 puts nearly as much volume on a 120 inch circle at 153 inches, and the 7440000N40 stacks 7,500 gallons into a 102 inch circle 234 inches tall. One more comparison worth making on paper: the lighter wall in this shell is not listed at the same freight class as this one, so quote each on its own sheet.

Two rows look the same? The difference is the wall; call 866-418-1777 with the liquid and we will say which, or ask for a quote on both.

Ten feet of head is all the suction you get

• Suction: the sheet lists the outlet as 28, which is a field value, not a pipe size, so no dimension is read from it. Name the liquid, the flow and the pipe material at order and the bulkhead, gasket and bolting are matched to the duty, with a flexible connector to hard pipe and the first valve carried on a stand off the pad.
• Prime: a 122 inch column is the shortest in this batch, so the pump placement stops being a preference and becomes the design. Below the outlet, close to the tank, short straight suction, and no optimistic horizontal run to a pump house across the pad.
• Low level: with less head there is less warning before a pump starts pulling air, so the low-level cutout is set with margin and wired to stop the pump. On a dense liquid a dry run costs a seal at best.
• Access: 18 inch threaded, vented manway, 122 inches up, with ladder lugs molded in. Fill down a dip tube to the floor so the stream is not splashed into the headspace, and run the vent outdoors, sized to the delivery pump.
• Service limit: 140 F / 60 C.

This sheet lists a single flange line, where most of the family lists two, so side piping has one place to go and it gets planned before the tank is set rather than after the pipe fitter arrives. The other consequence of a reachable manway is human: this is the tank people open because they can, and every opening is vapor out and weather in. Keep it closed between deliveries, name the one liquid in paint on the wall, and put a light on the band above the liquid line whenever the lid is off, because that band sees vapor and sun and never sees liquid. Where it freezes, trace or wrap the valve and the first run of pipe and leave the body to ice from the top down.

Low buildings that still take a tanker

A wastewater plant fitting a dense coagulant into a chemical room with a low deck, a plating shop with process solutions and a short bay, a mineral processing site, a blender storing concentrate under a shed roof. Whether the wall material suits the liquid is the question worth settling first, and the cross-linking and chemistry duty article settles it properly, including the cases where cross-linked polyethylene is more than the duty needs. Water sits well inside this rating, but a fire reserve is sized and freeze-protected against its own standard rather than against a storage tank's, which the fire water reservoir design guide explains before anyone assumes a chemical tank can do that job.

Wide load out of Lincoln at class 300

Lincoln, Nebraska is the plant on this sheet and the freight class is 300 as listed, with the NMFC field blank. The number the carrier cares about is the 142 inch diameter: at nearly twelve feet across this rides wide rather than tall, which is a different permit and sometimes a different truck than the slim tanks in the same volume range, so give the desk the diameter first. Price the lane through the freight cost estimator, and read the listed price as before freight. Unloading is a crane or a loader with long forks and slings under the body, 1,900 pounds, nothing through the manway. Fill it with water to the manway and hold it while someone walks the pad edge, watching for a low corner taking more than its share, then drain and dry before the chemistry. Keep the pallet if it comes on one: a tank nearly twelve feet across is far easier to move a second time on the frame it arrived on. Mark the vent and the outlet on the outside of the shell so nobody caps the wrong one in the dark.
