10000 Gallon Plastic Water Storage Tank: Complete Buyer's Guide
10,000-gallon black water storage tank built for safe potable water storage. Manufactured by Norwesco from virgin linear polyethylene (HDPE) rated to handle liquids up to 9.2 pounds per gallon. FDA approved for contact with potable water, ensuring safe storage for drinking water and food-grade liquids.
Specifications at a Glance
Every figure below is pulled straight from the live product record for this exact tank — the same data on the product page, so what you read here and what you buy never disagree.
Standards & Materials
- ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks. Governs wall-thickness and hydrostatic design for vertical rotomolded poly tanks of this class.
- FDA 21 CFR 177.1520 — Olefin polymers. The food-contact regulation the FDA-grade resin in this tank is compounded to meet.
- Specific gravity rating 1.1 — the tank is engineered for liquids up to 1.1× the density of water (water is about 8.34 lb/gal). Confirm your fluid’s SG before storage.
Product Overview
The 10,000 Gallon Plastic Water Storage Tank is bulk potable storage on a scale that changes how a property operates. Ten thousand gallons is a serious fire-protection reserve, a ranch or nursery water bank, a community well buffer, or a rainwater-harvest cistern that carries through a long dry stretch. At nearly fourteen feet tall and almost twelve feet across, this is a permanent fixture you site once and build around.
It is rotationally molded by Norwesco in one continuous piece from virgin linear polyethylene, so even at this volume there is not a single seam or weld in the shell. The tank is rated to 1.1 specific gravity for water and water-based liquids up to 9.2 pounds per gallon, with a 120 F / 48 C service ceiling. The black pigment matters more here than on any small tank: it blocks the light that would otherwise turn ten thousand gallons into an algae bloom, and the carbon loading gives the wall its maximum defense against years of sun.
Empty, the tank weighs 1,578 pounds; full at 1.1 SG it bears down at roughly 93,318 pounds — over 46 tons that demands a professionally engineered foundation. The factory 2-inch NPT outlet feeds your distribution, and the 22-inch lid is wide enough for confined-space entry to clean and inspect the interior. Norwesco's 3-year warranty against manufacturing defects covers the tank, and we re-inspect each one before it leaves us.

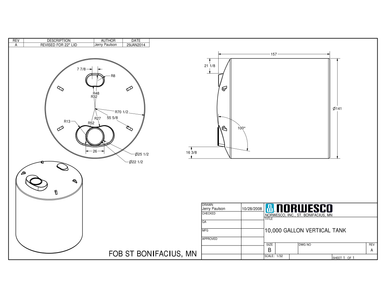

Technical Drawing
Official Norwesco technical drawing — 10000 Gallon Plastic Water Storage Tank
Key Features and Specifications
- 10,000-gallon capacity — sized for safe potable water storage
- Constructed from virgin linear polyethylene (HDPE) with 1.1 specific gravity rating — handles liquids up to 9.2 lbs/gal
- 160" tall x 141" diameter — compact vertical footprint
- 1578 lbs empty, approximately 93,318 lbs when full at rated specific gravity
- 2 NPT outlet fitting — factory installed and leak-tested
- 22" lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- 3 Year Warranty from Norwesco against manufacturing defects
- UV-resistant black pigmentation provides maximum outdoor durability and inhibits algae growth in stored liquids
- Rated for continuous service up to 120 F / 48 C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Norwesco — a leading name in rotomolded polyethylene tanks
- Large tanks require professional installation. Ensure the pad is level within 1 inch across the full diameter and that all piping connections allow for thermal expansion
- Ships via dedicated freight carrier due to oversized dimensions — contact us for delivery timeline and site access requirements
Installation and Setup Guide
At forty-six tons full, a 10,000-gallon tank is a civil-engineering project, not a delivery you wheel into place. Get the foundation right and it stands for decades; get it wrong and the load will find every weakness in the ground beneath it. Plan on professional installation from the slab up.
The Engineered Foundation
This tank needs a reinforced concrete pad designed by a structural engineer for roughly 93,318 pounds of distributed load over its twelve-foot footprint. The slab must be flat within one inch across the full 141-inch diameter — a tolerance that sounds loose until you realize a high spot under a tank this heavy concentrates tons of force into a few square inches of wall. Cure the concrete fully before the first fill, and grade the surrounding ground so water drains away from the pad and never undermines it.
Setting and Plumbing
The empty shell weighs over fifteen hundred pounds and ships oversized, so a crane or large forklift places it. Once it is down, plumb the 2-inch outlet with schedule 80 PVC and build thermal expansion into the run — a tank this tall moves measurably as the seasons swing, and the piping has to flex with it rather than fight it. Independently support every line so its weight never hangs on a tank fitting.
Venting at Scale
A large-diameter vent is not optional here. When this tank fills or empties at distribution rates, enormous volumes of air move through the lid, and an undersized breather will let the shell pull a vacuum and buckle. Fit a vent matched to your maximum fill and draw rates, screened against debris, in the 22-inch lid. The same lid serves as the entry point for periodic interior inspection.
Maintenance and Long-Term Care
A 10,000-gallon potable reservoir serves a lot of people or animals, so its maintenance is closer to operating a small water system than tending a garden tank. The routine is built around an annual interior service and frequent checks of the structure carrying all that weight.
Structural Monitoring
- Foundation: Inspect the slab and the ground around it every few months for cracking, settlement, or erosion. At forty-six tons, a corner that drops even slightly redistributes load in ways the tank was never meant to carry.
- Wall: Walk the full circumference looking for bulging or distortion, especially low on the wall where hydrostatic pressure peaks. The black surface will chalk before it degrades; sudden bulging is a foundation or overfill warning.
- Outlet and vent: Check the 2-inch fitting for weeping and confirm the large vent is clear. A blocked vent on a tank this size is the fastest route to a collapsed shell.
Annual Interior Service
Once a year, take the tank offline, drain it, and clean the sediment that has settled across the floor. The 22-inch lid permits confined-space entry — follow proper confined-space procedures, never enter alone, and ventilate before going in. Sanitize with the potable standard of a quarter cup of unscented bleach per fifteen gallons, hold the chlorinated charge for two hours, then flush thoroughly before returning the tank to service.
Sun and Climate
The black pigment and resin UV package are built for permanent outdoor exposure, but in extreme-sun regions an annual look at the sun-facing wall catches early chalking. In freezing climates, keep the tank in active turnover so a static volume cannot ice; a reservoir this large rarely freezes solid in use, but a winterized idle tank should be drained.
Alternatives and Comparisons
Ten thousand gallons is a threshold size, and the decision is usually one big tank versus a battery of smaller ones.
One large tank vs. multiple smaller tanks: A single 10,000-gallon tank is the lowest cost per gallon and the simplest plumbing, but it is a single point of failure and a major foundation commitment. Two or three 3,000- to 5,000-gallon tanks manifolded together cost more per gallon and take more space, yet they let you isolate one for cleaning while the others stay in service, and they spread the foundation load. For fire reserves and steady bulk supply the single large tank usually wins; for systems that can never go fully offline, the multi-tank array earns its premium.
Other 10000-Gallon Options
Frequently Asked Questions
How long will the 10000 Gallon Plastic Water Storage Tank last?
On a properly engineered foundation and within the 1.1 SG and 120 F limits, a tank this size readily reaches 15 to 20 years and often more in steady potable service. The black UV-loaded wall is built for permanent sun exposure, and the seamless shell has no joints to fail. Longevity at this scale lives and dies on the foundation — a well-built slab is the single biggest factor in how long the tank lasts.
What chemicals can I store in this tank?
It is an FDA-approved potable-water tank, so its purpose is bulk drinking water, fire reserve, agricultural supply, and rainwater harvesting. It also holds water-based liquids up to its 1.1 specific-gravity rating. It is not intended for fuels, solvents, or aggressive chemicals; a 1.5-SG liquid tank with verified compatibility is the right tool for those.
What kind of foundation does a 10000-gallon tank need?
A full 10,000-gallon tank weighs about 93,318 pounds — over 46 tons. That requires a reinforced concrete slab engineered by a structural professional and flat within one inch across the full diameter. This is not a gravel-pad installation; the foundation is the most important part of the entire project and should be designed and inspected before the tank arrives.
Does this tank come with a warranty?
Yes. Norwesco provides a 3-year warranty against manufacturing defects in materials and workmanship under normal use. It covers molded-in faults, not damage from an inadequate foundation, overfilling past the rated specific gravity, incompatible chemicals, or impact. Retain documentation and photographs of the engineered foundation and installation.
Can I install this tank underground?
No. A vertical polyethylene tank of this scale is engineered for above-ground service and cannot withstand the soil pressure of burial, which would collapse it and void the warranty. Below-grade storage requires our purpose-built underground cisterns, which are ribbed and reinforced for that environment.
Buying Considerations
Three commitments come with a 10,000-gallon tank. First, the engineered foundation: budget for a structural engineer and a reinforced slab sized for 93,318 pounds before you order the tank, because the pad must be ready and cured when it arrives. Second, site access — this oversized shell needs a clear path for a flatbed and a crane or large forklift to set it. Third, your water system: confirm the 2-inch outlet and the large vent suit your distribution and fill rates. This tank ships on a dedicated carrier; we coordinate delivery timing and access to your ZIP.
