10000 Gallon Vertical Liquid Storage Tank: Complete Buyer's Guide
10,000-gallon white liquid storage tank built for agricultural chemical and fertilizer storage. Manufactured by Norwesco from virgin linear polyethylene (HDPE) rated to handle liquids up to 12.5 pounds per gallon. FDA approved for contact with potable water, ensuring safe storage for drinking water and food-grade liquids.
Specifications at a Glance
Every figure below is pulled straight from the live product record for this exact tank — the same data on the product page, so what you read here and what you buy never disagree.
Standards & Materials
- ASTM D1998 — Standard Specification for Polyethylene Upright Storage Tanks. Governs wall-thickness and hydrostatic design for vertical rotomolded poly tanks of this class.
- FDA 21 CFR 177.1520 — Olefin polymers. The food-contact regulation the FDA-grade resin in this tank is compounded to meet.
- Specific gravity rating 1.5 — the tank is engineered for liquids up to 1.5× the density of water (water is about 8.34 lb/gal). Confirm your fluid’s SG before storage.
Product Overview
The 10,000 Gallon Vertical Liquid Storage Tank is the size at which bulk chemical buying starts to pay for itself. Ten thousand gallons is roughly a full tanker delivery of liquid fertilizer or treatment chemical, so a tank this size lets an operation take product at the lowest per-gallon price and draw it down across a season rather than ordering in small, marked-up loads. It anchors a fertilizer plant, a large farm, or an industrial water-treatment facility.
Norwesco rotationally molds the body in one seamless piece of virgin linear polyethylene rated to 1.5 specific gravity, covering agricultural and industrial liquids up to 12.5 pounds per gallon. The translucent natural-white wall lets an operator gauge inventory from the ground and reflects sunlight to keep the contents cooler, with UV inhibitors compounded into the resin and a 120 F / 48 C service ceiling.
Standing 160 inches tall on a 141-inch base, it weighs 1,960 pounds empty and reaches roughly 127,060 pounds full at 1.5 SG — over sixty tons that mandates a professionally engineered foundation. The outlet is a 3-inch fitting supplied with a 2-inch reducer and a 3-inch siphon tube, so it plumbs large for tanker transfer or steps down to existing lines. The 22-inch lid permits interior access. A 3-year Norwesco manufacturing-defect warranty stands behind the tank.
Technical Drawing

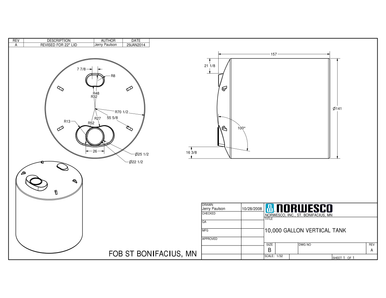

Official Norwesco technical drawing — 10000 Gallon Vertical Liquid Storage Tank
Key Features and Specifications
- 10,000-gallon capacity — sized for agricultural chemical and fertilizer storage
- Constructed from virgin linear polyethylene (HDPE) with 1.5 specific gravity rating — handles liquids up to 12.5 lbs/gal
- 160" tall x 141" diameter — compact vertical footprint
- 1960 lbs empty, approximately 127,060 lbs when full at rated specific gravity
- 3" with 2" Reducer and 3" Siphon tube NPT outlet fitting — factory installed and leak-tested
- 22" lid opening for fill, venting, and interior access
- FDA approved for potable water and food-grade liquid contact
- 3 Year Warranty from Norwesco against manufacturing defects
- Translucent white walls allow visual level monitoring without opening the tank and reflect sunlight to keep contents cooler
- Rated for continuous service up to 120 F / 48 C
- Seamless one-piece rotational molding — no seams, no welds, no leak points
- Manufactured by Norwesco — a leading name in rotomolded polyethylene tanks
- Large tanks require professional installation. Ensure the pad is level within 1 inch across the full diameter and that all piping connections allow for thermal expansion
- Ships via dedicated freight carrier due to oversized dimensions — contact us for delivery timeline and site access requirements
Installation and Setup Guide
At sixty tons full, a 10,000-gallon chemical tank is civil engineering. The economics that justify the tank only hold if the foundation is right, because a failure at this scale is both a structural and an environmental event.
Engineered Containment Foundation
A structural engineer must design a reinforced concrete slab for roughly 127,060 pounds over the 141-inch footprint, flat within one inch across the full diameter. For chemical service that slab is also your secondary containment — sized and curbed to hold the regulated fraction of ten thousand gallons. Cure the concrete completely before filling, and grade the entire site so a spill is captured, not lost to groundwater.
Placement and Tanker Plumbing
The empty shell weighs nearly a ton and ships oversized, so a crane sets it. Plumb the 3-inch outlet for tanker-rate transfer in schedule 80 PVC or stainless rated for your chemistry, using the supplied reducer to tie into 2-inch lines where needed. Build thermal expansion into every run — a sixteen-foot tank moves measurably with temperature — and carry each line on its own supports.
Venting for High Flow
Filling from a tanker moves enormous volumes of air. Fit a large pressure/vacuum relief vent in the 22-inch lid, rated for your chemical and sized to tanker fill and draw rates, so the shell never pulls a vacuum or pressurizes during a fast transfer. At this scale, the vent is a critical safety component, not an afterthought.
Maintenance and Long-Term Care
A 10,000-gallon chemical tank is monitored like the major asset it is: structural surveillance of the foundation under sixty tons, and a rigorous chemical-compatibility regime.
Scheduled Inspection
- Foundation and containment: Inspect the slab, curbing, and surrounding grade for cracks, settlement, and erosion regularly. At sixty tons a settling section redistributes load dangerously, and compromised containment is a compliance failure.
- Wall: Walk the full circumference and read the lower wall, where hydrostatic pressure peaks, for bulging or stress whitening, plus any swelling that flags a compatibility issue with the stored product.
- Outlet and vent: Check the 3-inch fitting, reducer, and siphon for weeping or etching, and confirm the large relief vent is clear and rated for the current chemical.
Switching Chemistries
Take the tank offline, drain through the siphon, and use the 22-inch lid for interior access under confined-space procedures to clean before decontaminating per the incoming product's specification. Verify the new chemical on a polyethylene compatibility chart before refilling. This vessel has no potable role; the entire cleaning regime is about compatibility and carryover.
UV and Heat
The compounded UV package protects the large wall through years of sun; inspect the sun-facing side annually in high-UV regions. The reflective white finish moderates the internal temperature of a tall, large-surface tank, helping keep volatile products' vapor pressure manageable through summer.
Alternatives and Comparisons
At 10,000 gallons the question is consolidation versus redundancy, framed by the truckload economics that justify the size.
One tanker-sized tank vs. multiple tanks: A single 10,000-gallon tank captures a full tanker delivery at the best price and the simplest plumbing, but it must be emptied and decontaminated to change products and represents one large foundation. A pair of 5,000-gallon tanks costs more per gallon and needs more pad, yet it lets you take partial loads of two chemistries and service one while the other runs. For a single high-volume product bought by the tanker, the big tank is the clear economic winner.
Other 10000-Gallon Options
Frequently Asked Questions
How long will the 10000 Gallon Vertical Liquid Storage Tank last?
On a properly engineered containment foundation and within its 1.5 SG and 120 F ratings, this tank readily reaches 15 to 20 years in bulk chemical service. The compounded UV package and seamless shell are built for it; the foundation and chemical compatibility decide the rest. Used within spec on a sound slab, sixty tons of tank serves reliably for the long term.
What chemicals can I store in this tank?
With a 1.5 specific-gravity rating it accepts most liquid fertilizers, crop-protection chemicals, and industrial solutions up to 12.5 pounds per gallon. Confirm any product on a polyethylene compatibility chart first, as the resin shrugs off many acids and bases but can be harmed by some solvents and oxidizers. No fuels or flammables. It is bulk chemical-storage equipment, never a drinking-water tank.
What kind of foundation does a 10000-gallon tank need?
A full 10,000-gallon tank weighs about 127,060 pounds at 1.5 SG — over sixty tons. That demands a reinforced concrete slab engineered by a structural professional, flat within one inch across the full diameter and serving as secondary containment. This is not a gravel-pad project; the foundation is the most important element and must be cured before the tank arrives.
Does this tank come with a warranty?
Yes. Norwesco offers a 3-year warranty for manufacturing defects in materials and workmanship under normal use. It does not cover incompatible-chemical attack, exceeding the rated specific gravity, a poor foundation, or impact. Keep documentation and photographs of the engineered containment foundation and installation.
Can I install this tank underground?
No. A vertical tank of this scale is engineered for above-ground service and cannot resist the soil pressure of burial, which would collapse it and void the warranty. Below-grade storage requires purpose-engineered, reinforced underground structures, not an above-ground tank.
Buying Considerations
Three commitments come with a 10,000-gallon chemical tank. First, the engineered containment foundation: a reinforced slab sized for sixty tons, designed by a structural professional and curbed for containment, ready and cured before delivery. Second, site access — the oversized shell needs a clear approach for a flatbed and a crane. Third, the stored chemical, confirmed compatible with polyethylene for the 1.5 SG rating on a compatibility chart. The tank ships on a dedicated carrier; we coordinate delivery and access to your ZIP. Listed at $13,741.16 before freight.
