A 1000 gallon low profile two compartment septic tank for the Carolinas

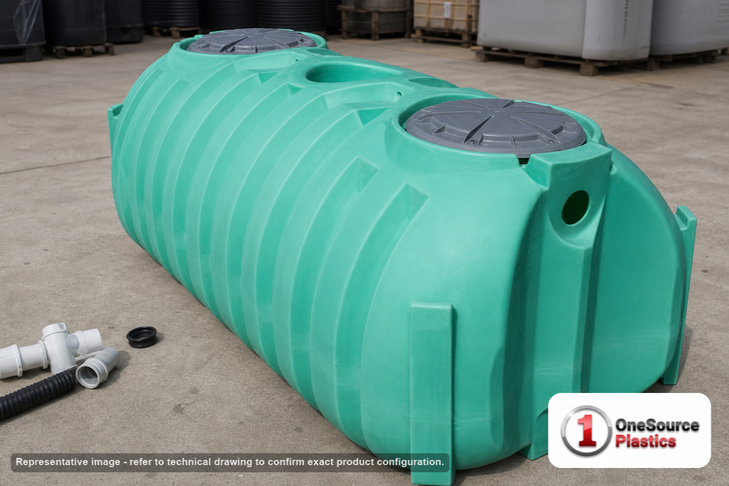

The Norwesco 1000 gallon two compartment septic tank for SC and NC, part number 43510, is a green polyethylene tank 127 inches long, 60 inches wide and 51 inches tall, weighing 350 lb empty. It is made at Norwesco's Griffin, Georgia plant and Norwesco lists its state septic approvals for North Carolina and South Carolina, so this is the low profile two compartment tank to order for an install in either state. Low profile means the tank is long and shallow, which keeps the excavation short where a high water table, clay or a shallow sewer line makes a deep hole a problem. Two compartments split the tank into a settling chamber and a polishing chamber ahead of the drainfield. Loose plumbing means the 4 inch gasketed PVC tee assemblies for the inlet and outlet ship with the tank for the installer to fit on site. Access is through a 20 inch gasketed manway. Norwesco lists the tank as IAPMO approved, backs it with a 5 year warranty, and sets the service limit at 130 F.
Does your county accept this tank? Call 866-418-1777 with the county and we will check before you order, or get freight to your ZIP and add it to your cart above.
Why two compartments, and why low profile
The first compartment takes the raw flow and holds most of the solids; the second takes the settled liquid and gives any remaining solids a second chance to drop before the effluent leaves. That protects the drainfield, which is the expensive part of the system and the part that fails first when solids get through. The low profile shell is for the ground where the dig is the problem: coastal plain lots with the water table a few feet down, red clay that holds water in the hole, or a house whose sewer line leaves shallow. At 51 inches tall plus cover the tank sits in a hole a small excavator digs quickly, and the whole system can stay higher where the drainfield is near the surface. The county health department issues the permit, sets the size for your bedroom count and decides whether an effluent filter or a riser is required; call them with the part number before you order and we will send any documentation they ask for. Our note on single compartment versus two compartment septic tanks goes through the trade-offs, and Norwesco IAPMO and CSA septic tank approvals explains what the listings cover.
Openings and fittings
- Inlet. A 4 inch gasketed PVC tee assembly, shipped loose. The inlet tee turns the incoming flow downward so the scum layer in the first compartment stays undisturbed. The inlet sits higher than the outlet.
- Outlet. A 4 inch gasketed PVC tee assembly, shipped loose, in the second compartment. It draws from below the scum and above the sludge. If your code calls for an effluent filter here, tell us and we will add one to the order.
- Manway. A 20 inch gasketed manway. Both compartments need pumping, so plan access to each; if the lid will finish below grade, ask us for the riser that brings it to the surface.

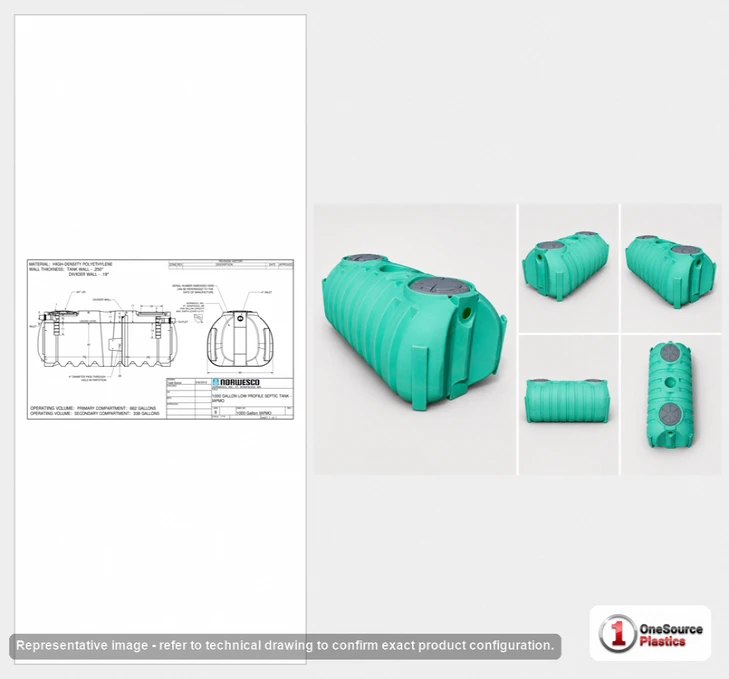

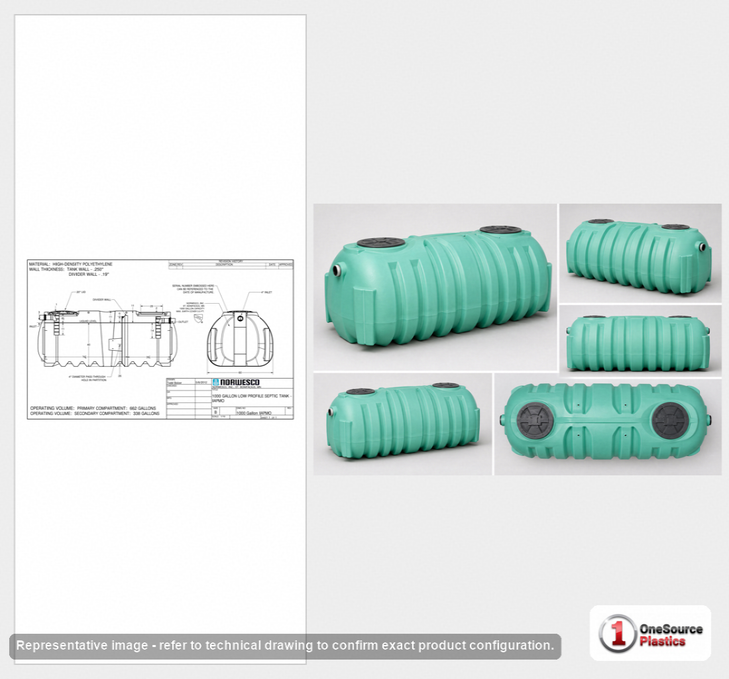

- Drawing. Norwesco's drawing, linked under Technical Drawing on this page, gives the invert heights and the baffle position you need to set the pipe grades. Our inlet, outlet and vent tie-in walkthrough covers the rest of the plumbing.
Setting it
Follow Norwesco's installation instructions for this tank: they set the bedding, the backfill material and the order in which you fill the tank with water while backfilling so the walls are supported from both sides. Never backfill an empty polyethylene septic tank, and never set one where vehicles will drive. Level the bedding on both axes before the tank goes in; a long shallow tank shows an out-of-level set at the outlet invert quickly. Fit the tees, connect the pipes, fill with water to the outlet, and then call for the inspection. The low profile tank field guide covers handling a long shallow tank on site.
Related tanks

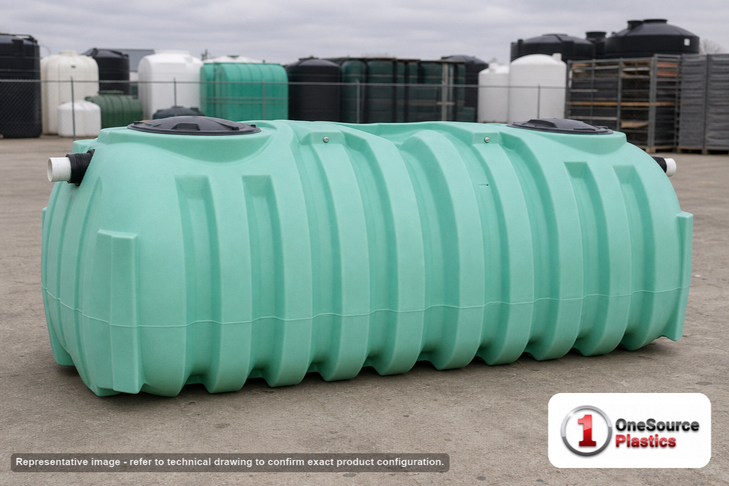

The same two compartment low profile shell for other states: the 1000 gallon low profile two compartment tank with side inlet. Single compartment versions: the 1000 gallon low profile one compartment tank and the version with a side inlet. For Florida: the 900 gallon and 1050 gallon Florida tanks.
Shipping and receiving
The tank ships LTL, 127 by 60 by 51 inches and 350 lb, from Norwesco's Griffin, Georgia plant, a short lane to either Carolina. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 43510 on the bill of lading, count both tee assemblies and the manway lid, and walk the shell for transit damage before the driver leaves.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Griffin, GA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 43510.
See this tank
Product video. Watch the Norwesco 1000 Gallon Two Compartment Septic Tank with Loose Plumbing and Low Profile Design - IAPMO Certified - For SC/NC video (65 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
