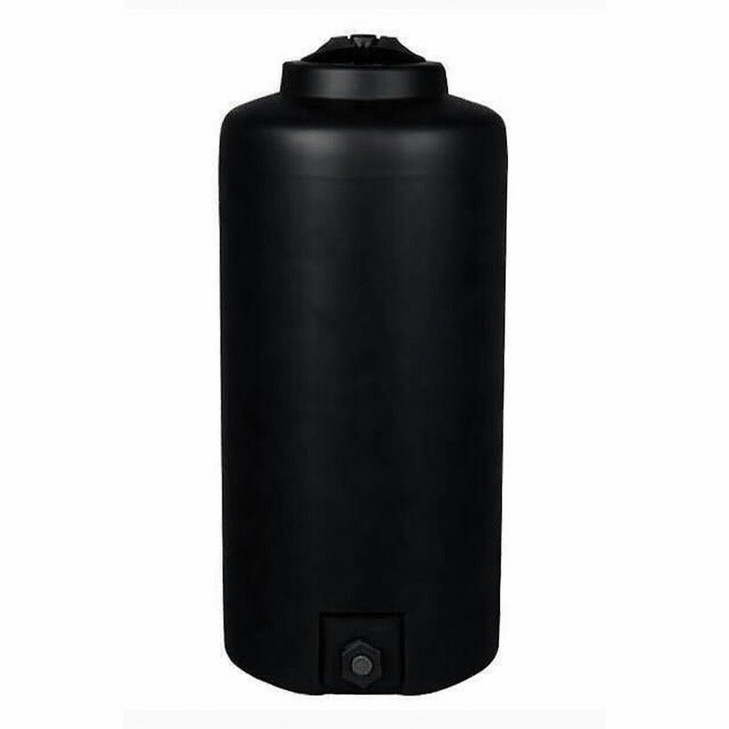

Norwesco 300 Gallon Black Vertical Storage Tank

Where a tall 300 gallon tank goes

Norwesco makes 300 gallons in two shapes. This is the tall one: 35 inches across and 79 inches tall, just over six and a half feet, so it keeps a small footprint in a pump house, a packing shed or a container and needs a ceiling to match. The short, wide 305 gallon tank linked below is the answer when height is the problem. The jobs are rainwater from a barn or shed roof, spray mix and liquid fertilizer at a fill point, a household water reserve on a slow well, stock water, and feed water or brine for a treatment plant. Full of water it weighs 2502 lb on a 35 inch circle, so it needs a flat, continuous, level base: a concrete pad, a sound slab or a compacted gravel pad with a sand cap, never soil. A tank this tall should be strapped or braced to a wall or post, because an empty one is easy to push over. Our guide to bearing surfaces under polyethylene tanks covers the pad. If the tank is a fire or drought reserve, read reservoir sizing on remote sites and freeze protection before you settle on one tank.

What goes in it

Water, liquid fertilizer and the treatment and cleaning chemicals that polyethylene handles are the normal loads. Check anything else in our chemical compatibility guide first, and ask us about anything that is not listed. Liquids heavier than 1.5 times water need the heavy duty tanks linked below, and nothing hotter than 120 F belongs in it. The tank sizing calculator and tank sizing guide confirm the volume before you order.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. A 2 inch valve, camlock or hose adapter threads straight into it. Fit the valve before the first fill and support it and the first length of pipe on their own so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top, 79 inches up: wide enough to fill from a hose or a pump, to drop a float or a suction line through, and to reach inside to clean. The vent lets the tank breathe as the level changes. You will want a step or a platform to use it.
3. Extra fittings. An overflow near the top, a return line or a second draw-off is a bulkhead fitting through the wall. Tell us before the order and we quote it with the tank. Dry-fit, then hand tight plus a quarter turn.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, gives the outlet height and the manway position.

Sizes nearby

The same tank in white, where you want to read the level through the wall: the 300 gallon white vertical tank, and a second 300 gallon vertical tank in a different footprint. The short, wide alternative: the 305 gallon black vertical tank. Built for heavier liquids: the 265 gallon heavy duty vertical tank and the 300 gallon heavy duty vertical tank. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL at freight class 300 from the nearest of Norwesco's plants, which include Fairfield, Texas; Griffin, Georgia; Hanford, California; Sheldon, Iowa; Owego, New York; Washington Court House, Ohio and Washougal, Washington. On the pallet it is 35 by 35 by 79 inches and 79 lb, and at that height it often travels on its side. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or send a written quote request for a job that needs paperwork. At the tailgate, check the part number against 40600 on the bill of lading, look along the full height of the wall for transit scuffs or cracks, make sure the manway lid is on and turns freely, and fill the tank with water the first time so any problem shows up with something harmless in it.

Questions before you order? Call 866-418-1777.
