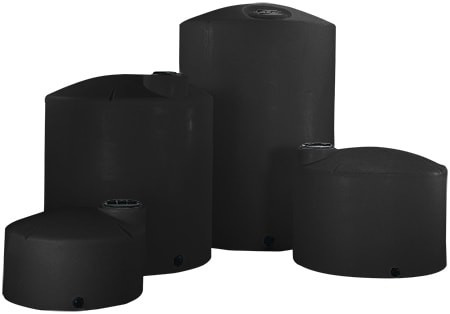

A 4000 gallon black vertical tank for water, rainwater and fertilizer
The Norwesco 4000 gallon black vertical storage tank, part number 40851, is a polyethylene tank 102 inches in diameter and 125 inches tall, weighing 753 lb empty. It comes with a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer as the outlet and a 16 inch threaded vented manway on top. Norwesco rates it for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 4000 gallons of water weighs 33360 lb. The resin is FDA compliant per Norwesco, Norwesco lists its water tanks under NSF/ANSI 61 (the listing names no models), the service limit is 120 F, and Norwesco backs it with a 3 year warranty. Black keeps light out of the contents, which stops algae in stored water.
Is 4000 gallons the right size? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the daily draw and the refill interval.
Where it goes
Four thousand gallons is the size a rural household on hauled water, a small ranch, a market garden or a rainwater system on a large roof tends to land on: enough to ride out a dry week or a delivery gap, small enough to sit beside a building on a modest pad. The tank is just over ten feet tall on a circle eight and a half feet across, so it clears most open-sided barns and pole buildings and the manway is reached from a short ladder. Full of water it puts about 17 tons on the pad, which has to be flat, continuous and free of stones under the whole base. Our guide to sizing a concrete pad under an above-ground polyethylene tank covers that. For roof water, the first flush diverter sizing guide tells you how much of each rain to divert before it reaches the tank, and for a fire reserve the rural fire water reservoir guide explains what a polyethylene tank can do in that role.
What goes in it
Water, rainwater, liquid fertilizer and the common farm and treatment chemicals that polyethylene handles. At 1.5 specific gravity the heaviest full load is 50040 lb; a liquid denser than one and a half times water needs a heavy duty tank. Check anything other than water in our chemical compatibility guide first and keep the contents under 120 F. For the volume itself, the tank sizing calculator and tank sizing guide turn usage into gallons.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer, factory installed low in the wall. Pull the reducer for a 3 inch gravity line or pump suction; leave it in to plumb 2 inch. Support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top, wide enough to fill from a hose, drop a float in, and get a brush inside. The vent lets air in and out as the level changes; never plug it.
- Inlet. No separate inlet fitting is installed. If you want a fill fitting at a set height, tell us before the tank ships.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet position relative to the manway.
Sizes nearby
Same tank in white, for reading the level through the wall: the 4000 gallon white vertical tank. One size down is the 3600 gallon black vertical tank; one size up is the 4200 gallon black vertical tank. The colour swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL at freight class 300 from Norwesco's Owego, New York plant, 102 by 102 by 125 inches and 753 lb. It travels on a flatbed; have a forklift or a loader with straps, or four people and a soft landing, ready to unload it. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 40851 on the bill of lading, walk around the shell for transit damage before signing, and fill it with water the first time before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Owego, NY. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40851.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
