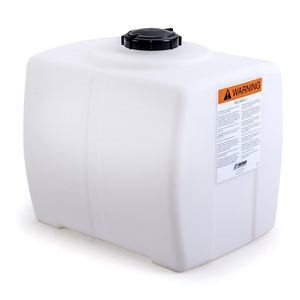

Snyder Industries 30 Gallon HDLPE Pest Control Operator Tank in White

Bought for the weight, not the gallons

Thirty gallons is not a hard number to find. Sixteen pounds is. That is the reason this part exists and the reason to choose it: everything about the tank follows from an empty weight one person lifts with one hand under each end, out of a truck bed, onto a bench, into a wash bay and back. On a service vehicle that is not a convenience, it is what decides whether the tank actually gets rinsed at the end of a day or gets rinsed when somebody has time. A tank that comes off gets cleaned; a tank that stays on gets topped up. The footprint follows the same logic: 24 inches by 19 is small enough that a bed carrying a bigger working tank still has room for this one, which is how most operators end up owning it. Two small dedicated tanks beat one shared tank whenever the products must not meet, and at this weight and this size the second tank costs almost nothing in space or handling. The 23 inch height keeps the rim below the bed rail on most vehicles, which matters for the strap line and for what a low branch or a garage door can catch. What the size costs you is range: 30 gallons of water is 250 pounds on the sheet and 375 pounds at the rating, and on a long route it is a refill in the middle of the day. Decide that with arithmetic rather than optimism. Run the stops, the rate and the refill distance through the tank sizing calculator, and take the freeboard and surge allowance from the tank sizing guide, because a small rectangular tank half full moves its whole load at every stop sign.

The 30 gallon tank and the 35 gallon feed station beside it

The one part the sheet lists beside this tank is not a portable tank at all, and the contrast is worth the space. SII-1000123CF42 is a 35 gallon cross-linked polyethylene chemical feed station tank with a containment basin, at 47 by 36 by 36 inches and 72 pounds. It holds a similar volume and it is a completely different answer to the problem: a fixed station with a basin under it, built to stand in one place beside a dosing pump and catch what the tank lets go, listed at 72 pounds against this tank's 16 and at 47 by 36 inches in plan against this tank's 24 by 19. Neither replaces the other. Buy the station when the liquid stays in one room, feeds a pump and needs containment under it. Buy this tank when the liquid goes to the work: on a truck, on a skid, on a trailer, off again at the end of the day. We name the station as the sheet names it and claim no portable or applicator duty for it, and nothing about a containment basin transfers to this tank, which has none. This sheet lists no other portable sibling, so if you need a bigger version of this body, ask us and we will put the right part in front of you rather than guess from the family.

Not sure which one? Tell us the liquid, the site and the ceiling height at 866-418-1777, or request a written quote with freight to your ZIP.

Filling and venting through 6 inches

• The air path first: 6 inches is the only opening on the sheet and it does two jobs. It is where the liquid goes in and it is where air comes back while a pump or a lance draws the tank down. A small body empties fast, so a tight lid with no clear vent path will pull the wall inward quickly. Keep the vent path clear, look at it whenever the lid is off, and close the lid before the vehicle moves.
• Filling: hose end below the rim, attended, and measured rather than guessed. On a 30 gallon tank a few gallons is a large share of the load, so a marked fill level is worth more here than it is on a big tank.
• Cleaning: 6 inches lets a wash wand in and not much else. The rinse is a flushing routine rather than a scrubbing one, which is the practical reason to keep one tank to one product and to label it in words.
• Outlet and pump: the sheet publishes no outlet, no inlet and no bulkhead, so none is claimed. The suction, the valve and the pump are specified with the order or fitted by whoever mounts the tank, and the pump belongs below the tank's low point with a short falling run into it. At 23 inches of body height there is very little standing head, so a self priming pump or a foot valve is the honest answer.
• Mounting: no tie-down point, no bracket and no load rating appears on the sheet. Continuous support under the full base, straps over the body at both ends, nothing driven through the tank: that is good practice, not a published rating, and we will not print a rating that does not exist.
• Ratings: a specific gravity of 1.5, 250 pounds of water, 375 pounds of max contents, and a service limit of 120 F / 48 C.

Name the liquid when you order and the fittings, gaskets and bolting are matched to it. This is written as a sprayer and applicator tank and no product is named for it anywhere on this page: what goes in the tank is the operator's decision, made against that product's own label and the licence it is applied under, and the label is the document that governs.

Two-handed lifts, tailgates and rinse duty

This size goes on pest control and lawn care vehicles as a second dedicated tank, on utility vehicles and compact tractors for spot work, on skid sprayers for turf, grounds, nursery and greenhouse duty, on right-of-way and fence line rigs, and in shops as a small transfer or rinse vessel. It is also the tank people buy for clean water beside a working tank, so there is always something to flush a lance with. The common thread is that it is carried rather than installed, and that is worth protecting: keep it out of the sun when it is empty, keep the lid on when it is not in use, and give it a home on the vehicle rather than letting it slide around a bed. A tank this light is easy to be careless with, and carelessness is the only thing likely to end its life early.

Sixteen pounds, three plants, one parcel

This part is molded at Chowchilla, California, Lincoln, Nebraska and Philippi, West Virginia. Three plants means three lanes and, for most addresses, a short one; ask which plant your order ships from before comparing rates. The sheet gives the freight class as UPS rather than a truck mode, under NMFC 156600, and shipments it at 24 by 19 by 23 inches, the same as the tank itself, so it moves as a parcel. Price it to your ZIP with the freight cost estimator; the listed price is before freight. Sixteen pounds arrives in one hand. Check it before it goes to work: look along the base for a true flat, put a light in through the 6 inch opening and look at the inside surface, and fit the lid before you carry it anywhere. Fill it with clean water on a level bench, leave it standing for an hour somewhere a drip will show, then rinse and mount it. Write the product name and the date on the tank the day it goes into service; on a small tank that gets lifted, swapped and borrowed, the writing is the only record anyone will find. Chalk the full-water line on the outside after the first fill; it is the level every later reading gets checked against.
