Snyder Industries 300 Gallon ASTM Black Heavy Duty Vertical Storage Tank

What buys a squat 300: wash bays, service beds and low sheds

The duty comes first on this one, because nobody buys a tank 46 inches across and only 51 inches tall by accident. It is bought by a wash bay that needs rinse water where a roof beam crosses at head height, by a shop putting a bulk liquid on a mezzanine or under a work platform, by a contractor who wants 300 gallons on the bed of a truck or on a skid a forklift can pick up whole, and by a plant replacing a row of drums with one vessel that still fits the space the drums were standing in. In every one of those jobs the reason is the same: the ceiling, the beam or the door header is closer than the tank is tall anywhere else in the family. The delivery looks like a parcel job more than a tank job. At 75 pounds empty it comes shipping at 46 inches by 46 inches by 51 inches on one pallet position, it comes off a liftgate rather than out of a crane, and two people can walk it to where it lives. That is the other half of why a squat 300 gets specified: no rigging, no permit, no crane day. Under it, the same discipline a bulk vessel gets. A rotationally molded floor bears on everything it touches and nothing else, so the pad, the steel stand or the truck deck under this tank is flat, level and continuous, with no bolt head, weld bead or shim carrying an edge, because full at the rating there are 4,754 pounds sitting on a 46 inch circle. The framework for that is in the concrete pad sizing guide, and a low wide tank is exactly where people decide it does not apply. Strap it anyway. A wide base makes this the hardest 300 in the family to tip, not an impossible one, and on a vehicle it gets restrained for the worst stop the truck will ever make. Where the liquid is regulated it stands inside containment sized to it. Run 300 gallons against your real draw and your refill interval in the tank sizing calculator, and take the reserve and the freeboard a warming liquid needs from the tank sizing guide.

One squat shell against three tall 300s

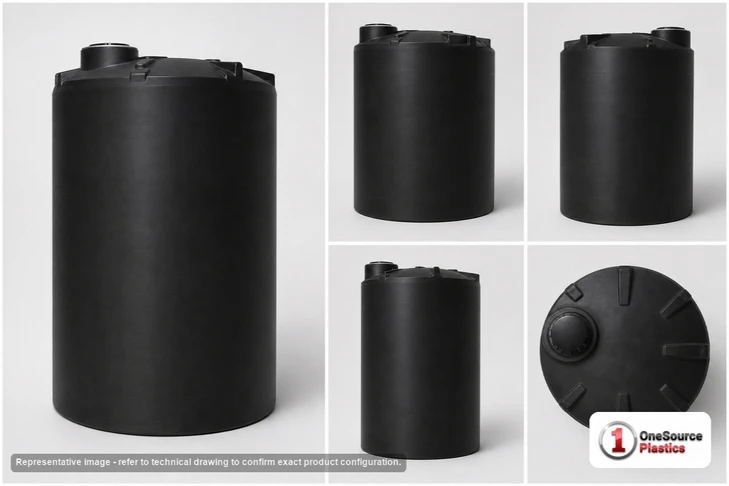

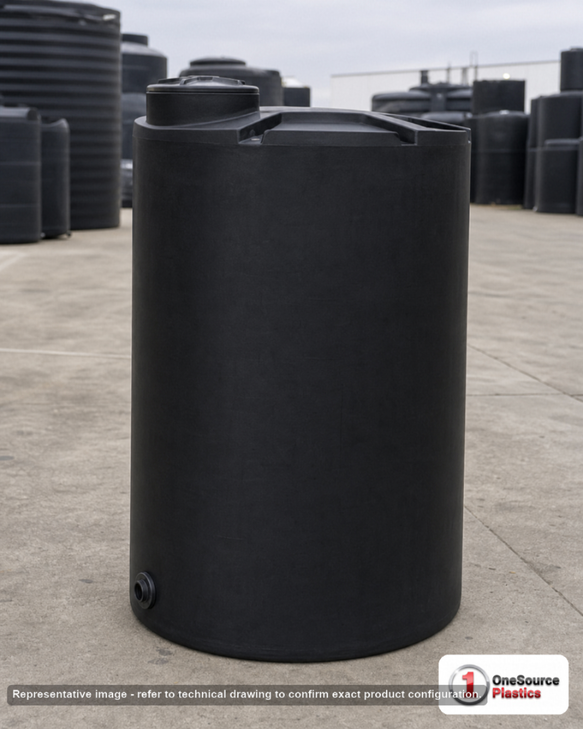

The trade on this sheet is floor against height, and this tank spends the floor. It puts 300 gallons into 51 inches of height on a 46 inch circle where the 1011200 shells put the same volume into 82 inches on a 35 inch circle, so it needs about a foot more diameter and gives back better than two and a half feet of headroom. Take it when the space above the tank is what you are short of. Take one of the 1011200 shells when the space beside the tank is what you are short of: the C34 is the black wall there, the C26 the other high density grade, the N42 the cross-linked one, each rated as its own sheet says. Beside them, the 1013000C26 holds 290 gallons at 72 inches for a middling ceiling, and the 1008200C26 is the only shell here lower than this one, laying 330 gallons across a 47 inch base at 50 inches. Against that neighbor the argument for this tank is the black wall, which keeps daylight out of the liquid where a natural shell passes it through.

Not sure which one? Tell us the liquid, the site and the ceiling height at 866-418-1777, or request a written quote with freight to your ZIP.

Pumping out of a shell 51 inches tall

• The pump: with barely four feet of tank there is almost no suction head, and that is the single most useful fact about plumbing this shell. A self priming pump, or any pump mounted below the base of the tank so gravity keeps it flooded, is the arrangement that works; a pump set level with or above the outlet will cavitate, run hot and get blamed on the tank. Gravity to a lower vessel is better still where the layout allows it.
• Low level protection: fit a float, a probe or a simple run-dry stop so the pump quits with liquid still over the fitting. On a short tank the difference between flooded and dry is a couple of inches of level, so the cheap switch pays for itself the first time somebody walks away from a transfer.
• Outlet: the sheet lists the outlet as 1 Manway / Lid and publishes no bottom fitting diameter, material, thread or gasket. Tell us the liquid and the pipe you are tying into at order and the draw-off is specified then; no size appears on this page that the sheet does not carry.
• Access and limits: fill through a dip tube to the floor so a delivery does not free-fall and aerate the load, run the vent outdoors on anything that fumes and size it to the delivery pump rather than to the fitting, and hold the liquid inside the service limit of 120 F / 48 C.

Whatever fitting lands, the pipe off it is flexible for the first joint, because at 75 pounds the pipe is stronger than the tank and a rigid run will lift it, twist it or crack the fitting on the first cold morning. The first valve rides on its own support off the pad or the frame, never on the wall. Keep one spare gasket for the fitting on the shelf rather than in a purchase order. Keep the lid closed between fills so rain and grit stay out, name the one liquid on the wall in letters readable from the door, and put a light into the headspace every time it is open, because a black wall gives you no other way to see the inside of it.

Rinse water, dust control and the drums this tank replaced

The loads that suit a squat black 300 are the working ones: rinse or wash water held between uses, a dust suppression or soil stabilizer supply on a job site, a light chemical that sunlight degrades and that never runs warm, a bulk detergent or cleaner feeding a bay, a mix tank where concentrate is bought by the drum and used by the gallon. Water sits well inside a wall rated 1.9, though a fire reserve is a system with its own sizing and freeze discipline rather than a vessel you buy, and the fire-water reservoir design guide is the honest starting point on that job. Where a tank this size collects one stream and feeds the next stage of a water reuse train, the industrial water reuse tank topology article places it in the sequence and says what has to be true upstream of it.

Marked Tree to the dock, 75 pounds at class 300

The 8040000N51 is molded at Marked Tree, Arkansas and moves as freight at class 300 as the sheet lists it, shipping at 46 inches by 46 inches by 51 inches. That is one pallet position and the lightest tank in this batch at 75 pounds, so the receiving question is not rigging, it is whether the truck can make a dock or whether the tank comes off on the ground; say which when you order, because a liftgate booked in advance is cheaper than a forklift you do not have. The freight cost estimator prices the lane to your ZIP, and the listed price is before freight. Straps go around the body and never a hook through the lid. Water test before product even at this size: fill it, hold it a shift on the surface it will live on, read the base and the fitting that was specified at order, then drain and dry. Set the stand, the pad or the truck frame before the tank arrives, because a squat 300 that spends a week on its pallet is a squat 300 that gets filled on its pallet. Chalk the full-water line on the outside after the first fill; it is the level every later reading gets checked against.
