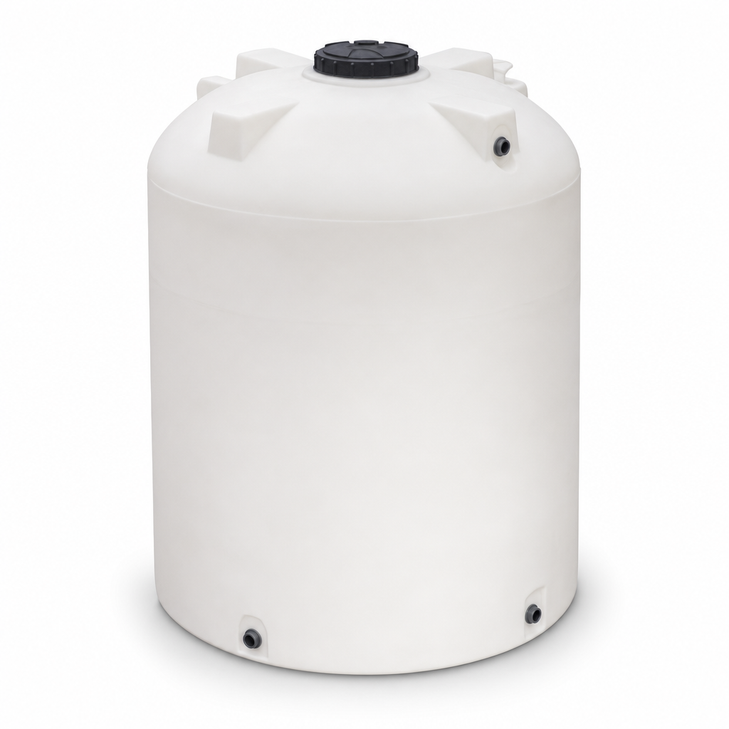

The Enduraplas TLV10000 is a 10,000-gallon vertical water storage tank built for bulk non-potable applications like fire reserve, irrigation, rainwater capture, and process water holding. It stands 180 inches tall on a round 142-inch-diameter footprint, and at full fill the water alone weighs about 83,400 pounds - not counting the poly shell - a load that dictates a properly engineered pad long before the freight truck arrives. This is a large-diameter vertical made for sites that need serious volume in a single vessel.
Will it work for your site?
Fill capacity is 10,000 gallons over a round 142-inch-diameter footprint, keeping the ground area compact relative to the volume stored. The water load alone is about 83,400 pounds, so plan the foundation for the loaded condition, not the empty tank. The fittings shown on the technical drawing on this page cover the connections most bulk-water installs need: the 3 inch bolted fitting sits low as the correct outlet for gravity feed or pump suction at this volume, the 2 inch threaded fitting works as a secondary fill or return port, and the 16 inch lid is the only top access - it is also your vent path, so add screened venting there to let the tank breathe as it fills and draws down. If you are still confirming the volume against your demand and refill cycle, run the numbers through our Tank Sizing Calculator and the Tank Sizing Guide before you commit to a footprint this size.
Foundation and placement
At 180 inches tall with more than 83,000 pounds of water bearing down, a tank this size lives or dies on its base. A level, engineered pad rated for the loaded weight is not optional - and for elevated or gravity-feed setups, the stand has to carry that same load. Our guide on tank stand design for 5,000+ gallon vertical tanks walks through FRP saddle, steel cradle, and concrete pad tradeoffs for exactly this weight class. If the tank is part of a rural or remote fire-protection reserve, the NFPA 22 fire-water reservoir design guide covers sizing discipline and freeze protection for cold-climate service. For grey-water, rainwater, or condensate aggregation, see our industrial water reuse tank topology guide.
The mistake to avoid
This listing is water-service. Do not assume a bulk water tank is cleared for chemical duty - confirm the rated specific gravity with us before running any fluid denser than water, because a heavier solution like fertilizer or acid demands a tank engineered for that load, and running it through a water-rated vertical is how tanks fail early. When you do check compatibility, the real contact point is the 3 inch bolted fitting's gasket - on a bolted flange the gasket, not the tank wall, is usually what fails first off-spec, so match the gasket material to your fluid before you plumb it. Keep this one on water or other water-density fluids.
The TLV10000 ships LTL freight as an oversized load, quoted live to your ZIP - get your number from the Freight Cost Estimator or call 866-418-1777 and we will work out delivery and offload for a tank this size. Searching a 10000 gallon vertical water tank or large poly bulk storage tank? This is the vessel - reach out and we will confirm fittings, lead time, and freight to your site.
