5,100 gallons under an eight foot ceiling, rated to 1.5

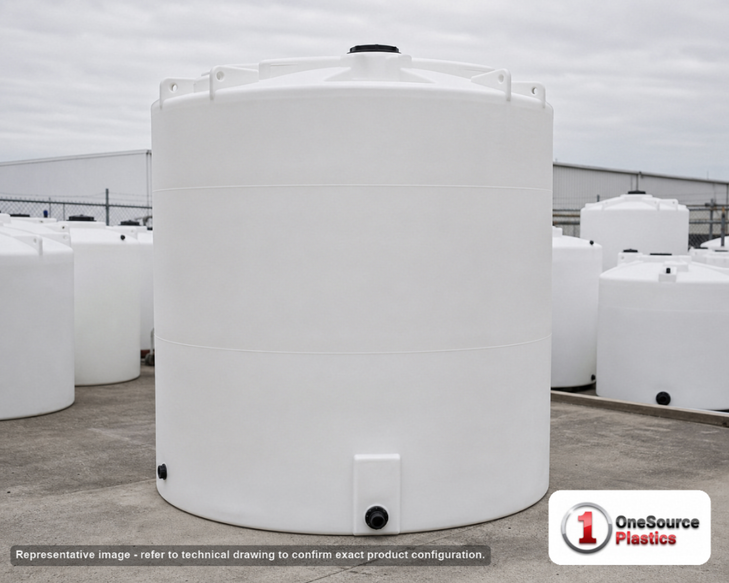

The Snyder 32376 holds 5,100 gallons of liquid in a white polyethylene shell 142 inches across and only 93 inches tall, weighing 1,043 pounds. It is the low profile 5,100: the same volume the tall 102 inch tanks hold at 159 inches, spread across a twelve foot floor and stopped at seven feet nine, with a wall rated for a specific gravity of 1.5, or 63,801 pounds of contents against 42,534 for water. The outlet is a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer siphon tube to the floor, for a tank that stands flat in a basin; a 20 inch threaded, vented manway on top.
Two ways to buy. Add it to your cart above with freight quoted to your ZIP, or request a written quote for a job that needs paperwork.
Twelve feet of floor, no ladder
Low means wide: a 142 inch circle in full contact with an engineered slab, carrying 63,801 pounds at the rating. In return the tank is the easiest 5,000 gallon vessel to live with: the manway is reachable from a short step, the empty shell is stable in a gust, and a tanker's dip tube reaches the floor without a long drop. The siphon outlet lets it stand in a containment basin with no clearance under the fitting. Look up the density of the liquid at the concentration you buy; under 1.5, this is the right wall. The tank sizing calculator and the tank sizing guide settle the volume, and the day tanks that usually stand beside a bulk tank are covered in the 2,000 gallon, 500 gallon and 300 gallon vertical tank buyers guides.
Low against tall at 5,100 gallons
| Part | Gallons | Diameter x height | Empty weight |
|---|---|---|---|
| 32376 (this tank, low profile, 1.5 SG) | 5,100 | 142 x 93 in | 1,043 lb |
| 32388 (low profile) | 5,100 | 142 x 93 in | 1,224 lb |
| 32372 (tall) | 5,100 | 102 x 159 in | 1,301 lb |
| 32378 (tall) | 5,100 | 102 x 159 in | 1,301 lb |
| 1002100C34 (tall) | 5,000 | 102 x 154 in | 950 lb |
The 32388 is the same low shape with 181 more pounds of wall. The 32372 and 32378 are the same 5,100 gallons stood up, 66 inches taller on a base 40 inches narrower, 258 pounds heavier, for the site with height and no floor. The 1002100C34 is the lighter 5,000 gallon tall tank at 154 inches. Read height against the roof and diameter against the floor.
Not sure which one? Tell us the liquid, the site and the ceiling height at 866-418-1777, or request a written quote with freight to your ZIP.
Ports
- Outlet: 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer siphon tube to the floor; a flanged transition, an expansion joint, and a valve supported off the slab. A siphon outlet needs a pump or a prime; it does not gravity-drain below the fitting.
- Access: 20 inch threaded, vented manway, reachable from a short step; size the vent for the fill and draw rates.
- Service limit: 120 F / 48 C.
Ninety-three inches of head is a modest gravity feed; a pump does the work on a low tank, and the siphon outlet needs one anyway. A white tank shows its level in daylight, and an ultrasonic sender on the manway has an easy job at this height. Fill through a dip tube, keep the vent clear, and prove the siphon on the water test.
Where you will find one
Liquid fertilizer and brine under a barn roof, dilute treatment chemicals in a low chemical room with a basin, and bulk water where a heavier wall is wanted; with water in it, a fire reserve that a fire department connection can reach from the ground, sized under NFPA 22 per the fire-water reservoir design guide. In a freezing climate a solution expands against a wall not designed for ice; house the tank or keep it above freezing.
Freight for a twelve foot diameter
At 142 inches across the 32376 is oversize freight (NMFC 156600) on a flatbed at a lane rate; the freight cost estimator prices it for your ZIP, and the listed price is before freight. A forklift with long forks or a crane sets 1,043 pounds of wide, awkward shell on the slab. Water-test in stages with a hold, drain through the siphon to prove it, and check the fitting before the product goes in. Walk the base after the first hard rain; a pad that shifts shows it at the edge first.
Freight and documents
Ships from: Albertville, AL. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 32376.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
