A 1550 gallon natural white vertical tank built in Griffin, Georgia

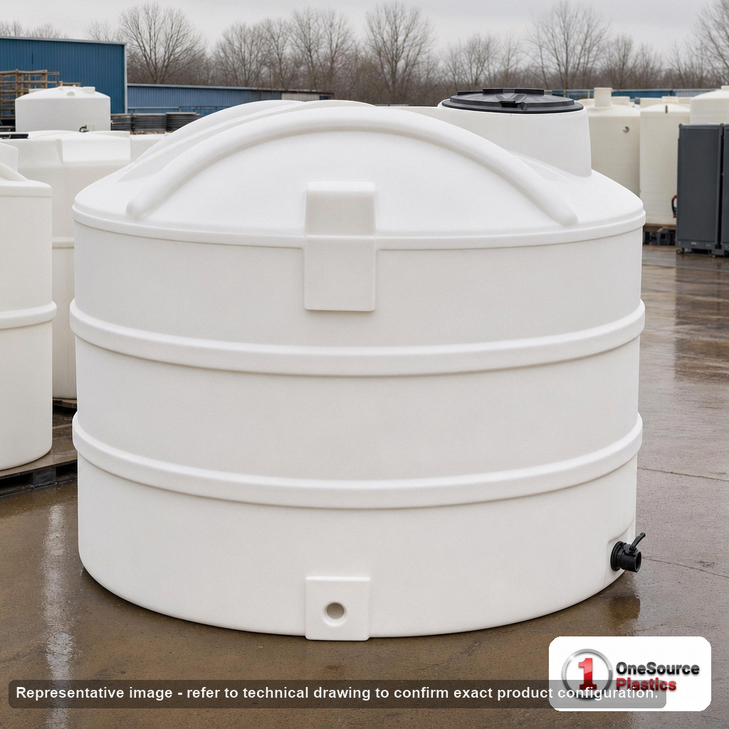

The Norwesco 1550 gallon vertical liquid storage tank, part number 42595, is a natural white polyethylene tank 87 inches in diameter and 67 inches tall, weighing 219 lb empty. It is Norwesco's Griffin, Georgia build of the wide, low 1550: a seven foot circle on the ground and a top you can reach from the ground or a single step. The tank is rated for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 1550 gallons of water weighs 12927 lb, and at the full 1.5 rating the contents can weigh up to 19390 lb. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs the tank with a 3 year warranty. Tell us the outlet and manway you need when you order; we confirm the fitting configuration on this build before it ships.
Is this the right size? Check freight to your ZIP and add it to your cart above, or call 866-418-1777 with what you are storing and where the tank is going.
Where a wide, low 1550 fits
Buy this shape when height is the limit and floor is not: under a lean-to or a low shed roof, beside a single storey building where a tall tank would stand above the eave, inside a barn bay with a low door, or on an exposed site where a tall column would catch the wind. Filling, reading the level, dropping a float in and cleaning can all be done from the ground or a single step. The trade is the pad. The 87 inch base needs a flat, level, continuous surface a little more than seven feet across; because it carries 19390 lb at full rating, a concrete pad is the right foundation, and it must be flat across its whole width or the shell will sit on a ridge. Natural white lets you read the level through the wall in daylight. If your site is in the Southeast, this Griffin build is usually the shortest freight lane for a Norwesco 1550, which is worth checking before you pick between this tank and the same shell from another plant. The complete buyers guide to this tank and the guide to the 40235 build of the same shell cover siting, the pad and plumbing in detail.
What goes in it
Water, rainwater, liquid fertilizer and the common farm and treatment chemicals that polyethylene handles are the normal loads. Keep the contents below 120 F and below 1.5 times the weight of water; heavier liquids belong in Norwesco's heavy duty tanks. If 1550 gallons is a guess rather than a calculation, run the numbers through the tank sizing calculator or the tank sizing guide first. Daily draw and the time between refills decide the size, not the price step to the next tank.
What to check before you buy
- The outlet and manway. This page does not list the fitting configuration for the Griffin build. Call us with the connection you are making and we confirm the outlet size and the manway on the tank that ships to you. Whatever the outlet, support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware, and turn the tank so the outlet faces the pipe run before the first fill.
- The pad. Seven feet across, flat, level and continuous. A tank this wide shows up a crowned or sloped slab as a shell that rocks or sits on one side.
- The drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the shell profile and the fitting positions for pipe planning.
Other sizes in this family
For a much smaller or much larger tank in the same line, read the guides to the short natural white 500 gallon tank and the natural white 2000 gallon tank, which also explain when a tall, narrow shell beats a wide, low one.
Shipping and receiving
The tank ships by LTL freight, 87 by 87 by 67 inches with a ship weight of 220 lb, from Norwesco's Griffin, Georgia plant. At seven feet across it takes the full width of the trailer and a wide spot at your gate, so tell us if the delivery truck has a tight approach. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or send a quote request for a job that needs paperwork. At the tailgate, check the part number against 42595 on the bill of lading, walk around the tank for transit damage before signing, and fill it with water the first time so any problem shows up with something harmless inside.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Griffin, GA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 42595.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 1550 Gallon Vertical Liquid Storage Tank video (71 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
3 Year Warranty
