A 1295 gallon white vertical tank, seven feet across with a siphon tube outlet
The Norwesco 1295 gallon vertical liquid storage tank, part number 44968, is a white polyethylene tank 84 inches in diameter and 64 inches tall, weighing 250 lb empty. It is the wide, low way to put close to thirteen hundred gallons on a pad: a seven foot circle on the ground and a top you can reach from the ground. It comes with a 2 inch polypropylene female NPT bulkhead fitting with a siphon tube as the outlet and a 16 inch threaded vented manway on top. The tank is rated for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 1295 gallons of water weighs 10800 lb, and at the full 1.5 rating the contents can weigh up to 16200 lb. The resin is FDA compliant per Norwesco, the service limit is 120 F, and Norwesco backs the tank with a 3 year limited full replacement warranty under its 2024 liquid storage catalog. This tank is built at Norwesco's Lancaster, Ohio plant.
Two ways to buy. Add it to your cart above with freight quoted to your ZIP, or request a written quote for a job that needs paperwork.
Where a wide, low 1295 fits
Buy this shape when height is the limit and floor is not: under a lean-to or a low shed roof, beside a single storey building where a tall tank would stand above the eave, inside a barn bay with a low door, or anywhere you want to fill, inspect and clean without a ladder. A wide, low tank is also the steadiest choice on a windy site. The trade is the pad. The 84 inch base needs a flat, level, continuous surface seven feet across; because it carries 16200 lb at full rating, a concrete pad is the right foundation, and it must be flat across its whole width or the shell will sit on a ridge. Our concrete pad sizing guide covers how to size the slab. White lets you read the level through the wall in daylight. The complete buyers guide to this tank goes deeper on siting and plumbing.
What goes in it
Water, rainwater, liquid fertilizer and the common farm and treatment chemicals that polyethylene handles are the normal loads. Keep the contents below 120 F and below 1.5 times the weight of water; heavier liquids belong in Norwesco's heavy duty tanks. For a rural fire reserve, the fire-water reservoir design guide explains where a polyethylene tank sits in a private fire protection stack. For grey water and rainwater collection, the industrial water reuse topology guide covers arranging several tanks by water quality. Size the volume with the tank sizing calculator or the tank sizing guide.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting with a siphon tube. The siphon tube is an internal pipe that lets a side-mounted outlet draw from near the bottom of the tank, so you empty more of the volume than the outlet height alone would allow. Your valve, camlock or hose adapter threads into the fitting as usual. Turn the tank so the outlet faces the pipe run before the first fill, and support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top. On a 64 inch tank it is at head height, so filling from a hose, dropping a float in and getting a brush inside need no ladder. The vent lets air out as you fill and in as you draw down; never plug it.

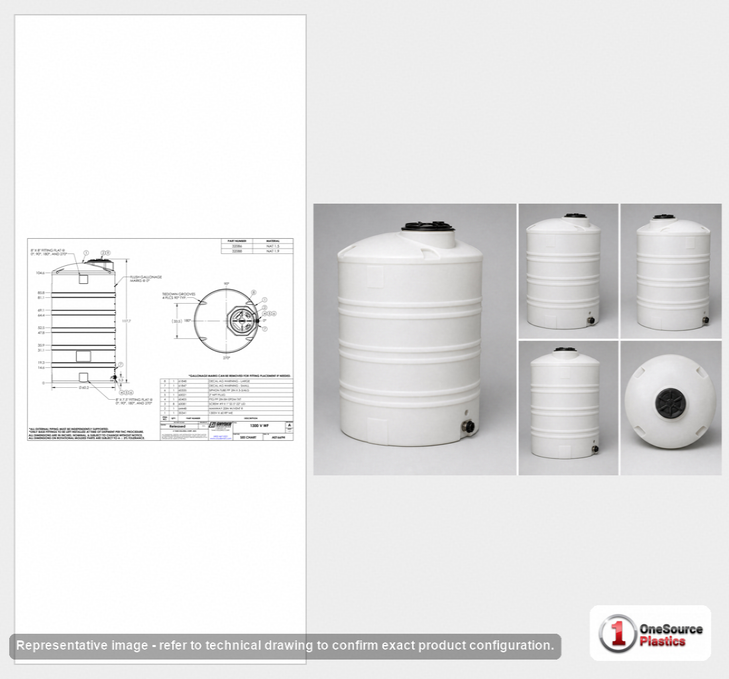

- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height, the siphon arrangement and the manway position.
Sizes nearby
The same gallons and the same shell with a heavier wall, for denser liquids, is the 1295 gallon heavy duty vertical tank, N-44970. If you have height to spare and want a smaller pad, the 1250 gallon black vertical tank, 44356B is a tall, narrow column. One size up is the 1500 gallon black vertical tank, 40753, also tall.
Shipping and receiving
The tank ships by LTL freight, 84 by 84 by 64 inches and 250 lb, from Norwesco's Lancaster, Ohio plant. At seven feet across it takes the full width of the trailer and a wide spot at your gate, so tell us if the delivery truck has a tight approach. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or ask for a quote. At the tailgate, check the part number against 44968 on the bill of lading, walk around the tank for transit damage before signing, and fill it with water the first time so any problem shows up with something harmless inside.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Lancaster, OH. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 44968.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 1295 Gallon Vertical Liquid Storage Tank video (68 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
3 Year Warranty
