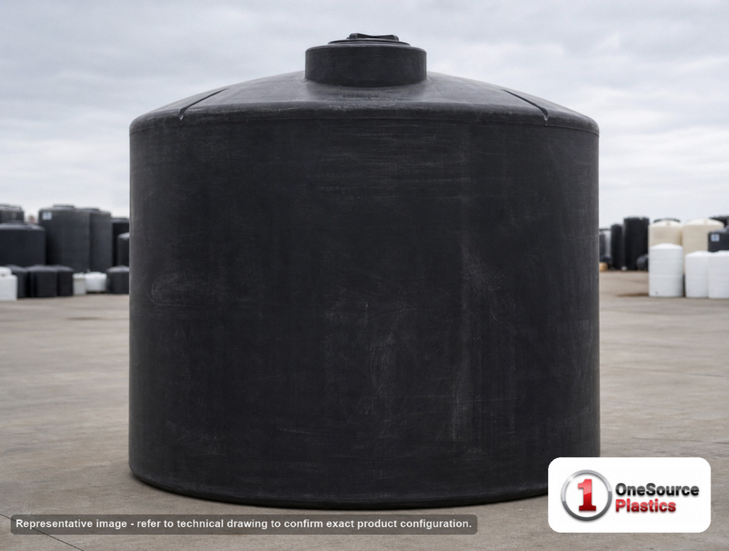

15500 Gallon Plastic Water Storage Tank

What a 15500 gallon tank is for

This is bulk storage: fire water for a remote facility or a rural district, process or wash water for a plant, irrigation or stock water for a large operation, or the storage tank in a commercial rainwater or reuse system. The fire water reservoir design guide covers the volumes fire authorities look for, the draft connection and freeze protection for a tank that has to be full and liquid in January; the water reuse storage guide covers where bulk storage sits in a reuse train. The height is the thing to plan around. At 244 inches the top is a fixed ladder and a platform job, the tank catches real wind when empty, and the slab has to be dead level because a lean at the base is a large lean at the top. The 141 inch circle must sit on a flat, level, continuous engineered slab carrying 129,270 lb of water plus the tank; the concrete pad sizing guide gives the framework, and at this load an engineer should sign the pad. Two of these side by side, with a crossover, is the usual way to get redundancy: one can be drained and cleaned while the other stays in service. The tank sizing calculator and the tank sizing guide help with the volume question; the site and permit questions are yours and your engineer's.

Openings and fittings

1. Outlet. A 3 inch polypropylene female NPT bulkhead fitting low in the wall, a step up from the 2 inch outlet on Norwesco's smaller tanks, for the flow a tank this size is expected to deliver. For a fire draft connection, tell us the connection the department wants and we will confirm what is needed before the tank ships. Support the valve and the pipe on their own.
2. Inlet and top opening. No separate inlet fitting or top manway is listed on this page. Tell us how you plan to fill, vent and inspect the tank and we will confirm the top openings and the fill arrangement in writing before you order.
3. Rating. 1.1 specific gravity, a maximum of 9.18 lb per gallon. Water. Liquid fertilizers are heavier and need a tank rated 1.5 or higher. Keep contents under 120 F.

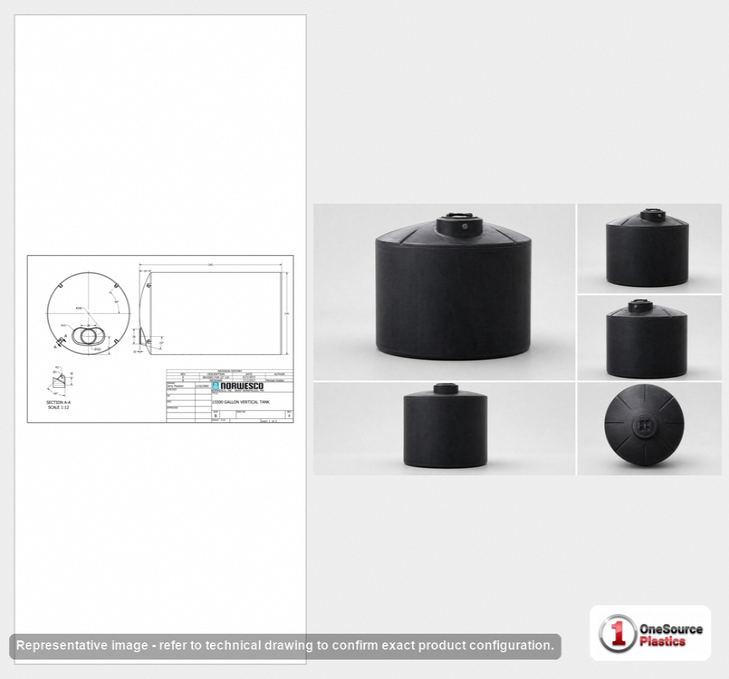

4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height and the top layout; read it before the slab is poured so the outlet faces the pipe run.

Sizes nearby

Same tank in green for California: the 15500 gallon green California water storage tank. One step down on the same 141 inch footprint: the 12000 gallon vertical water tank. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank travels on its side, 244 by 141 by 141 inches, as an oversize load on a flatbed, freight class OVS, 3307 lb, from Norwesco's Hanford, California plant. It is a permitted wide and long load on most lanes, so allow lead time, and the carrier needs a site a long flatbed can reach and turn in. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and for a job of this size a written quote is the normal route. Standing the tank up needs a crane or a large telehandler and a rigging plan with slings that will not point-load the shell; arrange that before the truck is booked. At the tailgate, check the part number against 44814 on the bill of lading, walk the full length of the shell for transit damage, stand it on the slab, and run the water fill acceptance test, watching the pad for settlement as it fills, before it carries anything else.

Questions before you order? Call 866-418-1777.
