A 3450 gallon black vertical water tank on a 96 inch footprint
The Norwesco 3450 gallon vertical water storage tank, part number 44664, is a black polyethylene tank 96 inches in diameter and 119 inches tall, weighing 444 lb empty. It is the tall tank on the same 96 inch base as Norwesco's lower tank of this diameter, so it is the way to add volume to a site without adding footprint. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet, a 1-1/2 inch polypropylene female NPT bulkhead fitting as the inlet and a 16 inch threaded vented manway on top. It is rated for liquids up to 1.1 specific gravity, so it is a water tank; 3450 gallons of water weighs 28,773 lb. The resin is FDA compliant and UV stabilized, the service limit is 120 F, and Norwesco backs it with a 3 year warranty. Black blocks light through the wall and stops algae growing in stored water.
Is 3450 the size? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 and tell us what the water is for.
What a tall 3450 is good for
This is the household or small farm reserve that holds a week of normal use, and a common size when a fire authority wants a private water supply on a rural lot. The fire water reservoir design guide covers how much a department wants on hand, the draft connection they want to see, and how to protect the tank in a cold winter. The height does two things for you: it keeps the footprint small, and it gives the outlet a useful head of pressure when the tank gravity feeds a trough or a garden. It also means the manway is well above head height, so plan a fixed ladder or a platform if anyone will look inside, and put the float valve on the inlet line where it can be serviced from the ground. The 96 inch footprint must sit on a flat, level, continuous base carrying 28,773 lb of water plus the tank; a slab is the permanent answer and the concrete pad sizing guide explains how to size it. A tall tank catches more wind than a low one; where the tank will stand empty in a windy yard, strap it until it is filled. For rainwater or grey water, the water reuse storage guide is the starting point. Run the numbers in the tank sizing calculator and the tank sizing guide before you commit.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting low in the wall. Thread a 2 inch valve in and follow it with a union. Support the valve and the first run of pipe on their own; the fitting should carry water, not hardware.
- Inlet. A 1-1/2 inch polypropylene female NPT bulkhead fitting for the fill line.
- Manway. A 16 inch threaded vented manway on top for filling, level sensing and cleaning. It is the tank's vent; never seal it.
- Rating. 1.1 specific gravity, a maximum of 9.18 lb per gallon: water and rainwater. Liquid fertilizers are heavier and need a tank rated 1.5 or higher. Keep contents under 120 F.

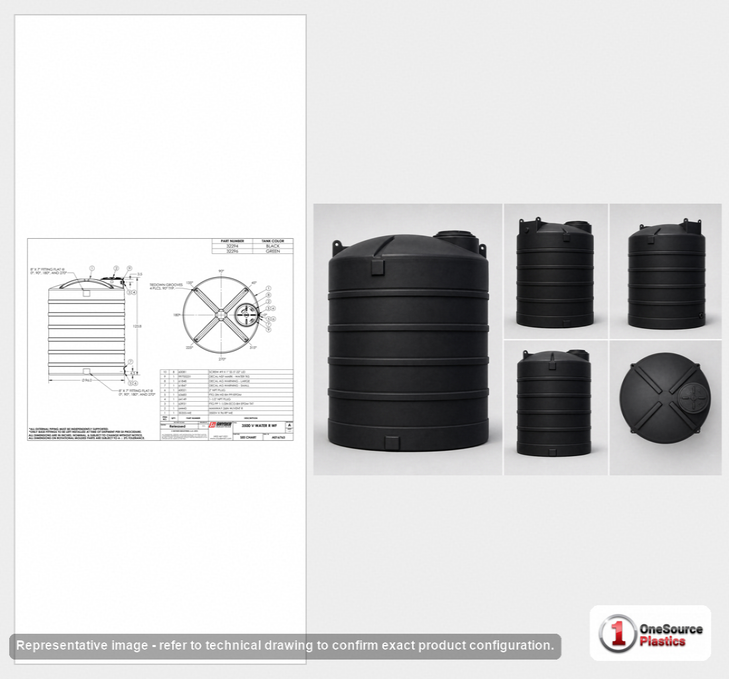

- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the fitting heights and the manway position.
Sizes and colours nearby
Same tank in dark green: the 3450 gallon dark green vertical water tank. One step down: the 3000 gallon dark green vertical water tank. One step up: the 4995 gallon dark green vertical water tank. The colour swatches above the price switch between the versions of this tank.
Shipping and receiving
At 96 inches across and 119 inches tall, the tank ships on its side as an oversize load on a flatbed, freight class OVS, 445 lb, from Norwesco's Fairfield, Texas plant. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Have a loader or four people ready at delivery and a clear path to the pad. At the tailgate, check the part number against 44664 on the bill of lading, walk round the shell for transit damage, stand it on the pad, and run the water fill acceptance test before it carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Fairfield, TX. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 44664.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
Product video. Watch the 3450 Gallon Plastic Water Storage Tank video (61 seconds) with dimensions, fittings and shipping notes.
Ready to order?
Add it to your cart at the top of this page, get LTL freight to your ZIP, request a written quote, or call 866-418-1777. The listed price is before freight.
3 Year Warranty
