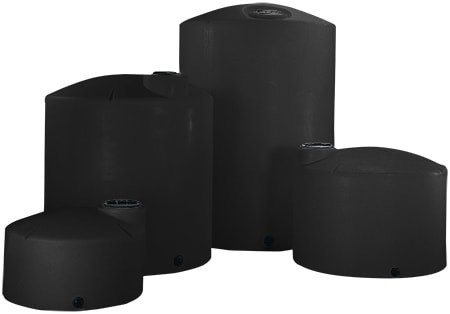

Norwesco 11000 Gallon Black Heavy Duty Vertical Storage Tank

Where it goes and what it holds

Eleven thousand gallons is a bulk tank for a working plant: liquid fertilizer at a co-op or an applicator yard, process or wash water at a food or beverage plant, a chemical bulk tank behind a treatment works, a fire reserve for a remote facility, or a reuse reservoir collecting condensate and grey water. The heavy duty wall is what makes a column this tall safe with liquids denser than water, and the 3 inch outlet is what makes it practical to move that much liquid in a working day. For plain water the standard wall tank in the same mould costs less. Check the liquid in our chemical compatibility guide before the first fill and keep it under 120 F. The pad is an engineered slab: a full tank is more than forty five tons on a circle twelve feet across, and it has to be flat, continuous and level under the entire base. Our guide to concrete pad sizing for above ground polyethylene tanks sets out the framework; at this size your engineer signs the slab. The manway sits at the top of 167 inches, so a fixed ladder with a platform is part of the installation. Our fire water reservoir design guide and industrial water reuse storage guide cover those two jobs at this scale; the tank sizing calculator and tank sizing guide settle the volume.

Openings and fittings

1. Outlet. A 3 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall, with a 2 inch reducer so the same fitting takes either a 3 inch or a 2 inch line. Use the full 3 inch bore for truck loading or a fire pump; the 2 inch reducer suits a metered feed. Support the valve and the first length of pipe on their own within a foot of the wall, and put a flexible connector before the first rigid joint; a fourteen foot column of liquid moves the wall as it fills and empties, and rigid pipe will fight it.
2. Manway. A 22 inch threaded vented manway on top, large enough for a float valve, a submersible pump or a mixer shaft, and for entry under a confined space permit. Leave the vent clear so air can move as the level changes, and keep the lid on.
3. Extra ports and the drawing. Only the one outlet comes installed; a fill port, an overflow or a return means extra bulkhead fittings we quote with the tank. Norwesco's drawing, linked under Technical Drawing on this page, shows the outlet height, the manway and the base profile.

Sizes nearby

The same heavy duty wall in light blue is the 11000 gallon blue heavy duty vertical tank. The standard 1.5 wall in this mould comes as the 11000 gallon black vertical tank or in white as the 11000 gallon white vertical tank. One step down is the 10500 gallon black vertical tank; one step up is the 12000 gallon black vertical tank. The colour and wall swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships from Norwesco's Albertville, Alabama plant at freight class 300 as a 144 by 144 by 167 inch load weighing 2900 lb. A tank this size travels on a flatbed as an oversize load and is set with a crane or a large telehandler with straps, never dragged; have the equipment and the pad ready for the delivery date. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Before the driver leaves, check the part number against 44011B on the bill of lading and walk the full circumference of the base and the outlet fitting looking for transit damage. Fill with water the first time, slowly, and watch the pad and the outlet before the tank carries anything else.

Questions before you order? Call 866-418-1777.
