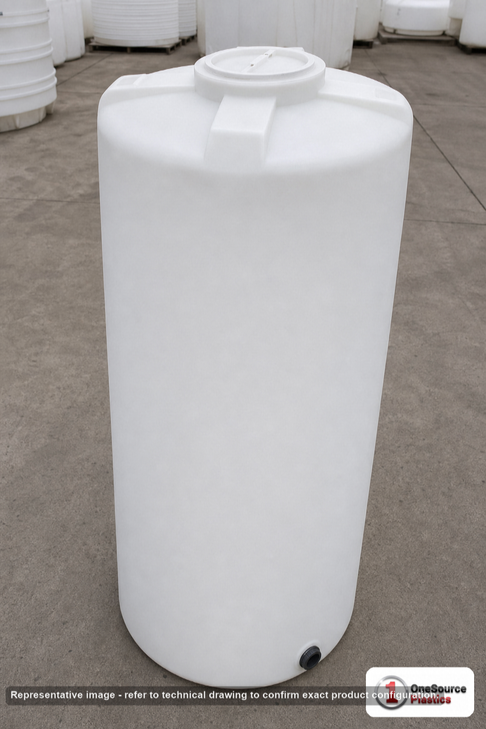

140 Gallon Vertical Liquid Storage Tank

Why the tall one

Buy this tank when floor is scarce and headroom is not: between two machine bases, in a closet or a narrow plant room, beside a boiler, in the corner of a shop where the walkway cannot give up another inch. Twenty-five inches goes through a standard doorway upright, which the wider 140 gallon shapes do not. The height is the number to check: 73 inches plus room above it to get the lid off and a hose in, measured to the lowest duct, light or header over the spot rather than to the ceiling. The lid is above head height for most people, so plan a fill line or a pump, not buckets, and plan a float or a sight line for the level. A tall slim tank wants a level floor more than a squat one; a slab that falls toward a drain leans a 73 inch column enough to see. Full of water it puts about 1170 lb on a 25 inch circle, and a rotationally moulded base bears on everything it touches and nothing else, so it needs a flat, continuous surface under the whole base. Our guide to concrete pad sizing for above ground polyethylene tanks covers an outdoor pad.

What goes in it

Water, liquid fertilizer, wash water and the treatment chemicals that polyethylene handles are the normal loads. Liquids heavier than 1.5 times water need a tank with a higher rating; tell us the liquid and we will point you to one. Keep the contents under 120 F. If the tank is a stage in a water reuse train, our guide to industrial water reuse tank layout for grey water, rainwater and condensate covers how the stages fit together, and for a rural fire water supply the guide to fire water reservoir design for rural and remote sites explains where a polyethylene tank belongs. Our buyer's guide to the 140 gallon vertical tank is written around this capacity, and the tank sizing calculator and tank sizing guide settle the number.

Openings and fittings

1. Outlet. A 1-1/4 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. Thread a 1-1/4 inch valve straight in. Dry-fit it so the handle clears the wall, seal the threads, and support the first length of pipe on its own so the fitting carries liquid, not hardware.
2. Lid. An 8 inch threaded vented lid. Wide enough for a hose, a float switch or a small pump inlet; the vent lets air in as the tank drains so the walls are never pulled inward.
3. Reach. With the lid at 73 inches, fit the float and the fill line before the tank is in its corner, while you can still walk round it.

Sizes nearby

One size up in black, for stored water where algae is the worry: the 150 gallon black vertical storage tank.

Shipping and receiving

The tank ships LTL at freight class 250 from Norwesco's Lancaster, Ohio plant, 25 by 25 by 73 inches on a pallet at a ship weight of 65 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number 45870 on the bill of lading, look at the base and the bulkhead fitting before the driver leaves, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777 or request a written quote.
