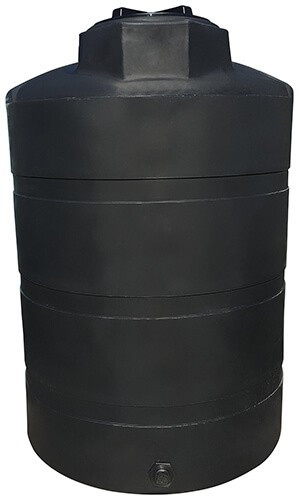

Norwesco 1700 Gallon Black Vertical Storage Tank

Where it goes

This is a household or small farm size: a reserve for a well that runs slow in summer, a hauled water supply, a rainwater cistern on a barn roof, stock water for a pasture, or a fertilizer tank by the loading pad. At 74 inches it goes under most barn eaves and lean-tos, and the low centre of gravity suits an open, windy site. The trade is the footprint: 87 inches is over seven feet of flat, level, continuous floor, and a full tank puts over seven tons on it, so a poured pad or an existing slab is the normal base. Compacted gravel needs a sand cap, because stones print into the floor of a full tank. Our guide to sizing a pad under a polyethylene tank covers thickness and margin. If it collects roof water, read the first flush diverter sizing guide before plumbing the inlet. For a rural fire reserve see our article on rural and remote reservoirs; for grey water or condensate storage, the reuse topology piece. Check the volume against your draw with the tank sizing calculator and the tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the sidewall. A 2 inch ball valve, camlock or hose adapter threads straight in. Dry-fit it facing the pipe run, tighten, and support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top for the fill line, a float switch and a cleaning brush. Keep the vent clear so the tank breathes as the level moves.
3. Liquid and temperature. At or below 1.5 specific gravity and at or below 120 F. Heavier liquids belong in the heavy duty version below. Check anything other than water against polyethylene before the first fill.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height and the manway position.

Sizes and versions nearby

Same tank in white, where you want to read the level through the wall: the 1700 gallon white vertical tank, 40010. For liquids heavier than water, the 1.9 specific gravity heavy duty builds are the 1700 gallon blue heavy duty tank, 40012 and the 1700 gallon black heavy duty tank, 42999. A step down in the same wide mould family is the 1550 gallon black vertical tank, 40235B; a step up is the 2000 gallon black vertical tank, 44125B. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL at freight class 400, upright, 87 by 87 by 74 inches and 244 lb, from Norwesco's Sheldon, Iowa or Washington Court House, Ohio plant, whichever is nearer. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Without a forklift at the stop, plan on three people to roll it off and walk it to the pad. At the tailgate, check the part number 40725 against the bill of lading, look over the sidewall and the bottom edge for transit damage, and fill it with water the first time before it carries anything else.

Questions before you order? Call 866-418-1777.
