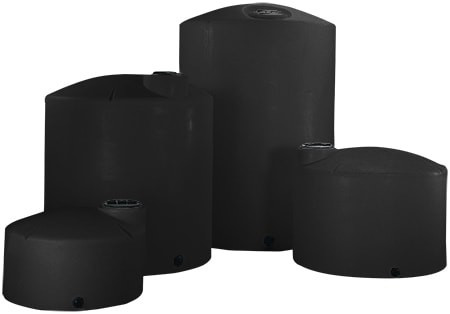

Norwesco 2000 Gallon Black Vertical Storage Tank

Where it goes and what it holds

Two thousand gallons in a tank seven feet tall is the household and small farm answer to a low roof: hauled water storage in a shed, a rainwater cistern under a barn eave, stock water beside a well house, or irrigation buffer at a market garden. At 84 inches the manway opens from a step and the whole tank clears most shed headers; at 90 inches across it needs a flat, continuous, level pad under the entire base, because a full tank is more than eight tons of water and polyethylene follows whatever it is set on. Our guide to concrete pad sizing for above ground polyethylene tanks sets out the slab. If you are weighing this tank against the other makers' 2000 gallon verticals we stock, our 2000 gallon vertical storage tank comparison puts them side by side. If the tank is a fire reserve, our guide to fire water reservoir design for rural and remote sites covers sizing and freeze protection. Anything other than water gets checked in our chemical compatibility guide first, and liquids heavier than 1.5 times water need the heavy duty tank in this mould, not this one. For the volume itself, use the tank sizing calculator and tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. Your valve, camlock or pump suction threads straight in; a 2 inch line is plenty for a house, a stock water line or a drip system. Support the valve and the first length of pipe within a foot of the wall so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top: fill from a hose, drop a float or a level sensor in, and get a hand and a brush inside to clean. Leave the vent clear so air can move as the level changes.
3. Extra ports. Only the one outlet comes installed. An overflow, a second draw or a top fill port means extra bulkhead fittings; tell us when you order and we quote them with the tank.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height, the manway position and the base profile.

Sizes nearby

Same tank in white, for a visible level line: the 2000 gallon white vertical tank. For heavier liquids, the heavy duty 1.9 wall in this mould comes as the 2000 gallon black heavy duty vertical tank or the 2000 gallon light blue heavy duty vertical tank; Norwesco also makes a second heavy duty mould, the 2000 gallon black heavy duty vertical tank 47849. Nearby sizes: the 1700 gallon black vertical tank below it and the 2100 gallon black vertical tank above it. The colour and wall swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL at freight class 400 from Norwesco's Washougal, Washington plant as a 90 by 90 by 84 inch load weighing 300 lb. Two people can walk it off a liftgate and roll it on its base to the pad. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 44125B on the bill of lading, look over the base and the outlet fitting for transit damage, and fill with water the first time before the tank carries anything else.

Questions before you order? Call 866-418-1777.
