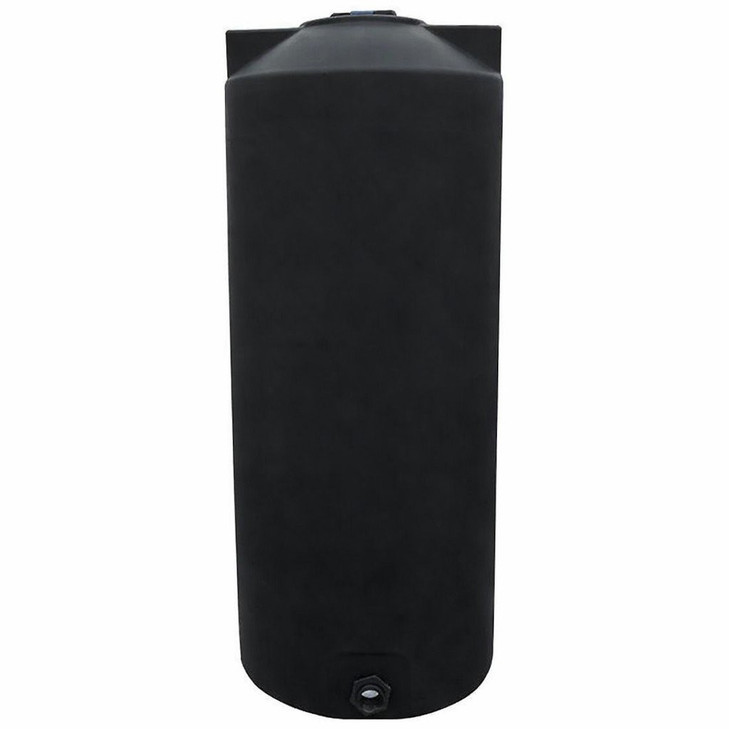

Norwesco 200 Gallon Black Vertical Storage Tank

Where a tall, narrow 200 gallon tank goes

This tank trades floor space for height: 30 inches across and six feet tall. That makes it the 200 gallon tank for a pump room, a container, a trailer mounted sprayer fill station or the corner of a barn where a wider tank would be in the way. Jobs we see it bought for are rainwater off a shed roof, spray mix and fertilizer holding, a water reserve for a garden or livestock pen, and feed water for a small treatment plant. Full of water it weighs 1668 lb on a floor patch 30 inches across, so it needs a flat, continuous, level surface; a slab or a paving base, not bare soil. Tall tanks are also easier to push over when empty than when full, so where wind or livestock can reach it, strap it to a wall or post. Our guide to bearing surfaces under polyethylene tanks covers the pad. For roof water, read the piece on sizing a first flush diverter before you plumb the downspout in.

What goes in it

Water, liquid fertilizer and the treatment and cleaning chemicals that polyethylene handles are the normal loads. Check anything else in our chemical compatibility guide first, and ask us about anything that is not listed. Liquids heavier than 1.5 times water need a heavy duty tank, and nothing hotter than 120 F belongs in it. If it will feed a grey water or reuse system, our note on quality banded storage trains in reuse systems explains where a tank like this sits in the chain. The tank sizing calculator and tank sizing guide confirm the volume before you order.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. A 2 inch valve, camlock or hose adapter threads straight into it, and it drains a 200 gallon tank at a useful rate. Support the valve and the first length of pipe so the fitting carries liquid, not hardware.
2. Lid. An 8 inch threaded vented lid on top. Fill from a hose, drop a float through it, and let the vent breathe as the level changes. On a 72 inch tank you will want a step to reach it.
3. Extra fittings. An overflow near the top or a second draw-off is a bulkhead fitting through the wall; tell us before the order and we quote it with the tank. Dry-fit, then hand tight plus a quarter turn.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, gives the outlet height and the lid position.

Sizes nearby

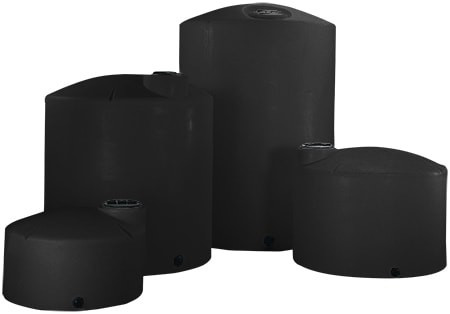

The same tank in white, where you want to see the level through the wall: the 200 gallon white vertical tank. Two other 200 gallon vertical shapes, for a different footprint: part number 41516 and part number 41518. One step down, built for heavier liquids: the 175 gallon heavy duty vertical tank. One step up: the 210 gallon black vertical tank. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL at freight class 300 from the nearest of Norwesco's plants, which include Fairfield, Texas; Griffin, Georgia; Hanford, California; St. Bonifacius, Minnesota; Owego, New York and Washougal, Washington. On the pallet it is 30 by 30 by 72 inches and 54 lb, so it may travel upright or on its side depending on the carrier. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 42922 on the bill of lading, look along the full height of the wall for transit scuffs or cracks, and fill it with water the first time so any problem shows up with something harmless in the tank.

Questions before you order? Call 866-418-1777.
