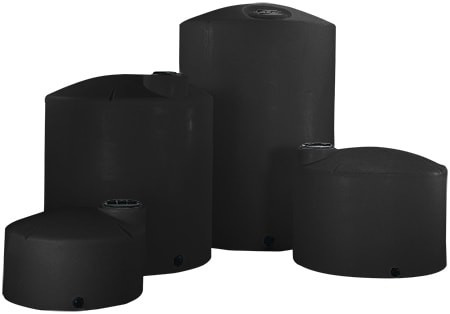

Norwesco 2500 Gallon Black Heavy Duty Vertical Storage Tank

Why heavy duty, and why this shape

Full of water this tank holds 20850 lb of liquid; full of a liquid at the 1.9 rating limit it holds about 39620 lb. The heavy duty wall is built for the second figure, which is why it is the tank for liquid fertilizer, dense treatment chemicals and anything else heavier than water, and the one to buy when the tank cycles full and empty often or the 5 year warranty matters. The 79 inch height is what gets it under a barn eave, a lean-to or a low shop ceiling, and lets you fill and inspect it from a short step. The trade is a 102 inch footprint: over eight feet of flat, level, continuous floor sized for the full weight, which means an engineered slab. Our pad sizing framework for above ground polyethylene tanks covers thickness and margin. For a fire reserve see our article on reservoirs for rural and remote sites; for several tanks holding liquid at different qualities, the reuse topology write-up. Check the volume with the tank sizing calculator and the tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the sidewall. A 2 inch ball valve, camlock or hose adapter threads straight in. Dry-fit it facing the pipe run, tighten, and support the valve and the first length of pipe on their own so the fitting carries liquid, not hardware.
2. Manway. A 16 inch threaded vented manway on top for the fill line, a float switch and a cleaning brush. Keep the vent clear so the tank breathes as the level moves.
3. Liquid and temperature. At or below 1.9 specific gravity and at or below 120 F. Check anything other than water against polyethylene before the first fill.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height and the manway position.

Sizes and versions nearby

Same heavy duty tank in blue, where you want to read the level through the wall: the 2500 gallon blue heavy duty tank, 42384. If water is the load and the 1.5 rating is enough, the standard builds on this footprint are the 2500 gallon black vertical tank, 42382B and the 2500 gallon white vertical tank, 42382. Norwesco also builds a 2500 gallon heavy duty tank in a second mould, the 2500 gallon black heavy duty tank, 40052B and its blue twin 40052; compare the drawings if your spot has a limit. A step up in the heavy duty line is the 3000 gallon black heavy duty tank, 40755B. The colour swatches above the price switch between the versions of this tank.

Shipping and receiving

The tank ships LTL at freight class 400, upright, 102 by 102 by 79 inches and 380 lb, from Norwesco's Hanford, California or Merced, California plant, whichever is nearer. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. A tank this wide wants a forklift or a loader with straps at the stop; without one, plan on four people. At the tailgate, check the part number 42384B against the bill of lading, look over the wall and the bottom edge for transit damage, and fill it with water the first time before anything heavier goes in.

Questions before you order? Call 866-418-1777.
