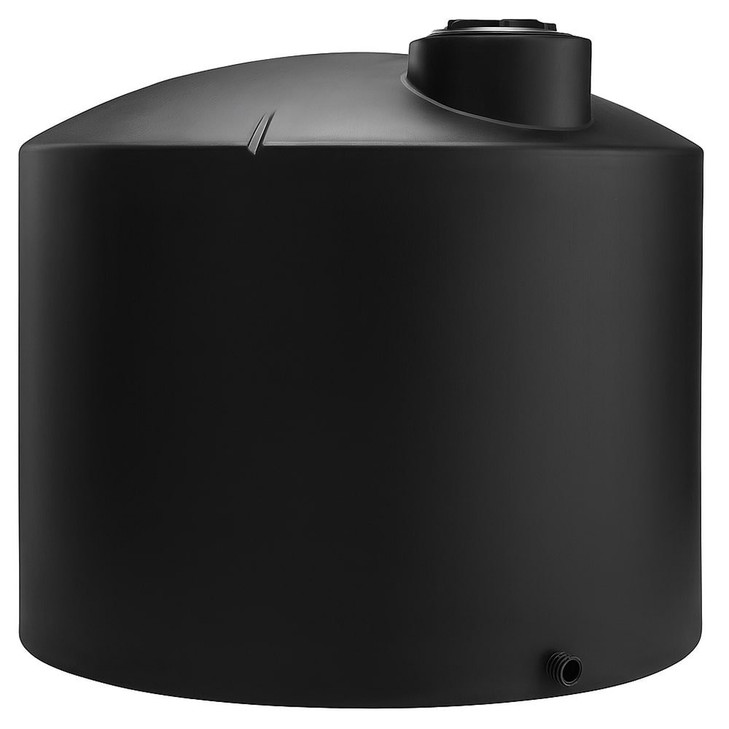

A 3000 gallon black heavy duty vertical tank on a 95 inch base
The Norwesco 3000 gallon black heavy duty vertical storage tank, part number 40755B, is a rotomolded polyethylene tank 95 inches in diameter and 109 inches tall, weighing 518 lb empty. It is Norwesco's heavy duty wall, rated for liquids up to 1.9 specific gravity, which takes in water, every common liquid fertilizer and most of the chemical solutions polyethylene handles; 3000 gallons of water weighs 25020 lb, and at the full 1.9 rating the contents can reach 47538 lb. It comes with a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer as the outlet and a 16 inch threaded vented manway on top. The resin is FDA compliant per Norwesco, Norwesco lists its water tanks under NSF/ANSI 61 (the listing names no models), the service limit is 120 F, and Norwesco backs the heavy duty tank with a 5 year warranty. Black keeps light out of the contents, which slows algae in water and protects light sensitive liquids.
Heavy duty or standard wall? Call 866-418-1777 with the liquid you are storing, or get freight to your ZIP and add it to your cart above.
Where it goes and what it holds
Three thousand gallons is the size where a tank stops being a household item and becomes plant equipment: a fertilizer storage tank at a farm or an applicator yard, a chemical bulk tank behind a treatment building, a brine or process water tank at a shop. The heavy duty wall is what makes this tank right for those loads; liquids denser than water put more hoop stress on the wall near the base, and the 1.9 rating is built for it. For plain water storage the standard wall tank in the same mould does the job for less. Check the liquid in our chemical compatibility guide before the first fill and keep it under 120 F. At 95 inches across and 109 tall, the tank needs a flat, continuous, level pad under the entire base and clear height above the manway; a full tank is more than twelve tons of water, so our guide to concrete pad sizing for above ground polyethylene tanks is the place to start. If the tank is a fire reserve, our guide to fire water reservoir design for rural and remote sites covers sizing and freeze protection. For the volume itself, use the tank sizing calculator and tank sizing guide.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall, with a 2 inch reducer so the same fitting takes either a 3 inch or a 2 inch line. Pick the line size from the pump or the fill rate you need, then thread the valve straight in. Support the valve and the first length of pipe within a foot of the wall so the fitting carries liquid, not hardware.
- Manway. A 16 inch threaded vented manway on top for filling, a float or level sensor, and cleaning access. Leave the vent clear so air can move as the level changes.
- Extra ports. Only the one outlet comes installed. A recirculation return, a second draw or an overflow means extra bulkhead fittings; tell us when you order and we quote them with the tank.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet height, the manway position and the base profile.
Sizes nearby
The same heavy duty wall in light blue is the 3000 gallon blue heavy duty vertical tank. The standard 1.5 wall comes as the 3000 gallon black vertical tank or in white as the 3000 gallon white vertical tank. Norwesco makes other 3000 gallon moulds on different bases: the 3000 gallon black heavy duty vertical tank 42380B, the 3000 gallon black vertical tank 45253 and the 3000 gallon black vertical tank 45260; compare the diameters on their pages against your pad. Nearby sizes: the 2500 gallon light blue heavy duty vertical tank below it, and the 3450 gallon vertical tank above it. The colour and wall swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL at freight class 400 from the nearest of Norwesco's plants, which for this tank include Burnet and Fairfield, Texas; Griffin, Georgia; Hanford, California; Lancaster, Ohio; Owego, New York; Shawnee, Oklahoma; Sheldon, Iowa; St. Bonifacius, Minnesota; Tooele, Utah; and Washougal, Washington, as a 95 by 95 by 109 inch load weighing 518 lb. It needs a forklift with long forks, a loader with straps or several people and a clear path to the pad. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 40755B on the bill of lading, look over the base and the outlet fitting for transit damage, and fill with water the first time before the tank carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: St. Bonifacius, MN; Lancaster, OH; Griffin, GA; Shawnee, OK; Tooele, UT; Owego, NY; Washougal, WA; Sheldon, IA; Burnet, TX; Hanford, CA; Fairfield, TX. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40755B.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
