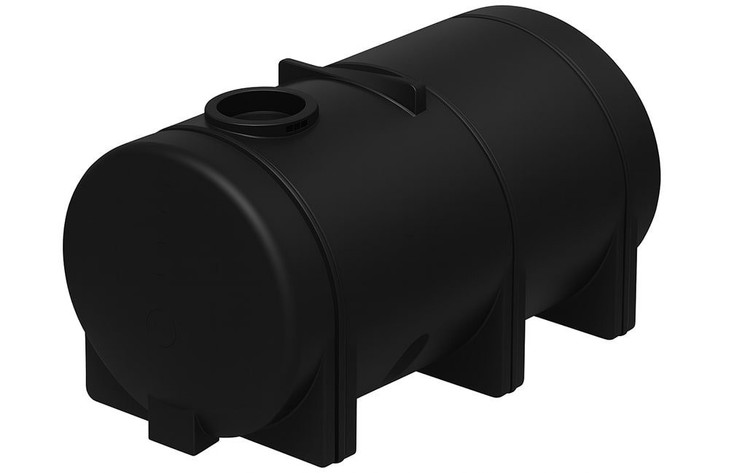

Norwesco 2650 Gallon Elliptical Leg Tank in Black with Baffles

On the trailer

Baffles are the reason to buy this tank over a plain leg tank of the same size. A half full tank of liquid with nothing inside it moves as one slug: it hits the front wall when you brake and the side wall when you turn, and on a trailer that is a load that steers you. The baffles split that slug into smaller ones that arrive at different times. The tank still needs a deck or a cradle that supports the full length of the moulded legs, straps through the leg recesses that bear on the body and never on the manway, and running gear rated for the liquid you carry: with a 1.9 liquid aboard that is more than twenty tons. Our guide to Norwesco applicator and leg tanks for fertilizer and the DOT non-roadable trailer rules covers how a tank this size is classified on the road.

What goes in it

The 1.9 rating is what sets this tank apart: liquid fertilizers, brines and the heavy treatment chemicals that a 1.5 tank cannot carry are inside its range. Check the liquid in our chemical compatibility guide before the first load; the entries for urea solution, calcium chloride, phosphoric acid, sulfuric acid and sodium hypochlorite are the ones buyers of heavy duty leg tanks ask about most. Black keeps light out of the load. For the volume, use the tank sizing calculator and tank sizing guide.

Openings and fittings

1. Outlet. A 3 inch polypropylene female NPT bulkhead fitting with a siphon tube, factory installed, supplied with a 2 inch reducer. The siphon tube draws from the floor of the tank, so it empties nearly dry; run the outlet at 3 inches for fast unloading or thread the reducer in for 2 inch hose. Support the valve and the first length of hose so the fitting carries liquid, not hardware.
2. Manway. A 22 inch hinged lockable manway on top: wide enough to fill from a pump, to inspect the baffles, and to get inside the tank to clean it.
3. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet and manway positions and the leg layout for cradle and strap planning.

Sizes nearby

Same baffled tank in white, where you want to see the level through the wall: the 2650 gallon white elliptical leg tank with baffles. The same capacity without baffles, for a tank that stays in the yard: the 2650 gallon black elliptical leg tank and the 2650 gallon light blue heavy duty elliptical leg tank. One size up: the 3135 gallon white elliptical leg tank.

Shipping and receiving

The tank ships LTL from the nearest of Norwesco's plants in Fairfield, Texas; Lancaster, Ohio; or St. Bonifacius, Minnesota, as a 122 by 88 by 82 inch load at 1054 lb. That is a flatbed or a tall trailer, not a liftgate, so have a forklift or a loader with wide straps ready, or tell us and we will plan the unload with you. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 45366 on the bill of lading, look at all the legs, the manway hinge and the outlet fitting for transit damage, and fill the tank with water the first time before it carries anything else.

Questions before you order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
