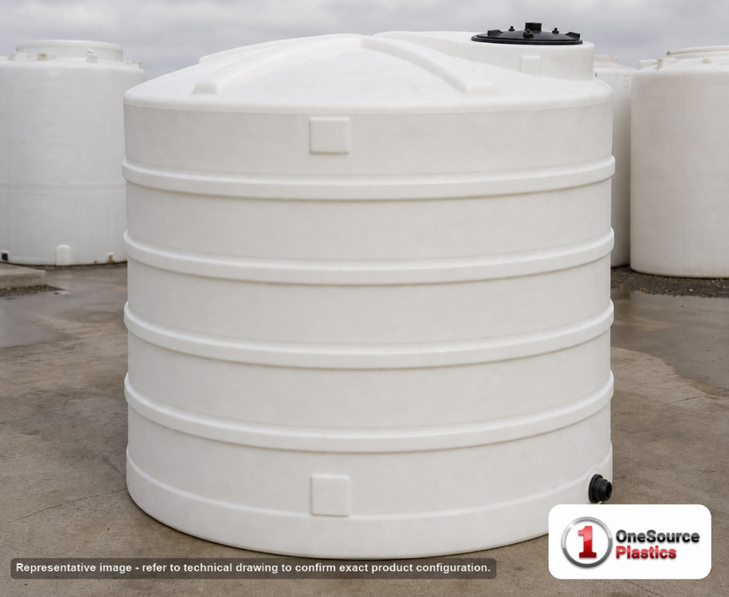

3450 Gallon Vertical Liquid Storage Tank

Ten feet of shell on an eight foot circle

At this size the base is the purchase and the tank is the easy part. Eight feet across and ten feet tall, the shell holds a full tanker delivery with room to spare, and once full it is a concentrated load on a 96 inch circle. Build the pad for continuous contact across the whole circle: a poured slab checked level with an instrument, a steel deck plate, or a compacted and screeded bed that will stay put through a wet season. The concrete pad sizing guide sets out how to size and detail it. Then think about the height: measure the clear height at the final position and at the lowest obstruction on the path in, plan a ladder for the manway, and strap the tank to a wall, a frame or ground anchors before the first fill. The buyer's guide to this tank covers siting and plumbing in order. Tanks of this size often stand as a private fire reserve or a water reuse buffer; our guides to fire water reservoir design for rural sites and industrial water reuse tank layouts cover both. For the volume itself, use the tank sizing calculator and the tank sizing guide.

Openings, fittings and the pad

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting with a siphon tube. The tube reaches down inside the tank so the outlet draws from near the floor while the fitting itself sits higher in the wall, above the level where sediment collects. Your valve or camlock threads into the fitting; support the first length of pipe on its own.
2. Manway. A 16 inch threaded vented manway on top for the fill hose, a float and cleaning. Leave the vent open.
3. The pad. Continuous, level contact across the whole 96 inch circle. No rails, no pallet, no timber packed under one side. A slight fall away keeps the tank out of its own overflow; leave room to reach the outlet with two hands and a wrench.
4. The liquid. Up to 1.5 specific gravity and 120 F. Heavier liquids need the 1.9 rated heavy duty version linked below.

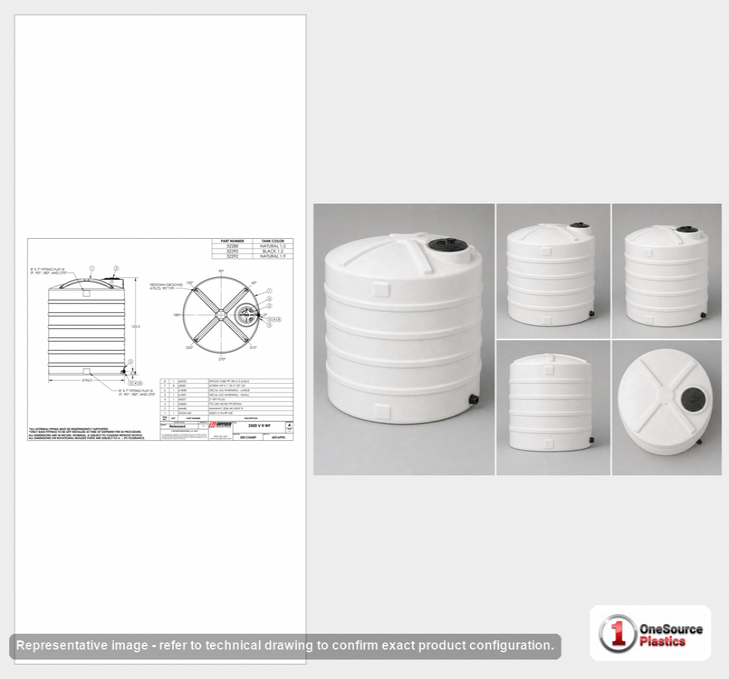

5. Drawing. Norwesco's drawing is linked under Technical Drawing on this page and gives the outlet height, siphon tube and manway position.

Sizes and versions nearby

Same capacity rated to 1.9 specific gravity, for heavier liquids: the 3450 gallon heavy duty vertical tank. One step down: the 3000 gallon black heavy duty tank. One step up: the 3600 gallon black vertical tank.

Shipping and receiving

The tank is an oversize LTL load, 96 inches across and 120 inches long lying down on the trailer, 505 lb as shipped, from Norwesco's Fairfield, Texas plant, which makes Texas and the states around it the short lane. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, or request a written quote for a job that needs paperwork. A ten foot shell needs an approach, a gate and a set-down spot to match; tell us if the yard is tight. At the tailgate, check the part number 44668 on the bill of lading, look over the shell for transit damage before the driver leaves, stand it with the outlet toward the pipe run, and fill it with water the first time.

Questions before you order? Call 866-418-1777.
