A 5,000 gallon black heavy duty vertical tank for the heavy liquids

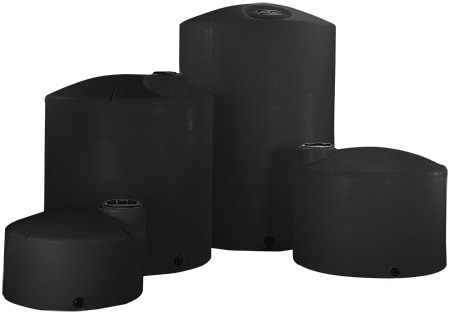

The Norwesco 5,000 gallon black heavy duty vertical storage tank, part number 40166B, is a polyethylene tank 102 inches across and 152 inches tall, weighing 1,131 lb empty. The heavy duty rating of 1.9 specific gravity means it is built for liquids up to 1.9 times the weight of water: fertilizers, brines, and most treatment and process chemicals, as well as water itself, which weighs 41,700 lb at this volume. It comes with a 3 inch polypropylene female NPT bulkhead fitting with a 2 inch reducer as the outlet and a 16 inch threaded vented manway on top. The resin is FDA compliant, Norwesco lists the tank as NSF 61, the service limit is 120 F, and this heavy duty tank carries Norwesco's 5 year warranty. Black keeps light out of the contents.
Two ways to buy. Request a written quote for a project, or get freight to your ZIP and add it to your cart above. Questions: 866-418-1777.
The pad comes first
Full, this tank puts over 20 tons, and up to 79,000 lb at the 1.9 rating, on a circle 102 inches across. The pad is not an afterthought: it has to be flat, level, continuous under the whole base and designed for that load. Our concrete pad sizing guide for above ground polyethylene tanks works through it with the ACI framework. Allow headroom: 152 inches of shell plus the manway is just under 13 feet, and someone has to reach the manway from a ladder or a platform. Leave a clear walkway all the way round; the side of a tank nobody can see is the side that leaks. For the volume decision, use the tank sizing calculator and tank sizing guide.
What it is used for
At this size and rating the tank is bulk storage: fertilizer at a dealer or a farm, brine or treatment chemical at a plant, process water held for reuse, or a fire water reserve. Our fire water reservoir design guide covers NFPA 22 sizing and freeze protection for rural sites; the industrial water reuse tank topology piece places a bulk tank in a reuse train; and for rain collection the first flush diverter sizing guide covers the inlet side. Check any chemical against polyethylene before it goes in; ask us if it is not in our compatibility guide.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall, supplied with a 2 inch reducer so you can plumb it at either size. Use the full 3 inches for gravity draining or a large pump; use the reducer for a 2 inch valve and hose.
- Manway. A 16 inch threaded vented manway on top for filling, a float or level sensor, and access for cleaning.
- Extra ports. Returns, overflows and gauge taps are bulkhead fittings added at flat areas of the wall. Tell us what you need and we put them on the same order.
- Drawing. Norwesco's drawing for this tank is linked under Technical Drawing on this page, with the outlet and manway positions and the overall dimensions for the pad.
Anything bolted to the wall, pipe, valve or sensor, is supported on its own frame. The tank holds liquid, not hardware.
Shipping and receiving
The tank ships LTL at freight class 300 from the nearest of Norwesco's plants, 102 by 102 by 152 inches: this is a flatbed or a tall van, and a tank this size is unloaded with a forklift from the base or with slings under the body, never by the manway or the fitting. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP, and for a project a written quote includes it. Have the pad finished and the unloading equipment booked for the delivery window. Fill with water the first time, in daylight, with someone watching the base and the outlet.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA; Merced, CA; Griffin, GA; St. Bonifacius, MN; Owego, NY; Lancaster, OH; Shawnee, OK; Fairfield, TX; Tooele, UT; Washougal, WA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40166B.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
