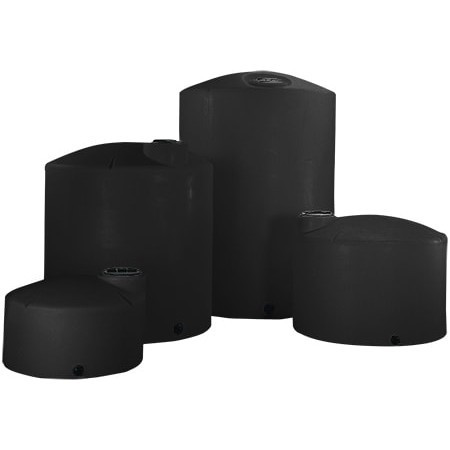

A 4995 gallon black heavy duty vertical tank with a 22 inch manway
The Norwesco 4995 gallon black heavy duty vertical storage tank, part number 44824B, is a rotomolded polyethylene tank 142 inches in diameter and 89 inches tall, weighing 969 lb empty. It is a low, wide tank built in Norwesco's heavy duty wall, rated for liquids up to 1.9 specific gravity, which takes in water, every common liquid fertilizer and most of the chemical solutions polyethylene handles; 4995 gallons of water weighs 41658 lb, and at the full 1.9 rating the contents can reach 79151 lb. It comes with a 3 inch polypropylene female NPT bulkhead fitting with a siphon tube as the outlet and a 22 inch threaded vented manway on top, larger than the manway on most tanks this size. The resin is FDA compliant per Norwesco, Norwesco lists the tank as NSF 61, the service limit is 120 F, and Norwesco backs the heavy duty tank with a 5 year warranty. Black keeps light out of the contents and slows algae in stored water.
Need the big manway or the low height? Get freight to your ZIP and add it to your cart above, or call 866-418-1777 with the site and the liquid.
Where it goes and what it holds
This is a tank for a site with a height limit and a reason to get inside it: a fertilizer or chemical bulk tank under a canopy, a brine tank at a water plant, a process tank in a block building, or a rainwater cistern behind a commercial roof. The 22 inch manway is the difference from most tanks this size. It takes a larger float valve or a submersible pump, passes a mixer shaft, and lets a person with the right confined space precautions reach well inside for cleaning. At 89 inches the top of the tank is a little over seven feet up, within reach from a short step. The heavy duty wall is for liquids denser than water; for plain water the standard wall tank in the same mould costs less. Check the liquid in our chemical compatibility guide before the first fill and keep it under 120 F. A full tank is more than twenty tons spread over a circle nearly twelve feet across, so the pad has to be flat, continuous and level under the whole base; our guide to concrete pad sizing for above ground polyethylene tanks sets out the slab. If rainwater is the plan, our note on first flush diverter sizing for rainwater harvesting explains what goes ahead of the inlet, and the industrial water reuse storage guide covers larger reuse trains. For the volume itself, use the tank sizing calculator and tank sizing guide.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting with a siphon tube, factory installed. The siphon tube reaches down inside the tank so the fitting can sit above the floor and still draw from near the bottom; Norwesco's drawing shows the fitting height and the tube. Your valve or pump suction threads straight into the 3 inch female thread. Support the valve and the first length of pipe within a foot of the wall so the fitting carries liquid, not hardware.
- Manway. A 22 inch threaded vented manway on top. Leave the vent clear so air can move as the level changes, and keep the lid on; a 22 inch opening is big enough to be a fall hazard for a child or an animal.
- Extra ports. Only the one outlet comes installed. A recirculation return, a second draw or an overflow means extra bulkhead fittings; tell us when you order and we quote them with the tank.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the outlet position, the manway and the base profile.
Sizes nearby

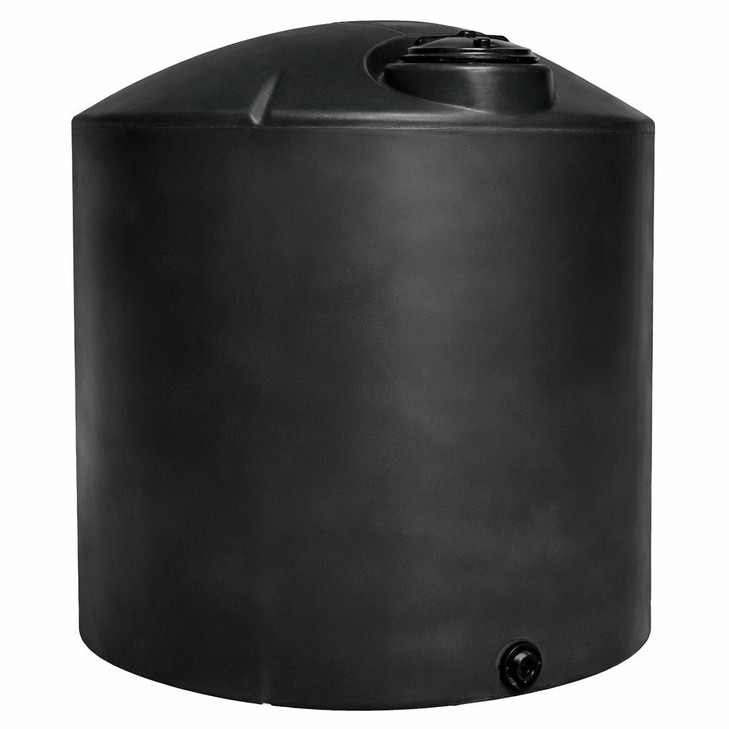

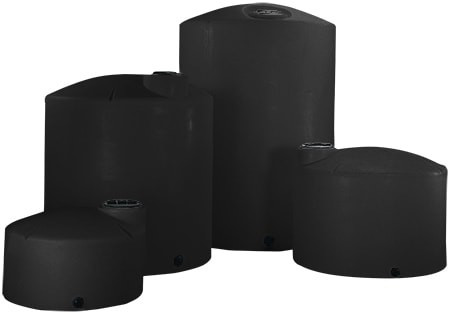

The same heavy duty wall in light blue is the 4995 gallon light blue heavy duty vertical tank. The standard 1.5 wall in this mould comes as the 4995 gallon black vertical tank or in white as the 4995 gallon white vertical tank. Nearby sizes: the 4200 gallon black vertical tank below it and the 5000 gallon black vertical tank, a different mould; compare its diameter and height on its page against your site. The colour and wall swatches above the price switch between the versions of this tank.
Shipping and receiving
The tank ships LTL at freight class 400 from Norwesco's Fairfield, Texas plant as a 142 by 142 by 89 inch load weighing 969 lb. A tank this wide travels on a flatbed and needs a forklift with long forks, a loader with straps or a crew and a clear path to the pad; plan the unloading before the truck is booked. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the tailgate, check the part number against 44824B on the bill of lading, look over the base, the outlet fitting and the siphon tube for transit damage, and fill with water the first time before the tank carries anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Fairfield, TX. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 44824B.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
