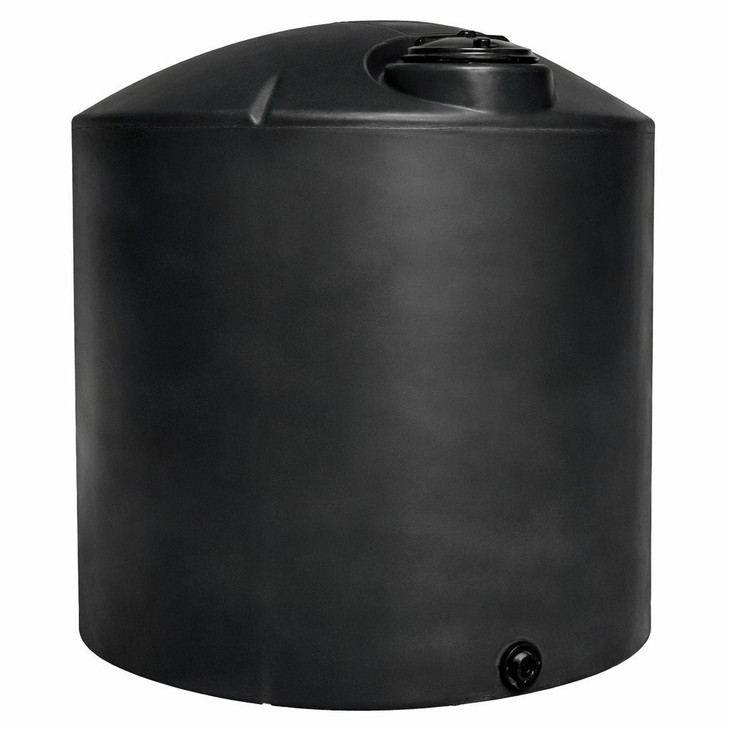

A 5000 gallon black vertical tank for water storage that stays clean
The Norwesco 5000 gallon black vertical storage tank, part number 40164B, is a flat bottom polyethylene tank 102 inches in diameter and 152 inches tall, weighing 986 lb empty. It is the workhorse size for a ranch, a rural home, a nursery, a construction site or a rainwater system: large enough to carry a household or a herd through a dry spell, small enough to ship LTL and stand on a modest pad. It comes with a 3 inch polypropylene female NPT bulkhead fitting as the outlet, fitted with a 2 inch reducer, and a 16 inch threaded vented manway on top. Norwesco rates it for liquids up to 1.5 specific gravity, which covers water, most liquid fertilizers and many common chemicals; 5000 gallons of water weighs 41700 lb. The resin is FDA compliant per Norwesco, Norwesco lists the tank as NSF 61, the service limit is 120 F, and Norwesco backs it with a 3 year warranty. Black is the colour for stored water: it keeps light out, and without light, algae does not grow.
Is 5000 gallons the right size? Get freight to your ZIP and add it to your cart above, call 866-418-1777 with the use and the site, or request a written quote.
Where it goes
On a pad. A flat bottom tank needs a flat, continuous, level surface the full 102 inches across, with nothing under the base but concrete or compacted fines; a tank set on a few blocks or on a pad with a drain under it carries its weight on part of the base and the wall pays for it. Our guide to concrete pad sizing for above ground polyethylene tanks covers the design. For rainwater, the tank is the store at the end of the collection system; our note on first flush diverter sizing covers the part that keeps the roof washings out of it. For a fire reserve, see fire water reservoir design for rural and remote sites, and for grey water or condensate reuse, industrial water reuse tank topology. For the volume itself, use the tank sizing calculator and tank sizing guide.
Openings and fittings
- Outlet. A 3 inch polypropylene female NPT bulkhead fitting low in the side wall, with a 2 inch reducer: run 3 inch pipe for a pump or a gravity feed that needs volume, or 2 inch off the reducer for a garden or stock line. Put a valve directly on the fitting, support the pipe on its own within the first few feet, and use a flexible connection to rigid pipe, because a full polyethylene tank grows a little and a rigid line fights it.
- Manway. A 16 inch threaded vented manway on top, large enough to fill from a hose or a hauler's pipe, to drop a float valve or a level sensor in, and to get an arm and a brush inside. The vent lets air in and out as the level moves; do not seal it.
- The liquid. Water is the normal load. Polyethylene also handles most fertilizers and many common chemicals; confirm anything other than water against the material and keep its specific gravity under 1.5. Liquids heavier than that need the heavy duty version of this tank.
- Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, gives the outlet height, the manway position and the overall height for the pad and the pipework.
Shipping and receiving
The tank ships LTL at freight class 300 from the nearest of Norwesco's plants; this size is made in Fairfield, Texas, Griffin, Georgia, Hanford and Merced, California, Lancaster, Ohio, Owego, New York, Shawnee, Oklahoma, St. Bonifacius, Minnesota, Tooele, Utah, and Washougal, Washington, so the lane is usually short. At 102 inches across and 152 inches tall it travels on a flatbed and needs a loader or several people at the site to stand it on the pad. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. Have the pad finished before the truck arrives. At delivery, check the part number against 40164B on the bill of lading, walk round the wall and look at the base for transit damage, and fill it with water the first time before it holds anything else.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA; Merced, CA; Griffin, GA; St. Bonifacius, MN; Owego, NY; Lancaster, OH; Shawnee, OK; Fairfield, TX; Tooele, UT; Washougal, WA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 40164B.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
