5000 Gallon Black Plastic Water Storage Tank

A tall tank for a narrow pad

This is the tall way to hold 5000 gallons: a 102 inch circle, the footprint of a much smaller tank, carried up to 152 inches. It is the shape to buy when the pad is already poured, the yard is tight, or the extra height is wanted for gravity head to a trough or a hose bib. The wider, lower 5000 gallon shell is the alternative when height is the problem; our complete buyers guide to this 102 by 152 inch tank and the guide to the 119 by 112 inch version set the two side by side. Buyers at this size are a household or small operation that wants a week of supply in one place, an irrigation block on a slow well, a stock operation, and a private fire reserve; the fire water reservoir guide for rural and remote sites covers the draft connection, sizing and freeze protection.

Full, the tank stands 41,700 lb of water on a 102 inch circle, and at twelve and a half feet tall it is a foundation question, not a pad question. The base must be flat, level and continuous under the whole floor, built out past the rim, drained so nothing can wash out an edge, and designed for the actual bearing capacity of your ground; our concrete pad sizing guide for above ground polyethylene tanks sets out the method and the line where a slab becomes an engineered design. The manway is a fixed ladder job, not a step ladder job, so plan the access with the pad. Strap or band the empty tank the day it lands; a tall empty shell is a sail. Leave a working circle all round. Then run 5000 gallons against your real draw and refill interval in the tank sizing calculator and take the reserve and freeboard allowances from the tank sizing guide.

Openings and fittings

1. Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the wall. With twelve feet of water above it, the outlet valve and the first length of pipe need their own support; the fitting carries water, not hardware.
2. Inlet. A 1-1/2 inch polypropylene female NPT bulkhead fitting for the fill line.
3. Manway. A 16 inch threaded vented manway on top for filling, a float switch, inspection and cleaning. The vent lets the tank breathe; never plug it.
4. Drawing. Norwesco's drawing for this tank, linked under Technical Drawing on this page, shows the inlet and outlet positions for laying out the pipe before delivery.

Sizes and colours nearby

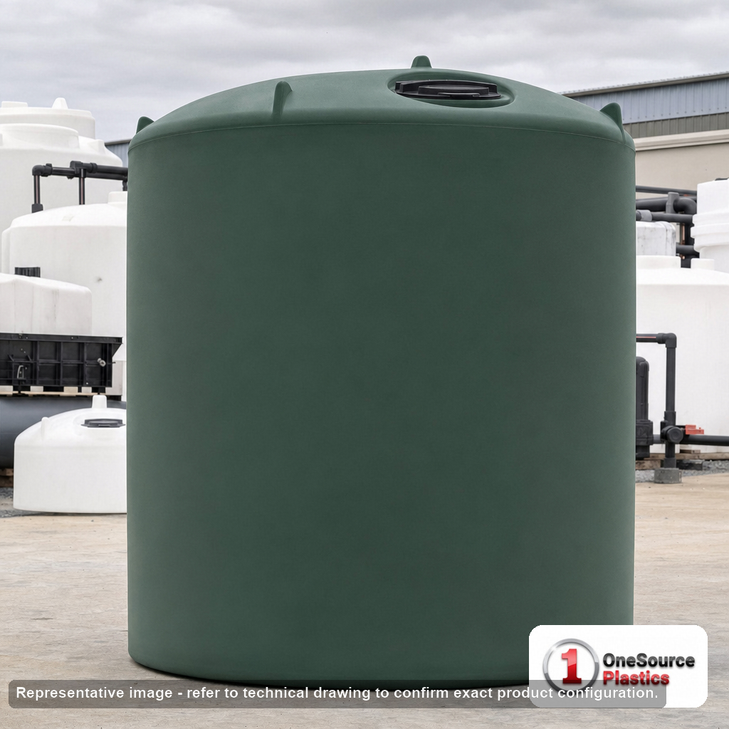

The same capacity in dark green: the 5000 gallon dark green vertical water tank. For California buyers there are two: the 5000 gallon green California only tank, part 41377 and the 5000 gallon green California only tank, part 42043. Just below it, the 4995 gallon dark green vertical water tank; the next step up is the 6500 gallon green California only vertical water tank.

Shipping and receiving

The tank ships as oversize LTL freight from the nearest of Norwesco's plants, travelling on its side at 152 by 102 by 102 inches and 845 lb. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. This is a forklift or telehandler unload, not a two person job, and the site needs overhead clearance to stand the tank up. Check the part number against 40641 on the bill of lading, walk the whole shell for transit damage before signing, and fill it with water the first time.

Questions before you order? Call 866-418-1777.
