A 150 gallon crosslinked double wall tank for small contained feeds

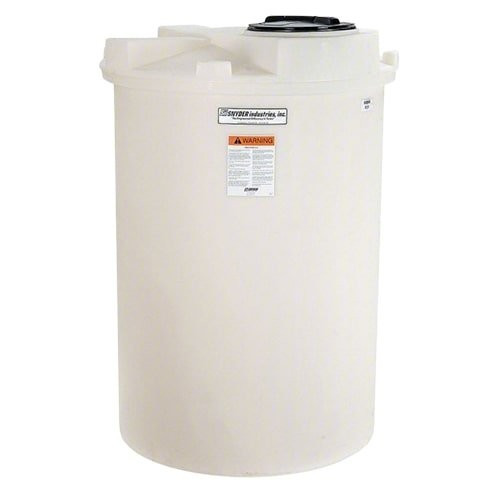

Snyder part number 5710102N42 is a 150 gallon double wall tank moulded in natural white crosslinked linear polyethylene, an inner tank inside an outer containment shell so the tank is its own secondary containment. It is 34 inches in diameter, 62 inches tall and weighs 110 lb empty. On top is a 14 inch threaded vented lid. The wall is rated for liquids up to 1.9 specific gravity with a service limit of 140 F (60 C). 150 gallons of water weighs 1,251 lb; at the full 1.9 rating the contents can weigh 2,377 lb. Snyder backs it with a 3 year warranty.
Sizing a dosing tank? Call 866-418-1777 with the chemical, its strength and your daily feed, or get freight to your ZIP and add it to your cart above.
Where it goes
A 150 gallon contained tank is the small end of chemical feed: a dosing pump on a well, a treatment skid, a lab or a shop that needs a few drums' worth of liquid kept off the floor drain. The slim 34 inch body fits tight rooms and sits beside a pump stand without crowding it. The 1.9 rating covers liquids nearly twice the weight of water, and the 140 F limit gives headroom for liquids that run warm.
At 34 inches across it is close to the clear width of a standard door, so measure the opening, frame to frame, before it arrives. The lid at 62 inches is within easy reach. Give it a flat, level base able to carry about 2,377 lb at the full rating; a tall narrow tank on an uneven floor leans, and a lean only gets worse as it fills.
Usable volume in a contained tank is less than the nameplate once freeboard and expansion are allowed for; the Snyder double wall freeboard sizing guide shows the arithmetic. Our headspace wall thickness guide explains why inspections should look above the liquid line, and the fire water reservoir design guide covers freeze protection for tanks outdoors. The tank sizing calculator and tank sizing guide help pick the volume.
Openings, and what to confirm before you buy
- Lid. A 14 inch threaded vented lid on top, wide enough to fill from a drum pump or a hose and to drop in a suction tube. It is also the vent, so do not seal it airtight.
- Outlet. No outlet or fitting is listed on this product. If your pump draws through the lid, you may not need one; if you want a bottom outlet, tell us the size and we will confirm with Snyder what this part number carries.
- The liquid. Check it in our chemical compatibility guide and give us the concentration.
- The space between the walls. No leak detection is listed with the tank. Set a schedule for checking it. Snyder's drawing is linked under Technical Drawing on this page.
Other 150 gallon versions, and the sizes either side
The 150 gallon double wall size also comes as the 150 gallon HDPE double wall tank 5710102N45, the 150 gallon XLPE black double wall tank 5710102N48 and the 150 gallon sulfuric acid double wall tank 5710102N30; each page states its own rating. Smaller: the 120 gallon XLPE double wall tank 5700102N42. Larger: the 250 gallon XLPE double wall tank 5990502N42.
Shipping and receiving
The tank ships LTL at freight class 250 from Snyder's Marked Tree, Arkansas plant, 34 by 34 by 62 inches on a pallet at 110 lb. Two people can carry it once it is off the truck. At the tailgate, check the bill of lading against 5710102N42, look over the outer wall and the lid threads, and note any damage before you sign. Fill it with water first, check the base and the lid, then drain and dry it before the chemical goes in.
Ready to order? Add it to your cart at the top of this page, get LTL freight to your ZIP, or call 866-418-1777. The listed price is before freight.
Freight and documents
Ships from: Marked Tree, AR. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Snyder Industries 5710102N42.
See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
