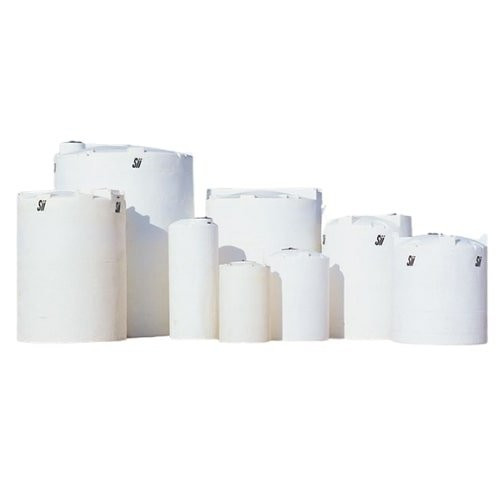

Snyder Industries 15000 Gallon Vertical Storage Tank

Sixty-two tons of water, and the pad and cables that hold it

Full of water this tank weighs 125,100 pounds, sixty-two tons, and at the rating 187,650, all of it on a 165 inch circle, because a rotationally molded floor bears on the whole pad and nothing else. Start there. The slab is engineered to the concrete pad sizing guide, level and in full contact, because a fourteen foot tank on a slab with a low corner puts its weight on that corner and works the outlet every time the level moves. Then the roof. At 184 inches to the manway this is the 15,000 that fits under a sixteen foot eave or inside a bay, with room for the vent line, where the tall 15,000 needs nearly twenty feet of clear height. Then the wind. Fifteen feet of empty white polyethylene on a fourteen foot base is a sail in the open, so cables to structure or to deadmen go on before the first fill and are checked after the first windy week and the first hot summer, because polyethylene grows in the sun and the cable that was tight in spring is loose in August. The white wall shows the level in daylight, which matters on a water tank that is drawn down and refilled every day; it also passes light, so a light-sensitive chemical belongs in a black tank instead. Whether 15,000 gallons covers the draw between refills is a question for the tank sizing calculator; the reserve to hold back and the headspace a warm liquid needs are in the tank sizing guide.

The wide 15,000 in two walls, and the tall ones

Buy this one when the liquid is water or a solution no denser than 1.5 and the roof is the limit. The 3030100C26 is the same wide shell in the heavy wall, rated as its own sheet says, for acid, ferric and brine at strength. The 5370000C34 and 5370000C37-BLACK are the tall black 15,000s on a 142 inch base at 234 inches for the open yard and a light-sensitive load, each rated as its own sheet says. The 5350000C34 is a black 12,500 at 198 inches on that base, and the 5380000C126 is the 16,500 at 257 inches, listed at 3,000 pounds, which the sheet gives and we print.

Found the 15000 gallon tank in the table? Freight to your ZIP is one click; add it to your cart above, or call 866-418-1777 to check the grade.

A 3 inch bolted outlet for a tank that is drawn down daily

• Outlet: 3 inch polypropylene fitting with stainless steel bolting, at the base. Name the liquid at order and the fitting, gasket and bolting are matched to it; a flanged transition, a flexible connector to hard pipe, and the first valve supported off the pad.
• Access: 24 inch threaded, vented manway, 184 inches up; a platform with a rail for whoever opens it; a dip tube to the floor for the fill; a vent sized to the fastest fill the tank will see, which on a water tank is often the fire pump test, not the tanker.
• Service limit: 120 F / 48 C.

Three inches at the base drains 15,000 gallons in a shift and keeps a transfer or booster pump flooded under fifteen feet of head; on a process-water tank cycled daily, the outlet works harder than on a chemical tank filled by the month, which is why the sheet's stainless-bolted fitting and a flexible connector at the wall matter here. Set the pump below the outlet where gravity primes it, and fit a low-level float so it stops before it draws air. The 24 inch manway lets a person in for cleaning; it stays shut between fills so nothing falls in, and the headspace band gets a light at every opening. Where winters freeze, the valve and the first pipe run get trace heat or insulation, and a tank kept for a reserve gets the freeze-protection measures the fire-water guide below describes.

Process water, reserves and reuse at plant scale

A fire reserve at a rural plant or a remote site, sized and freeze-protected the way the fire-water reservoir design guide lays out; a process-water or rinse-water tank at a food, beverage or finishing plant; a dilute polymer or a fertilizer solution at 1.5 or under. In a reuse system, the industrial water reuse tank topology article puts a tank of this size at the aggregation stage where grey water, rainwater and condensate come together. Where site rules demand a second wall for a chemical, the Captor double wall freeboard guide works out what a contained tank of this size gives up in usable volume.

Permitted load out of Ohio

The 3030100C37 ships from Washington Court House, Ohio as freight at class 300 as the sheet lists it; at 165 inches across and 184 inches long on the deck it is a permitted load, and the freight cost estimator prices the lane to your ZIP, with the listed price before freight. A crane stands 4,400 pounds up with straps under the body, never through the manway; the cables go on before the crane leaves. The acceptance fill is the job here, not a formality: fill it with water to the manway, hold it, watch the pad edge and the outlet fitting, and only then put it into service. Photograph the outlet fitting from below before the pipe goes on, and keep one spare gasket on the shelf, because on a tank cycled daily it is the part that fails first. Check the strap tension a week after the first fill; a tank settles a little, and the strap that was tight is loose.
