A 15500 gallon black heavy duty vertical tank for fertilizer, heavy chemicals and bulk water
The Norwesco 15500 gallon black heavy duty vertical storage tank, part number 43943B, is a rotomolded polyethylene tank 141 inches in diameter and 244 inches tall, weighing 4160 lb empty. Heavy duty means the wall is built for liquids up to 1.9 specific gravity, 1.9 times the weight of water, which is what liquid fertilizers and many concentrated chemicals need; 15500 gallons of water alone weighs 129270 lb, and a 1.9 liquid close to double that. It comes with a 2 inch polypropylene female NPT bulkhead fitting as the outlet and a 22 inch threaded vented manway on top. The resin is FDA compliant per Norwesco, Norwesco lists the tank as NSF 61, the service limit is 120 F, and Norwesco backs the heavy duty tank with a 5 year warranty. Black blocks light, which slows algae in water and protects light sensitive liquids.
Storing fertilizer, a chemical or water? Call 866-418-1777 and tell us the liquid and the site, get freight to your ZIP and add it to your cart above, or request a written quote.
Who buys the heavy duty version
Fertilizer dealers, ag retailers, water treatment plants and chemical users buy the 1.9 tank because the liquid is heavy; a 1.5 tank filled with a 1.9 liquid is overloaded at the bottom of the wall where the pressure is highest. If you are storing water only, the standard duty 15500 gallon tank linked below does the same job for less. Whichever you pick, a tank that holds over sixty tons of liquid lives or dies on its foundation: our slab sizing walkthrough for poly tanks covers the pad. For a fire reserve on a remote property, the remote site reservoir write-up explains how the volume is arrived at; for rainwater, the first flush diverter sizing note covers the inlet side, and the reuse storage topology piece places a bulk tank in a reuse system. Check the volume with the sizing calculator and the sizing guide.
Openings and fittings
- Outlet. A 2 inch polypropylene female NPT bulkhead fitting, factory installed low in the side wall. Your 2 inch valve threads straight in. On a tank this tall, the head pressure at the outlet is high, so use a valve rated for it and support the valve and the first run of pipe independently of the tank wall.
- Manway. A 22 inch threaded vented manway on top for filling, a level sensor and inspection access. The vent breathes as the level changes; keep it clear.
- The liquid. Polyethylene handles water, most fertilizers and many common chemicals, but not everything. Tell us what goes in and we check it against the material before the order ships.
- Height. At 244 inches, a shade over twenty feet, the tank needs that much clearance plus room above for the manway lid and for the lifting gear that sets it. Measure the overhead before you order.
- Drawing. Norwesco's drawing for 43943B, linked under Technical Drawing on this page, gives the outlet height and manway position.
Other versions of this tank, and sizes nearby
The same heavy duty tank in blue: 15500 gallon blue heavy duty vertical tank, 43943. For water and liquids no heavier than 1.5, the standard duty tank comes in white, 43941 and black, 43983. One step down in size is the 15000 gallon black vertical tank, 43821B; the next heavy duty size up is the 20000 gallon black heavy duty vertical tank, 44334. The swatches above the price switch between versions.
Shipping and receiving
The tank ships LTL at freight class 300 from Norwesco's Hanford, California plant, 141 by 141 by 244 inches and 4160 lb. It travels on a flatbed and is set with a crane or a large telehandler, so plan the site access and the lift before the truck is booked. The listed price is before freight; the freight cost estimator gives the lane cost to your ZIP. At the site, check the part number against 43943B on the bill of lading, inspect the whole wall and the outlet fitting for transit damage before the driver leaves, and make the first fill water so any leak shows up with something harmless in the tank.
Questions before you order? Call 866-418-1777.
Freight and documents
Ships from: Hanford, CA. LTL freight is quoted to your ZIP with the freight cost estimator or by phone at 866-418-1777. The listed price is before freight.
Technical drawing (PDF) for Norwesco 43943B.

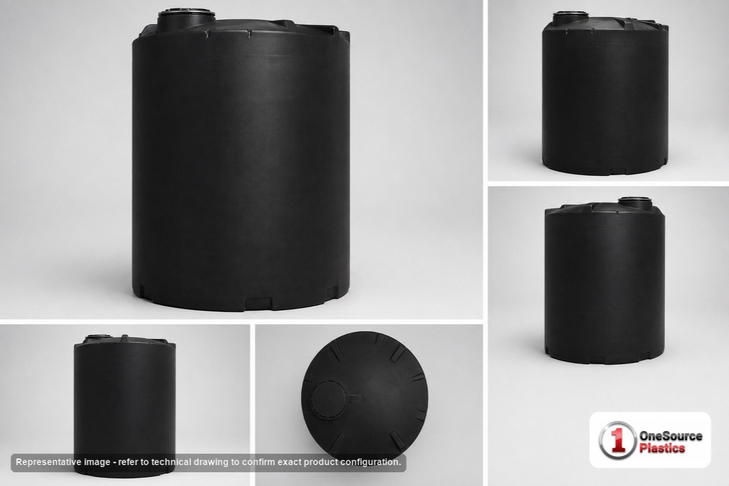

See this tank
Interactive 3D model with live fill. This tank has an interactive 3D model built to its manufacturer dimensions. Rotate it, and set a fill level to see how much liquid it holds at any height. Open the 3D view on the product photo above. Download the 3D model (GLB).
